Technical Tip: DNS Filter Traffic include Username logs on the Captive Portal Authentication

Description



This article describes how to verify the logs with the Username on  DNS Filter Profiles for the Captive Portal Authentication.



Scope



FortiGate.



Solution



Create a Captive Portal on the Lan interface:

Troubleshooting Tip: How to troubleshoot if captive portal not getting triggered in the firewall

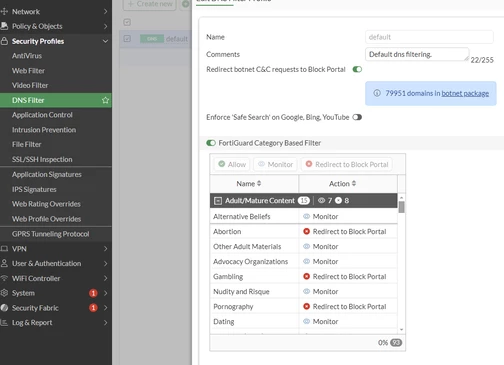

Create a DNS Filter with the customer requirement, and create a User or Usergroup under local or Any Server like Radius or LDAP.




Verify with the image shown below:

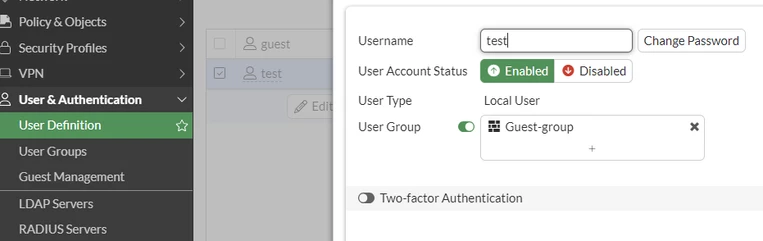

                                DNS2.png:

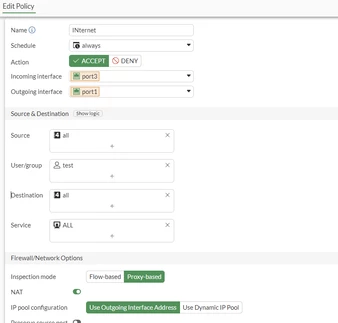

Once configured with DNS Filter, the User/User group is added to the Firewall Policy. The username logs will be only visible when the  User/user group is created under the User&Authentication.

                                   DNS3.png                         DNS-4.png

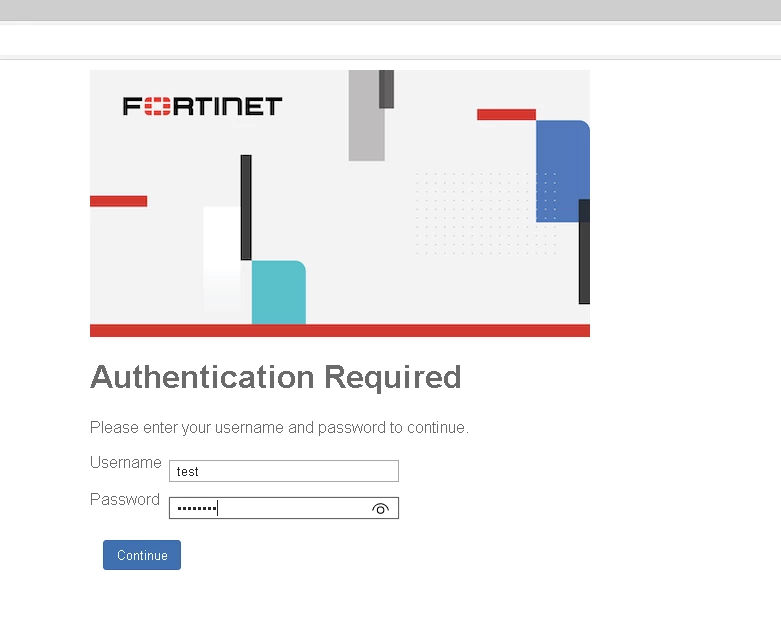

Once, authentication the browser, the traffic logs will be generated with the Username.

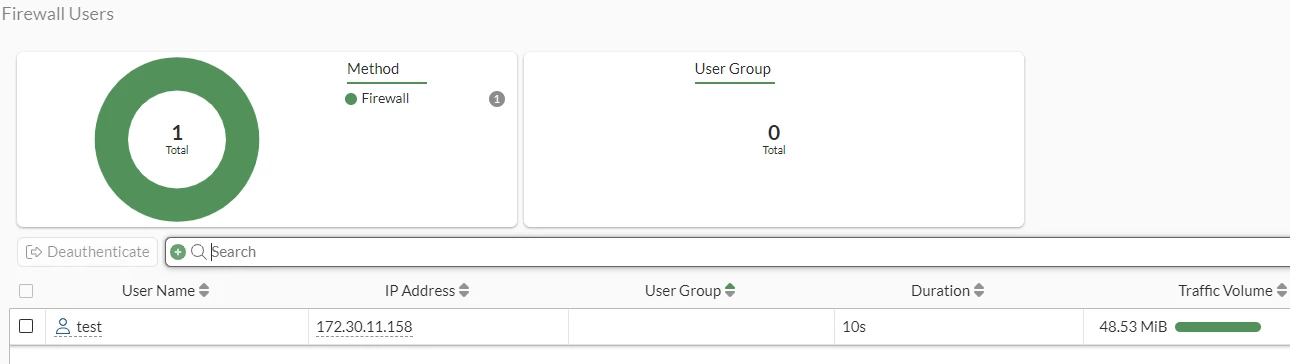

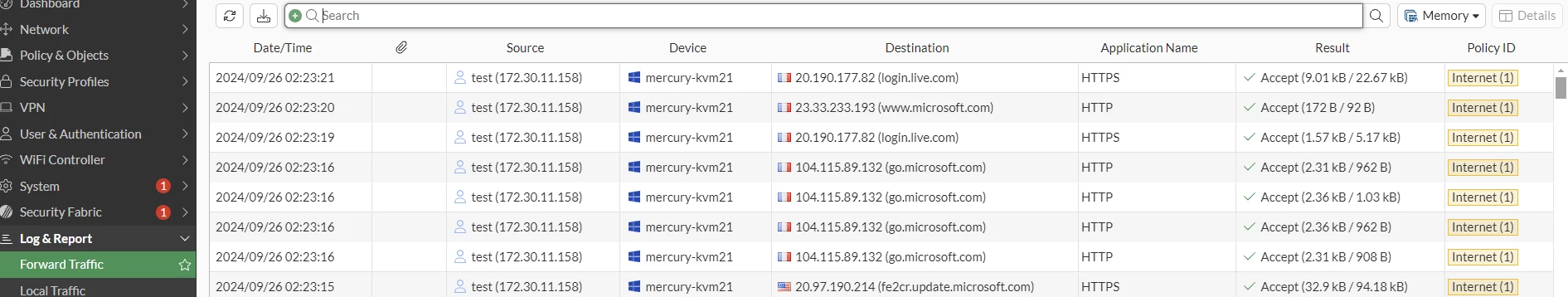

Verify logs under Dashboard -> Firewall Users Monitor, and Forward Traffics logs.











Logs with usernames are visible on the logs & Reports.

Related document:
Include usernames in logs
