Technical Tip: Different methods explained for DNS probe used in SD-WAN performance SLA

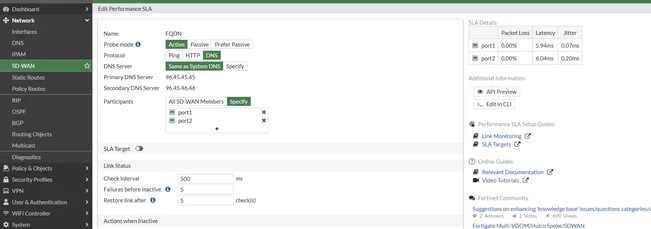

When the DNS is selected as the protocol for the performance SLA, the working is different from the Ping protocol. Considering the below Performance SLA, which uses the DNS method:

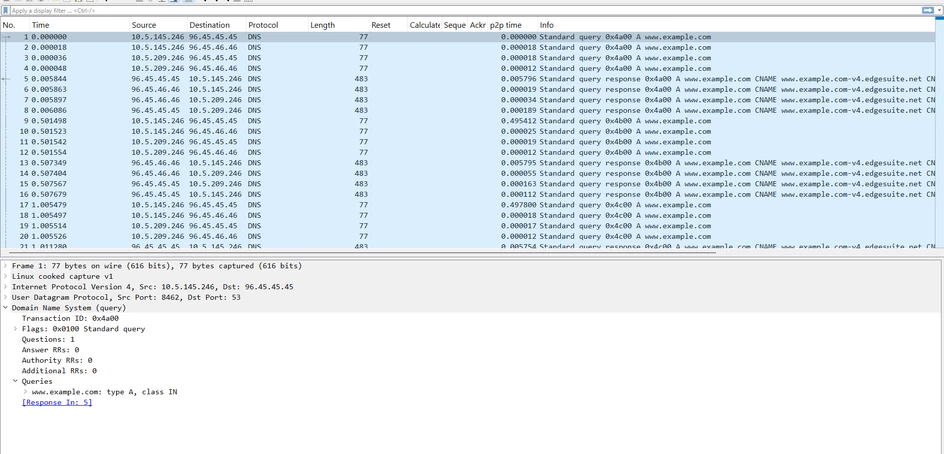

With the above settings, the firewall will send probes with DNS servers configured in Network ->DNS settings. In this case, FortiGuard servers (96.45.45.45 and 96.45.46.46):

The DNS domain probed with the default settings is example.com:

config system sdwan

(sdwan) # config health-check

    edit "FQDN"set probe-packets enable
        set addr-mode ipv4
        set system-dns enable
        set detect-mode active
        set ha-priority 1
        set dns-request-domain "www.example.com"  <----- Default domain to probe.

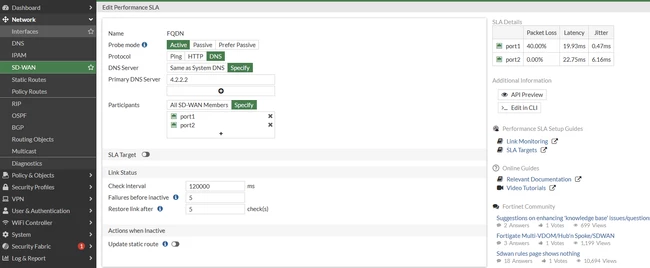

Verify the behavior when  the DNS server is specified to probe instead of the system DNS:

In this case, 4.2.2.2 is specified :

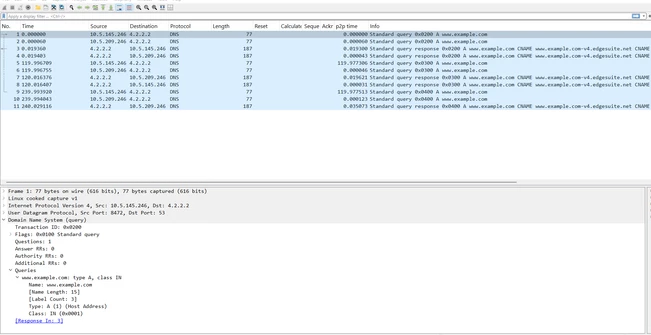

Now the source used to probe the example.com is 4.2.2.2:

The default algorithm to probe the DNS server is least-rtt:

(dns) # set server-select-method
least-rtt Select servers based on least round trip time.
failover Select servers based on the order they are configured.

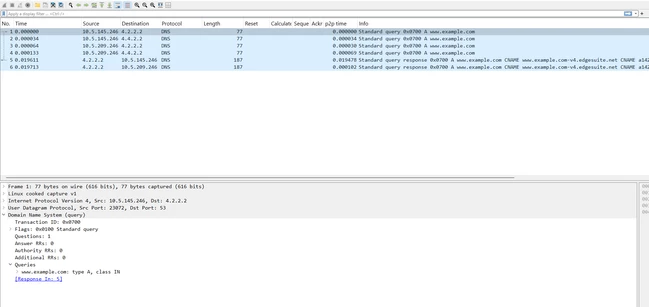

By default, a continuous probe will be sent to the specified DNS servers.

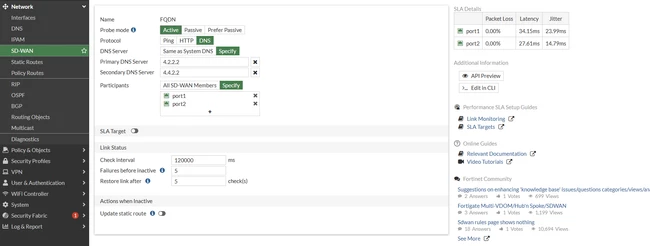

If the mode is changed to failover in DNS settings, the behavior is changed:

(dns) # set server-select-method failover

(dns) # end

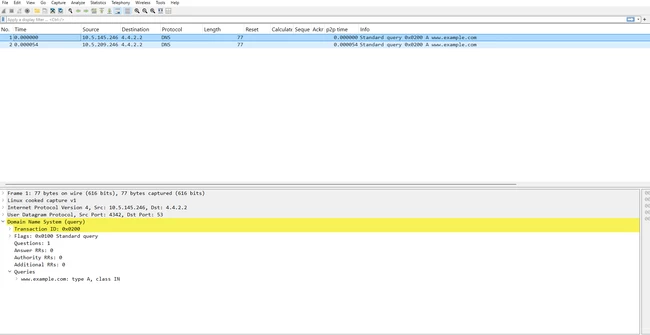

After selecting the Failover method, the probes will be sent to the primary DNS server only:

The probes will only shift to secondary DNS(4.4.2.2) if the primary goes down:

Also, it is possible to change the domain being probed, as mentioned in the article below:

Technical Tip: DNS as probe protocol on SD-WAN Performance SLA health check
