Technical Tip: Dial-up IPsec traffic forwarding to site to site IPsec tunnel

Description

This article describes how to configure dial-up IPsec VPN over IPSec site-to-site VPN connection.

Scope

FortiGate v6.0 or above.

Solution

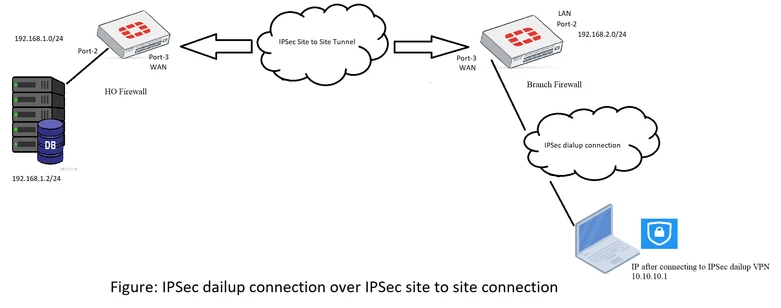

This is a configuration of site-to-site IPsec VPN that allows access to the remote endpoint via IPsec dial-up VPN. Here a site-to-site VPN connection will be configured between the head office (HO) and the branch office.

And end user will connect to the branch office via an IPsec dial-up connection and after that user will access the remote server which is in HO LAN.

Configure the IPSec site-to-site VPN where considering the dial-up network subnet/ range as 10.10.10.0/24 for the branch office side:

HO Firewall:

Branch Firewall:

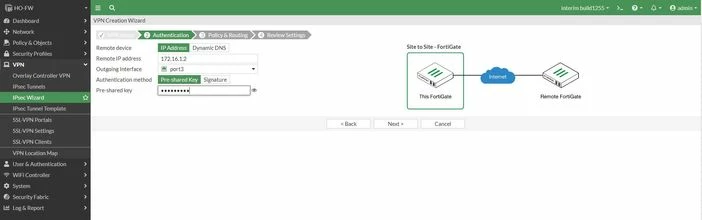

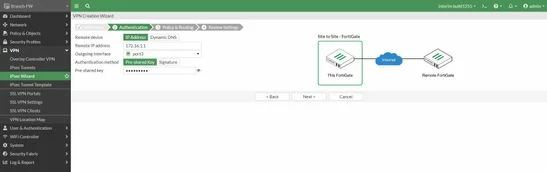

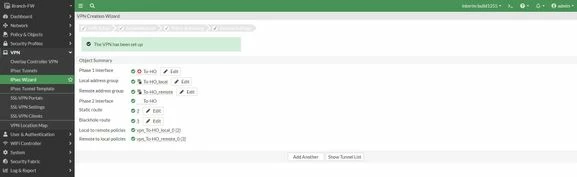

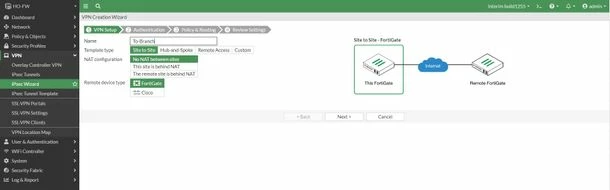

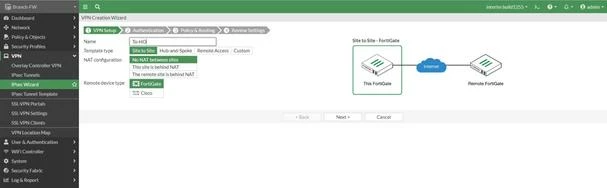

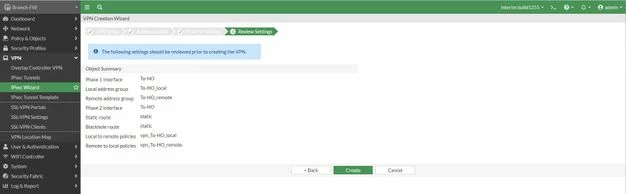

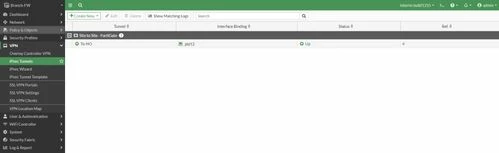

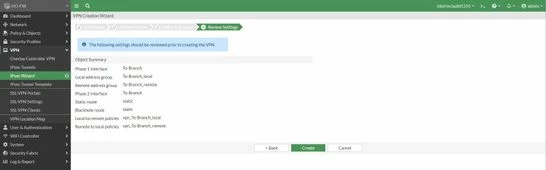

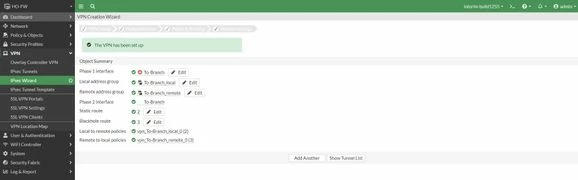

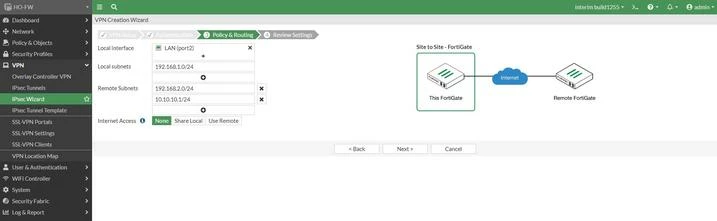

Now configure the site-to-site VPN.

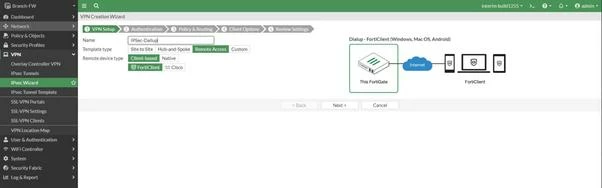

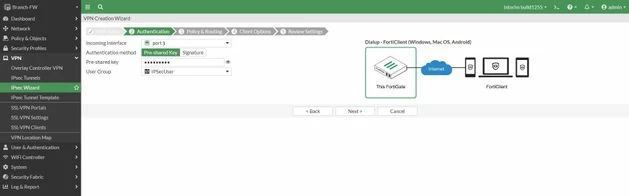

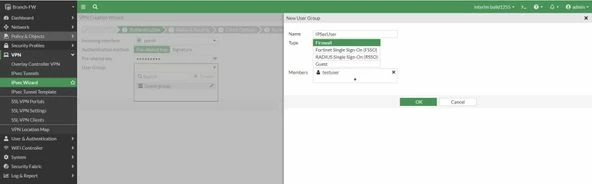

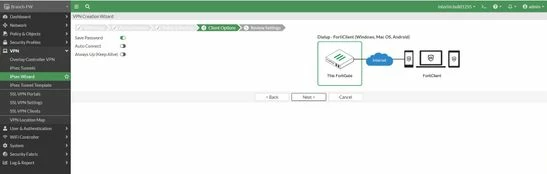

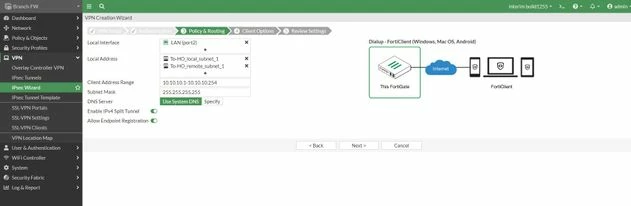

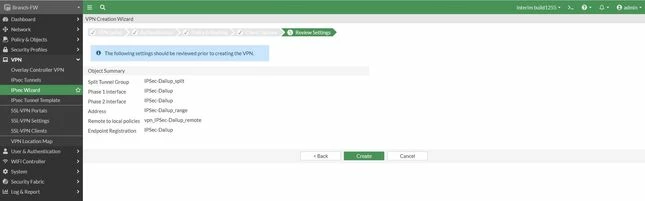

Now configure the IPsec dial-up connection for the branch user.

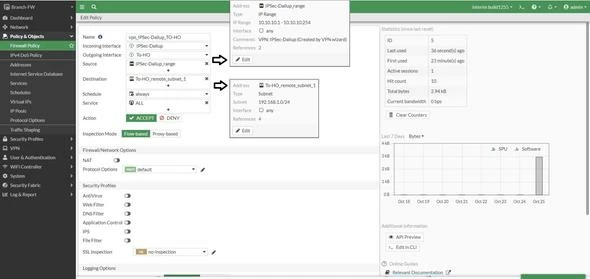

Now configure a special policy to allow traffic from the dial-up tunnel to the site-to-site tunnel.

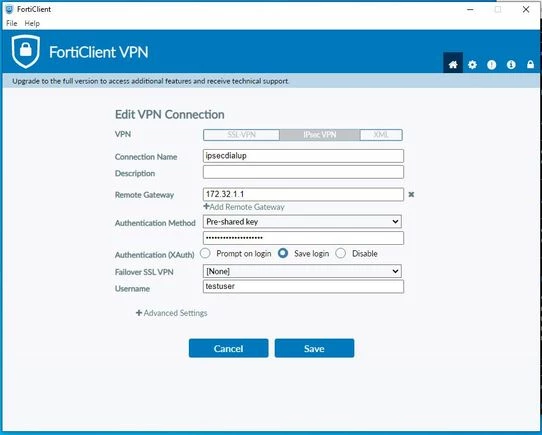

Now move to the client's computer and configure the FortiClient.

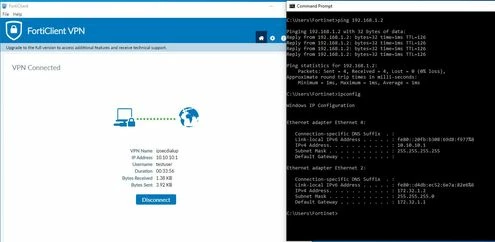

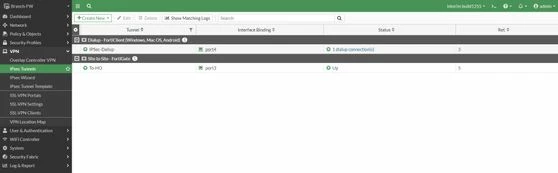

After a successful connection, the user should be able to reach the 192.168.1.0/24 network which is behind the HO firewall.

Let's verify the same configuration from CLI:

***********************************HO Firewall**************************************

HO-FW # show full-configuration | grep -f  "To-Branch"

config system interface

    edit "To-Branch" <-----

        set vdom "root"

        set type tunnel

        set snmp-index 15

        set interface "port3"

    next

end

config firewall address

    edit "To-Branch_local_subnet_1" <-----

        set uuid 927e48e0-5473-51ed-4e8e-dbd1c3c97d17

        set allow-routing enable

        set subnet 192.168.1.0 255.255.255.0

    next

    edit "To-Branch_remote_subnet_1" <-----

        set uuid 92896392-5473-51ed-1aa9-aa8ea0c27f81

        set allow-routing enable

        set subnet 192.168.2.0 255.255.255.0

    next

    edit "To-Branch_remote_subnet_2" <-----

        set uuid 928efbae-5473-51ed-59c5-921e3b809bdf

        set allow-routing enable

        set subnet 10.10.10.0 255.255.255.0

    next

end

config firewall addrgrp

    edit "To-Branch_local" <-----

        set uuid 9283ab00-5473-51ed-d27f-a450aed98e3d

        set member "To-Branch_local_subnet_1" <-----

        set comment "VPN: To-Branch (Created by VPN wizard)" <-----

        set allow-routing enable

    next

    edit "To-Branch_remote" <-----

        set uuid 9294903c-5473-51ed-388c-585fdf647eb4

        set member "To-Branch_remote_subnet_1" "To-Branch_remote_subnet_2" <-----

        set comment "VPN: To-Branch (Created by VPN wizard)" <-----

        set allow-routing enable

    next

end

config vpn ipsec phase1-interface

    edit "To-Branch" <-----

        set interface "port3"

        set peertype any

        set net-device disable

        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1

        set comments "VPN: To-Branch (Created by VPN wizard)" <-----

        set wizard-type static-fortigate

        set remote-gw 172.16.1.2

        set psksecret ENC DRtAUEChBpiKZvQ0FxIgP8eSw8Zj2ZghjE1

YJj1JiPfn6LtHoLLNcbYPPeNrHlph4wGEZTNyBQ8E3Jgd0Of

YPZClWr4GCTLExH3LJc3MsNRT4DHqQZPsW4pRu8T5iu3ZJgcdA0Q50wcER

Y1cBjgRGqJ6rXzSEWDjlLxvJWUxuuYjMAkg8GRXTj+syH3EnKy9Ites/w==

    next

end

config vpn ipsec phase2-interface

    edit "To-Branch" <-----

        set phase1name "To-Branch" <-----

        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305

        set comments "VPN: To-Branch (Created by VPN wizard)" <-----

        set src-addr-type name

        set dst-addr-type name

        set src-name "To-Branch_local" <-----

        set dst-name "To-Branch_remote" <-----

    next

end

config firewall policy

    edit 2

        set name "vpn_To-Branch_local_0" <-----

        set uuid 92ab822e-5473-51ed-514b-e46aa198cd3e

        set srcintf "port2"

        set dstintf "To-Branch" <-----

        set action accept

        set srcaddr "To-Branch_local" <-----

        set dstaddr "To-Branch_remote" <-----

        set schedule "always"

        set service "ALL"

        set comments "VPN: To-Branch (Created by VPN wizard)" <-----

    next

    edit 3

        set name "vpn_To-Branch_remote_0" <-----

        set uuid 92bc5072-5473-51ed-9787-03aa6d45305b

        set srcintf "To-Branch" <-----

        set dstintf "port2"

        set action accept

        set srcaddr "To-Branch_remote" <-----

        set dstaddr "To-Branch_local" <-----

        set schedule "always"

        set service "ALL"

        set comments "VPN: To-Branch (Created by VPN wizard)" <-----

    next

end

config router static

    edit 2

        set device "To-Branch" <---

        set comment "VPN: To-Branch (Created by VPN wizard)" <-----

        set dstaddr "To-Branch_remote" <----

    next

    edit 3

        set distance 254

        set comment "VPN: To-Branch (Created by VPN wizard)" <-----

        set blackhole enable

        set dstaddr "To-Branch_remote" <-----

    next

end

HO-FW #

**********************************Branch Firewall***************************
Branch-FW # show full-configuration | grep -f  "To-HO"

config system interface

    edit "To-HO" <---

        set vdom "root"

        set type tunnel

        set snmp-index 15

        set interface "port3"

    next

end

config firewall address

    edit "To-HO_local_subnet_1" <-----

        set uuid 0c6420fa-547c-51ed-2ea9-ec6c14a37679

        set allow-routing enable

        set subnet 192.168.2.0 255.255.255.0

    next

    edit "To-HO_local_subnet_2" <-----

        set uuid 0c6990b2-547c-51ed-3469-5d282a92059e

        set allow-routing enable

        set subnet 10.10.10.0 255.255.255.0

    next

    edit "To-HO_remote_subnet_1" <-----

        set uuid 0c9c0754-547c-51ed-7da1-3a1944314334

        set allow-routing enable

        set subnet 192.168.1.0 255.255.255.0

    next

end

config firewall addrgrp

    edit "To-HO_local" <-----

        set uuid 0c6f6d98-547c-51ed-e863-e9aec3dc7182

        set member "To-HO_local_subnet_1" "To-HO_local_subnet_2" <-----

        set comment "VPN: To-HO (Created by VPN wizard)" <-----

        set allow-routing enable

    next

    edit "To-HO_remote" <-----

        set uuid 0ca1b190-547c-51ed-f62e-d296247a9edc

        set member "To-HO_remote_subnet_1" <-----

        set comment "VPN: To-HO (Created by VPN wizard)" <-----

        set allow-routing enable

    next

    edit "IPSec-Dailup_split"

        set uuid 26b64874-54a0-51ed-9c6f-bb6c2c8d2de9

        set member "To-HO_local_subnet_1" "To-HO_remote_subnet_1" <-----

        set comment "VPN: IPSec-Dailup (Created by VPN wizard)"

    next

end

config vpn ipsec phase1-interface

    edit "To-HO" <-----

        set interface "port3"

        set peertype any

        set net-device disable

        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1

        set comments "VPN: To-HO (Created by VPN wizard)" <-----

        set wizard-type static-fortigate

        set remote-gw 172.16.1.1

        set psksecret ENC A3Ww0ZaJ6uc1Z7Qt2xhQOqmEOKpig4y/mKBGQNFRHAa0n5UMfHnz3bzAS4vp9naTCRt3Hj9R042XEvYmkXEDWfOLZSwo3kwVH6+

kn9RfnolauTTcQXc80TXk7sYGFUvAkPuc9GHNOW/XG

O5MWeWAXnEEcTZ14cV7mNojsdfNrwOQhxgCV3uDWUUB6fspRN1aOwlyLA==

    next

end

config vpn ipsec phase2-interface

    edit "To-HO" <-----

        set phase1name "To-HO" <-----

        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305

        set comments "VPN: To-HO (Created by VPN wizard)" <-----

        set src-addr-type name

        set dst-addr-type name

        set src-name "To-HO_local" <-----

        set dst-name "To-HO_remote" <-----

    next

end

config firewall policy

    edit 2

        set name "vpn_To-HO_local_0" <-----

        set uuid 0cb9ed8c-547c-51ed-fc8f-266ec53018c0

        set srcintf "port2"

        set dstintf "To-HO" <-----

        set action accept

        set srcaddr "To-HO_local"  <-----

        set dstaddr "To-HO_remote" <-----

        set schedule "always"

        set service "ALL"

        set comments "VPN: To-HO (Created by VPN wizard)" <-----

    next

    edit 3

        set name "vpn_To-HO_remote_0" <-----

        set uuid 0cc1921c-547c-51ed-041c-db5cc294f879

        set srcintf "To-HO" <-----

        set dstintf "port2"

        set action accept

        set srcaddr "To-HO_remote" <-----

        set dstaddr "To-HO_local" <-----

        set schedule "always"

        set service "ALL"

        set comments "VPN: To-HO (Created by VPN wizard)" <-----

    next

    edit 4

        set name "vpn_IPSec-Dailup_TO-Branch"

        set uuid 26d1f452-54a0-51ed-50c6-0561c12b094e

        set srcintf "IPSec-Dailup"

        set dstintf "port2"

        set action accept

        set srcaddr "IPSec-Dailup_range"

        set dstaddr "To-HO_local_subnet_1" "To-HO_remote_subnet_1" <-----

        set schedule "always"

        set service "ALL"

        set nat enable

        set groups "IPSecUser"

        set comments "VPN: IPSec-Dailup (Created by VPN wizard)"

    next

    edit 5

        set name "vpn_IPSec-Dailup_TO-HO"

        set uuid 13924fb2-54a1-51ed-7022-bf38b9b0a543

        set srcintf "IPSec-Dailup"

        set dstintf "To-HO" <-----

        set action accept

        set srcaddr "IPSec-Dailup_range"

        set dstaddr "To-HO_remote_subnet_1" <-----

        set schedule "always"

        set service "ALL"

        set comments "VPN: IPSec-Dailup (Created by VPN wizard) (Copy of vpn_IPSec-Dailup_remote_0)"

    next

end

config router static

    edit 2

        set device "To-HO" <-----

        set comment "VPN: To-HO (Created by VPN wizard)" <-----

        set dstaddr "To-HO_remote" <-----

    next

    edit 3

        set distance 254

        set comment "VPN: To-HO (Created by VPN wizard)" <-----

        set blackhole enable

        set dstaddr "To-HO_remote" <-----

    next

end

Branch-FW #

******************************Branch Dial-up connection*****************************

Branch-FW # show full-configuration | grep -f "IPSec-Dailup"

config system interface

    edit "IPSec-Dailup" <-----

        set vdom "root"

        set allowaccess fabric

        set type tunnel

        set snmp-index 16

        set interface "port4"

    next

end

config firewall address

    edit "IPSec-Dailup_range" <-----

        set uuid 26cb9d00-54a0-51ed-d404-1b1760c06cac

        set type iprange

        set comment "VPN: IPSec-Dailup (Created by VPN wizard)" <-----

        set start-ip 10.10.10.1

        set end-ip 10.10.10.254

    next

end

config firewall addrgrp

    edit "IPSec-Dailup_split" <---

        set uuid 26b64874-54a0-51ed-9c6f-bb6c2c8d2de9

        set member "To-HO_local_subnet_1" "To-HO_remote_subnet_1"

        set comment "VPN: IPSec-Dailup (Created by VPN wizard)" <-----

    next

end

config vpn ipsec phase1-interface

    edit "IPSec-Dailup" <---

        set type dynamic

        set interface "port4"

        set mode aggressive

        set peertype any

        set net-device disable

        set mode-cfg enable

        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1

        set comments "VPN: IPSec-Dailup (Created by VPN wizard)" <-----

        set wizard-type dialup-forticlient

        set xauthtype auto

        set ipv4-start-ip 10.10.10.1

        set ipv4-end-ip 10.10.10.254

        set dns-mode auto

        set ipv4-split-include "IPSec-Dailup_split" <-----

        set save-password enable

        set psksecret ENC mDIumK7IXxGoRjau5rAG1ZiirwntyAusnKSvhxStyYU2f9pRJmlFUfIQVT6vpKcRw1iBCHYIj/5UjssS/B1GmCD1bk/hN5iE0B0pOusZvIlmBcQEHmnIrqlGL2baamw7yiVJfCEgcUTjy

uPovkTIo6Q2KuYY8NcsjwvDVupAgNhoBqNOnrNqMCoohzkUfI2zTuCV+Q==

    next

end

config vpn ipsec phase2-interface

    edit "IPSec-Dailup" <-----

        set phase1name "IPSec-Dailup" <-----

        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305

        set comments "VPN: IPSec-Dailup (Created by VPN wizard)" <-----

    next

end

config firewall policy

    edit 4

        set name "vpn_IPSec-Dailup_TO-Branch" <-----

        set uuid 26d1f452-54a0-51ed-50c6-0561c12b094e

        set srcintf "IPSec-Dailup" <-----

        set dstintf "port2"

        set action accept

        set srcaddr "IPSec-Dailup_range" <-----

        set dstaddr "To-HO_local_subnet_1" "To-HO_remote_subnet_1"

        set schedule "always"

        set service "ALL"

        set nat enable

        set groups "IPSecUser"

        set comments "VPN: IPSec-Dailup (Created by VPN wizard)" <-----

    next

    edit 5

        set name "vpn_IPSec-Dailup_TO-HO" <-----

        set uuid 13924fb2-54a1-51ed-7022-bf38b9b0a543

        set srcintf "IPSec-Dailup" <-----

        set dstintf "To-HO"

        set action accept

        set srcaddr "IPSec-Dailup_range" <-----

        set dstaddr "To-HO_remote_subnet_1"

        set schedule "always"

        set service "ALL"

        set comments "VPN: IPSec-Dailup (Created by VPN wizard) (Copy of vpn_IPSec-Dailup_remote_0)" <-----

    next

end

Branch-FW #

Verification from firewall by capturing packets:

HO-FW # diagnose sniffer packet any 'host 192.168.1.2 and icmp' 4 0 l

Using Original Sniffing Mode

interfaces=[any]

filters=[host 192.168.1.2 and icmp]

2022-11-01 13:24:10.656066 To-Branch in 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:10.656091 port2 out 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:10.656865 port2 in 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:10.656878 To-Branch out 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:11.667286 To-Branch in 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:11.667307 port2 out 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:11.667658 port2 in 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:11.667665 To-Branch out 192.168.1.2 -> 10.10.10.1: icmp: echo reply

Branch-FW # diagnose sniffer packet any 'host 192.168.1.2 and icmp' 4 0 l

Using Original Sniffing Mode

interfaces=[any]

filters=[host 192.168.1.2 and icmp]

2022-11-01 13:24:10.627641 IPSec-Dailup in 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:10.627665 To-HO out 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:10.628787 To-HO in 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:10.628796 IPSec-Dailup out 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:11.638929 IPSec-Dailup in 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:11.638954 To-HO out 10.10.10.1 -> 192.168.1.2: icmp: echo request

2022-11-01 13:24:11.639510 To-HO in 192.168.1.2 -> 10.10.10.1: icmp: echo reply

2022-11-01 13:24:11.639516 IPSec-Dailup out 192.168.1.2 -> 10.10.10.1: icmp: echo reply

Verification from firewall by running Debug commands:

diagnose debug flow filter addr 192.168.1.2---IP on the other side of site to site tunnel(Destination)

diagnose debug flow filter proto 1

diagnose debug flow show function-name enable

diagnose debug flow trace start 999

diagnose debug enable

This can provide more information about traffic flow, as well as which policy it is hitting.

Note:

If the site-to-site tunnel is established between a FortiGate and a third-party firewall (such as Cisco, SonicWall, etc.), then multiple Phase 2 selectors must be created on the FortiGate, and not multiple subnets within a single Phase 2 selector. This is necessary because FortiGate uses the same SPI value for all subnets in the address group in the Phase 2 configuration, while other firewalls may require different SPI values for each subnet they are configured with.

Related articles:

SSL VPN to IPsec VPN

Technical Tip: Dial-up IPsec traffic forwarding to site to site IPsec tunnel

Debug flow guide
