Technical Tip: DHCP reservation outside the DHCP range but within the subnet

  • August 26, 2025
  • 0 replies
  • 1356 views
Description This article describes how DHCP reservations can be configured on a FortiGate even if the reserved IP address is outside of the configured DHCP pool, as long as it belongs to the same subnet as the interface.
Scope

FortiGate.
Solution

A DHCP server on a FortiGate is configured with defined DHCP ranges for dynamic allocation. For example:

DHCP range 1: 192.168.0.2 to 192.168.0.170.



A requirement is to reserve the following IP address for a specific device:

  • MAC address: aa:bb:cc:dd:ee:ff.

  • Reserved IP: 192.168.0.180.



Key points:

  1. The IP address 192.168.0.180 is not part of either of the configured DHCP ranges.

  2. However, the address still falls within the subnet of the interface (192.168.0.180/24).

  3. FortiGate allows DHCP reservations outside of the DHCP pool, as long as the reserved IP is inside the interface subnet.

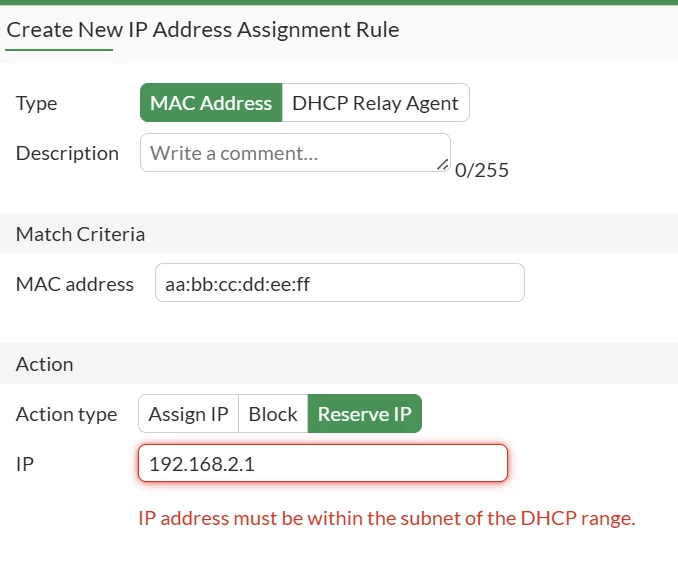

  4. If an IP address outside of the interface subnet is reserved (for example, 192.168.2.1), the configuration will not be allowed.

    Screenshot 2025-08-26 103911.png



Configuration example (CLI):



config system interface
    edit "port10"
        set vdom "root"
        set ip 192.168.0.1 255.255.255.0
        set allowaccess ping https ssh http
        set type physical
        set snmp-index 10
    next
end

config sys dhcp server
    edit 4
        set default-gateway 192.168.0.1
        set netmask 255.255.255.0
        set interface "port10"
            config ip-range
                edit 1
                    set start-ip 192.168.0.2
                    set end-ip 192.168.0.170
                next
            end
            config reserved-address
                edit 1
                    set ip 192.168.0.180
                    set mac aa:bb:cc:dd:ee:ff
                next
            end
    next
end

Note:
To use the IP 192.168.2.1 as a reserved IP is possible with the summarization subnet or network that will include the IP, or if the bigger subnet can be added or extended for the DHCP network(e.g.,192.168.0.0/22). Which will offer an extended DHCP range along with a bigger range of network.
