Technical Tip: Data on ‘Diagnostics and Tools’ menu of managed FortiSwitches fails to load on the FortiGate GUI interface

  • July 10, 2025
  • 0 replies
  • 499 views
Description This article describes an issue observed in the Diagnostics and Tools section of managed FortiSwitches, where:
• The Ports section fails to load and continuously displays a loading spinner.
• The Cable Test feature shows incorrect port information, often displaying ports from a different FortiSwitch.
Scope FortiGate v7.6.3.
Solution

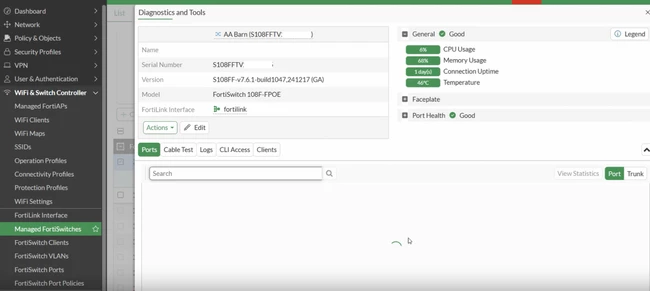

In the Diagnostics and Tools section of a Managed FortiSwitch, the Ports section fails to load and continuously shows a loading spinner.

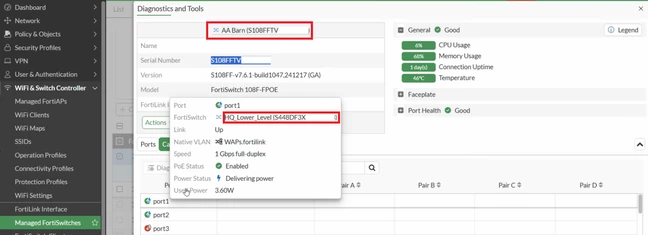

Additionally, the Cable Test feature displays ports from a different FortiSwitch.




This issue has been resolved in the following versions:

  • v7.6.4 (available to download from the Fortinet support portal).
  • v8.0.0 (scheduled to be released in February 2026).

These timelines for firmware release are estimates and may be subject to change.

General debug information required by FortiGate TAC for investigation:

  • Debugs:



diagnose debug console timestamp enable
diagnose debug application https -1
diagnose debug enable



Reproduce the issue.



diagnose debug reset

  • TAC Report:



execute tac report
