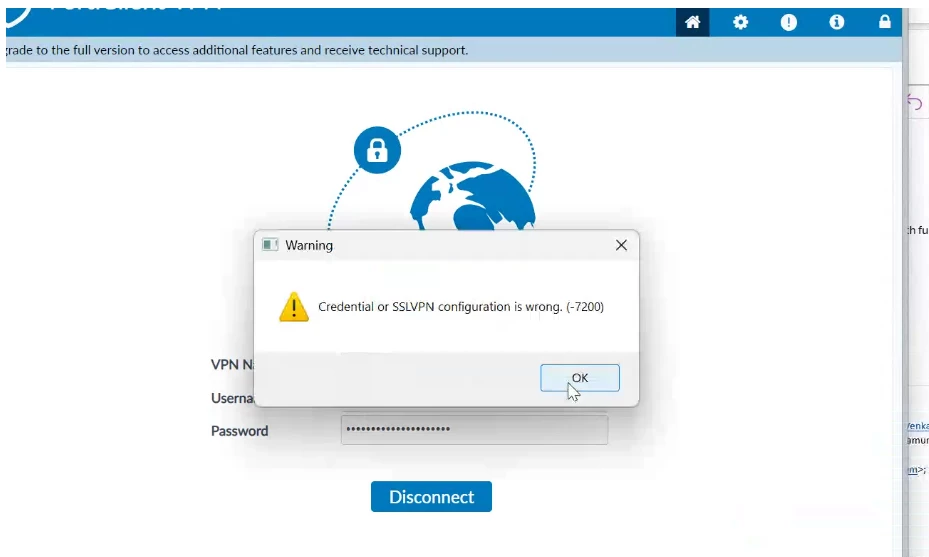

Technical Tip: Credential or SSL VPN configuration is wrong (-7200) for SSL VPN with any type of Authentication.

Symptoms:

Additionally, the firewall debug logs show a successful TLS handshake, but authentication ultimately fails with an unknown reason.

Observed Logs:

Below is a snippet showing a successful TLS handshake negotiation followed by a login failure:

SSL established: TLSv1.3 TLS_AES_128_GCM_SHA256  <--
user 'testTAC' has a matched local entry.
two factor check for testTAC: off
authenticate user: [testTAC]
[fam_auth_send_req] Groups sent to FNBAM:
... (multiple groups)
login_failed:497 user[testTAC],auth_type=1 failed [sslvpn_login_unknown_reason]  <--

FortiGate requires the SSL cipher strength in vpn ssl settings to be equal to or stronger than the cipher strength in the authentication-rule.

If the SSL settings define a weaker cipher, FortiGate completes the TLS handshake but fails at user authentication, resulting in the (-7200) error.

Incorrect configuration:

config vpn ssl settings
    set ssl-min-proto-ver tls1-3
    set banned-cipher SHA256
    set ciphersuite TLS-AES-128-GCM-SHA256 --> Lower strength 128 bits.
    set servercert "Fortinet_Factory"
    set idle-timeout 1800
    set tunnel-ip-pools "SSLVPN-TUNNEL"
    set dns-server1 10.3.1.8
    set dns-server2 10.1.2.100
    set port 49153
    set source-interface "port30"
    set source-address "all"
    set default-portal "No-Access"

        config authentication-rule --> Default is 168-bit cipher strength.
            edit 1
                set groups "Test-Group"
                set portal "SSLVPN_CORONA"
            next
end

In this case, the solution is to increase the strength of the ciphersuite to a higher value (>= 168 bits), or unset the ciphersuite to the default value.
