Technical Tip: Creating a local-in policy (IPv4 and IPv6) on GUI

Description

This article describes how, starting from v7.6.x, a Local-In policy can be created via the GUI.

Scope

FortiGate v7.6.x.

Solution

Starting from FortiOS v7.6.0, Local-In policies can be created on the GUI.

In previous firmware versions, this option was only available via the CLI. See Local-in policy.

1. Enable the Local-In policy by going to System -> Feature Visibility, searching for Local-In Policy, and enabling it.

Local-In Policy can also be enabled in CLI:

configure system settings
    set gui-local-in-policy enable
end

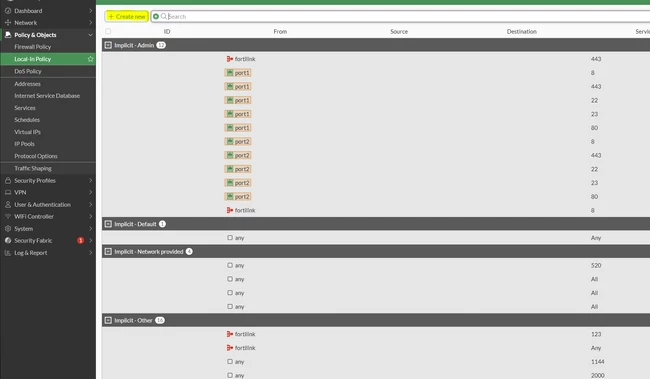

2. Once enabled, go to Policy & Objects -> Local-In Policy and select 'Create new'.

3. The option remains the same as the CLI; it is just necessary to select the details on the GUI.

config firewall {local-in policy | local-in-policy6}
    edit <policy number>
        set int <interface>
        set srcaddr <source address>
        set dstaddr <destination address>
        set action {accept | deny}
        set service <service name>
        set schedule <schedule name>
        set virtual-patch {enable| disable}
        set comments <string>
     next
end

Here is the example:

config firewall local-in policy
    edit 9
        set intf "port2"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set service "HTTPS" "HTTP" "SSH"
        set schedule "always"
    next
end

In the GUI:

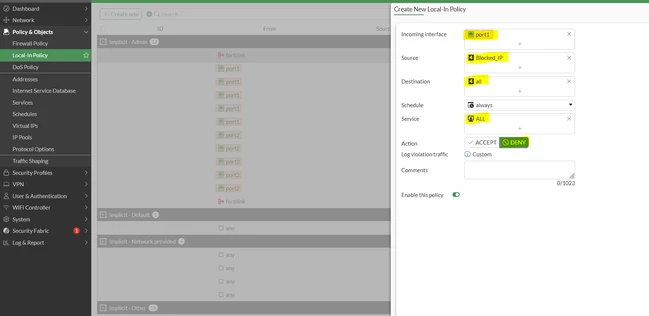

• Select the relevant interface or zone, which is usually the outbound (internet-facing) interface/zone, and then create the addresses that shall be allowed/blocked accordingly.

• Once done, select parameters such as destination, service, and action as per the requirement.

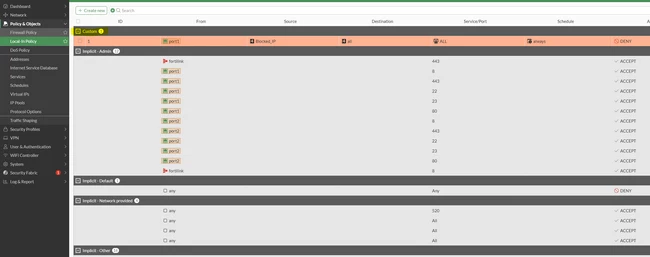

• Select 'OK' to apply the policy. Once done, the new policy is visible under Custom as shown below:

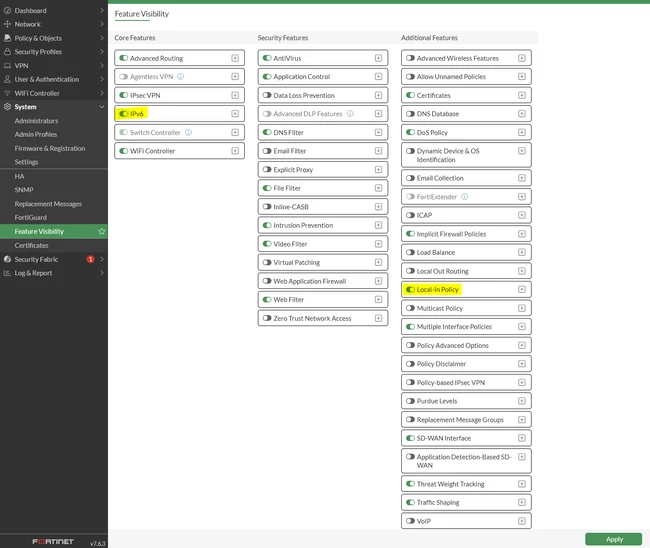

• For IPv6, enable IPv6 as well other than enabling the Local-In policy under System -> Feature Visibility:

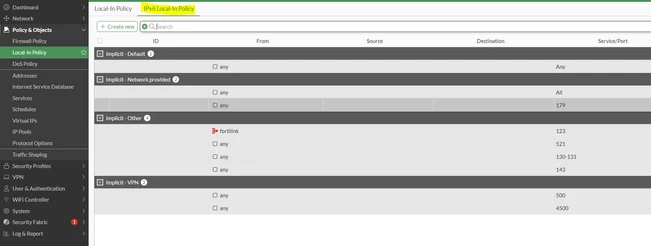

• Once enabled, select IPv6 under Local-In Policy:

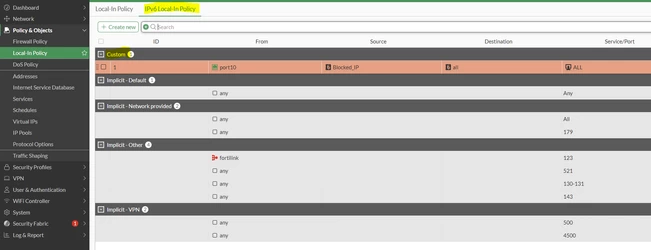

• Similar steps can be repeated to create the IPv6 Local-In policy, and IPv6 is visible under 'Custom' as well:

• To remove an existing local-in-policies, refer to the article: Technical Tip: How to remove existing local in policies from FortiGate GUI.



Note: Particular attention is required when removing Local-in Policies in setups where SSL VPN is restricted by Geo-location, as this can unintentionally deny VPN access to all users, including those from allowed IP ranges. More details regarding this procedure are provided in Technical Tip: How to safely delete Local-in Policies when SSL VPN with a Geo-Location restriction is applied.

The Negate option can also be used for source and destination addresses in both local-in policies and firewall policies by enabling Policy Advanced Options under System -> Feature Visibility. (For more details, see Technical Tip: Firewall Policy 'Negate' option.)

Notes:

As best practices, consider the following recommendations:

• Do not allow administrative services from 'ANY'.

• If the interface is added to a zone then the zone has to be selected.

config firewall local-in policy
    edit 9
        set intf "ZONE" ----- ZONE Name
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set service "HTTPS" "HTTP" "SSH"
        set schedule "always"
    next
end

• Use specific IP objects, not wide ranges.

• Always place a deny-all at the bottom.
