Technical Tip: Create ISDB objects with specific Country/Region/City

Create ISDB via Graphical User Interface (GUI).

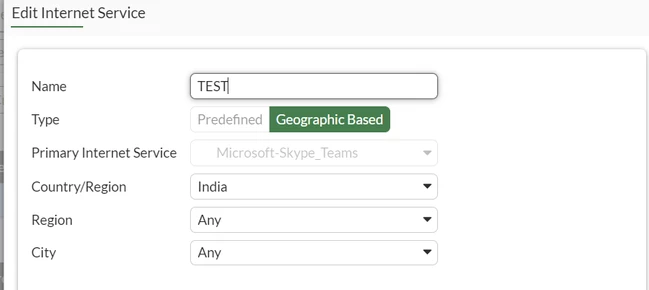

• Go to Policy & Objects -> Internet Service Database and select 'Create New'.
• Under 'Type' select 'Geographic Based'.

Create ISDB via CLI:

config firewall internet-service-name
    edit "Test"
        set type location
        set internet-service-id 327781
        set country-id 356
        unset region-id
        unset city-id
    next
end

To view the entries of this location-based ISDB object, either use the following methods:

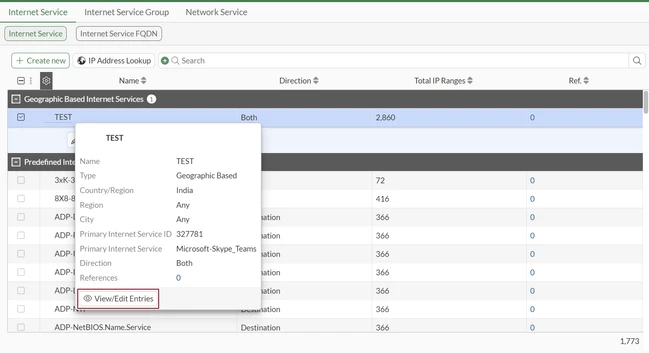

1. In the table, hover over the object created, select 'View/Edit Entries'.

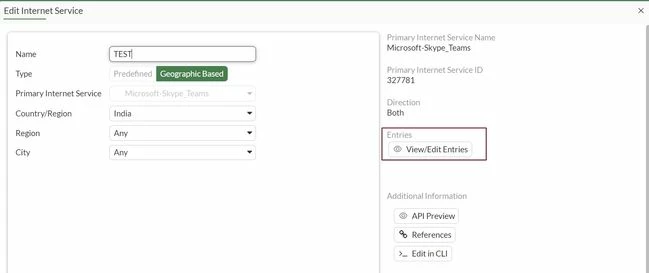

2. Open the object, then select 'View/Edit Entries'.









3. View the IP ranges in the location-based internet service from the CLI.



preve-kvm35 # diagnose internet-service id 327781
Internet Service: 327781(Microsoft-Skype_Teams)
Version: 00007.04412
Timestamp: 202603041214
Number of Entries: 5720
1.37.76.216-1.37.76.216 country(608) region(65535) city(65535) blocklist(0x0) reputation(5), popularity(5) domain(876) botnet(0) proto(6) port(80 443 1000-10000 16000-26000 50000-65000)

Note:

These objects can be used in firewall policies or local-in policies for more granular control over the location of the parent ISDB object.

Location-based customization for Internet Service FQDN is not supported.
