Start by configuring the FortiOS ZTNA Access Proxy:
config firewall vip
edit "ldapsrv"
set type access-proxy
set server-type https
set extip 192.168.5.251
set extintf "port1"
set extport 42123
set ssl-certificate "Fortinet_Factory"
next
end
Note: If the FortiOS version is below 7.6.7, it is necessary to disable client certificates (set client-cert disable). In versions previous to version 7.6.7, FortiOS will always try to match the client Certificate with an EMS CA certificate, even if there is no EMS server configured on FortiOS.
As of versions 7.6.7 and 8.0.0, it is possible to opt out of using an EMS CA certificate with the following commands:
config authentication setting
set ems-root-ca disable
set user-cert-ca "Fortinet_CA"
end
The command ems-root-ca disable is self-explanatory, and for user-cert-ca the selected certificate should be the CA for the certificate presented by FIC when connecting to the access-proxy.
In this article, the default certificates on FIC are being used, so 'Fortinet_CA' is selected for 'set user-cert-ca'.
Continue configuring the access-proxy with TCP forwarding tunnel encryption:
config firewall access-proxy
edit "ldapsrv"
set vip "ldapsrv"
config api-gateway
edit 1
set url-map "/tcp"
set service tcp-forwarding
config realservers
edit 1
set address "ldaplab"
set mappedport 389
set tunnel-encryption enable
next
end
next
end
next
end
Configure a ZTNA rule:
config firewall policy
edit 3
set name "fic-ldap"
set srcintf "port1"
set dstintf "any"
set action accept
set srcaddr "all"
set dstaddr "ldapsrv"
set schedule "always"
set logtraffic all
set nat enable
next
end

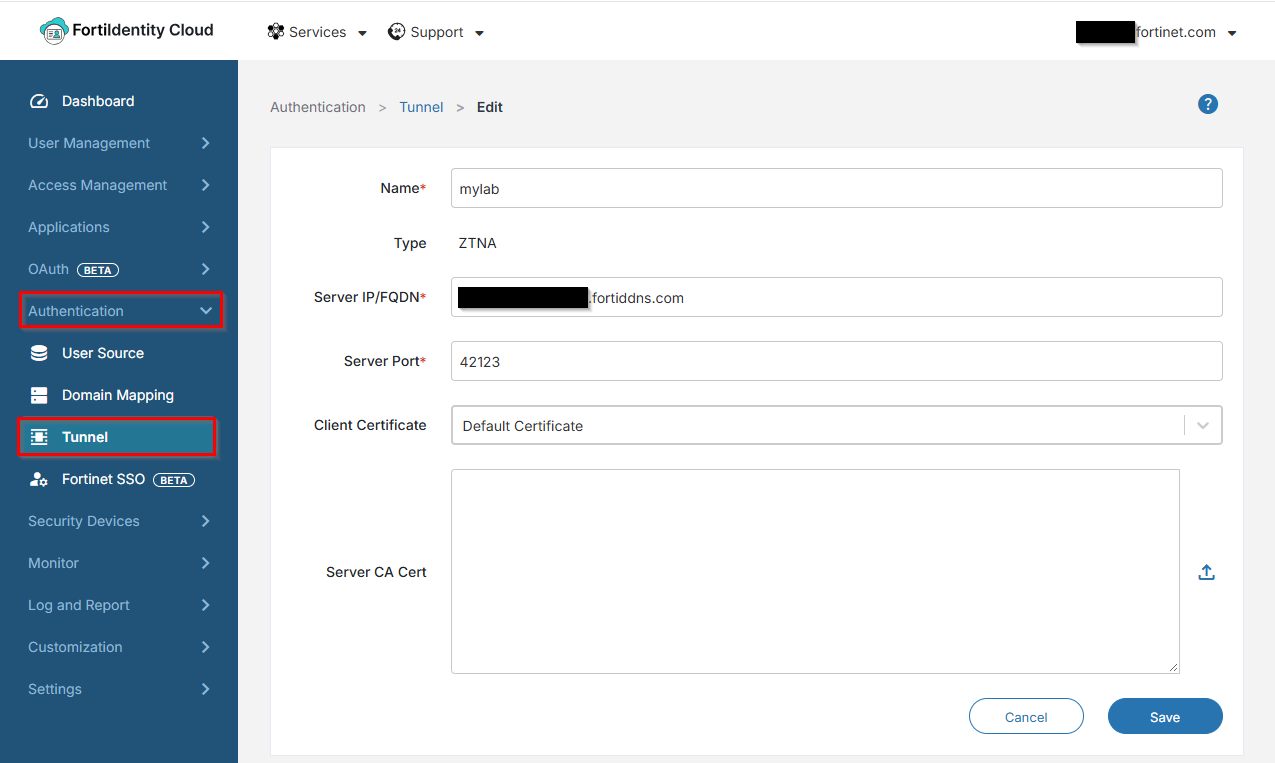

On FortiIdentity Cloud, access Authentication -> Tunnel and configure the ZTNA tunnel:

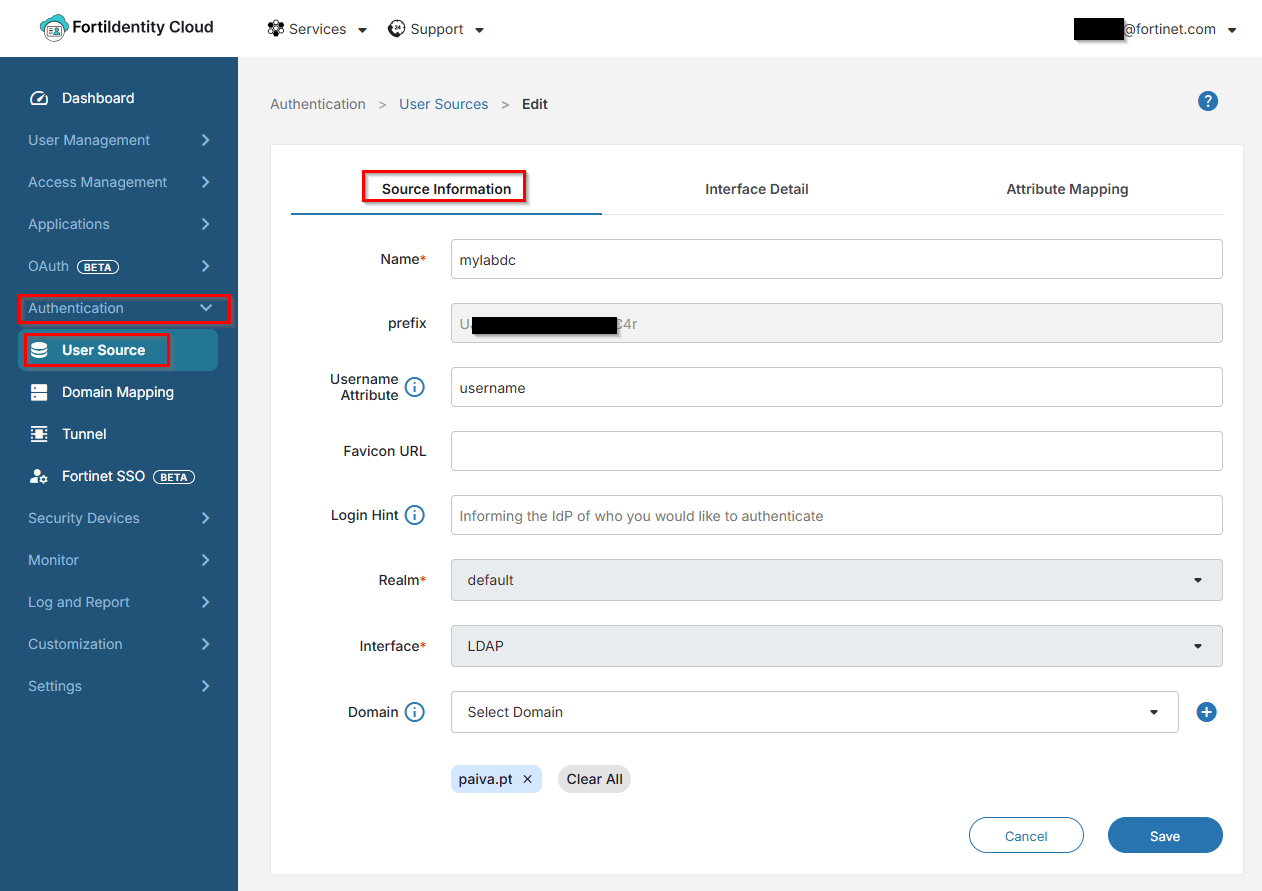

Next, create the User Source for LDAP under Authentication -> User Source. Fill in the necessary info under Source Information:

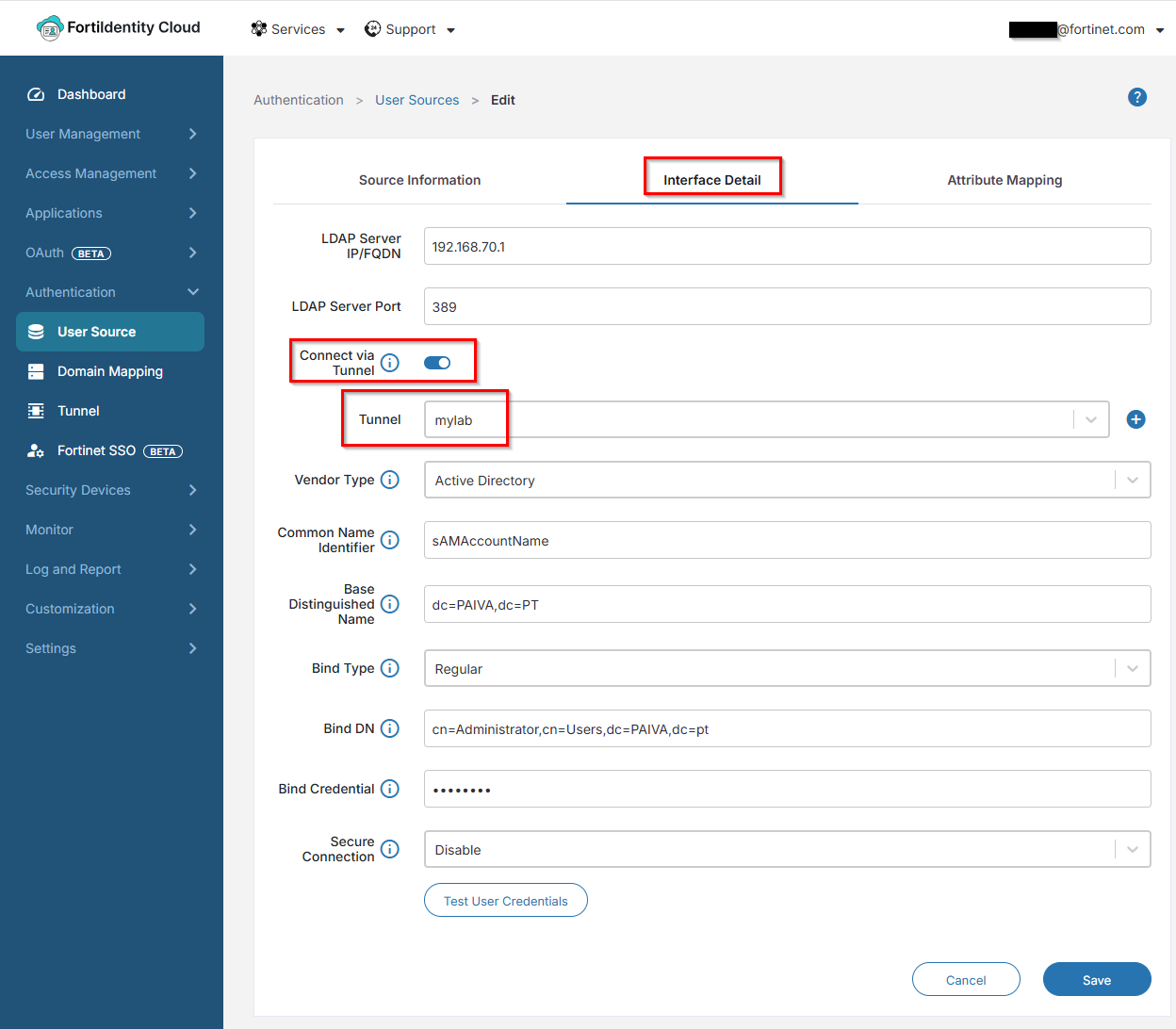

Configure the necessary information regarding the real server. Make sure to activate 'Connect via Tunnel' and select the previously created ZTNA tunnel:

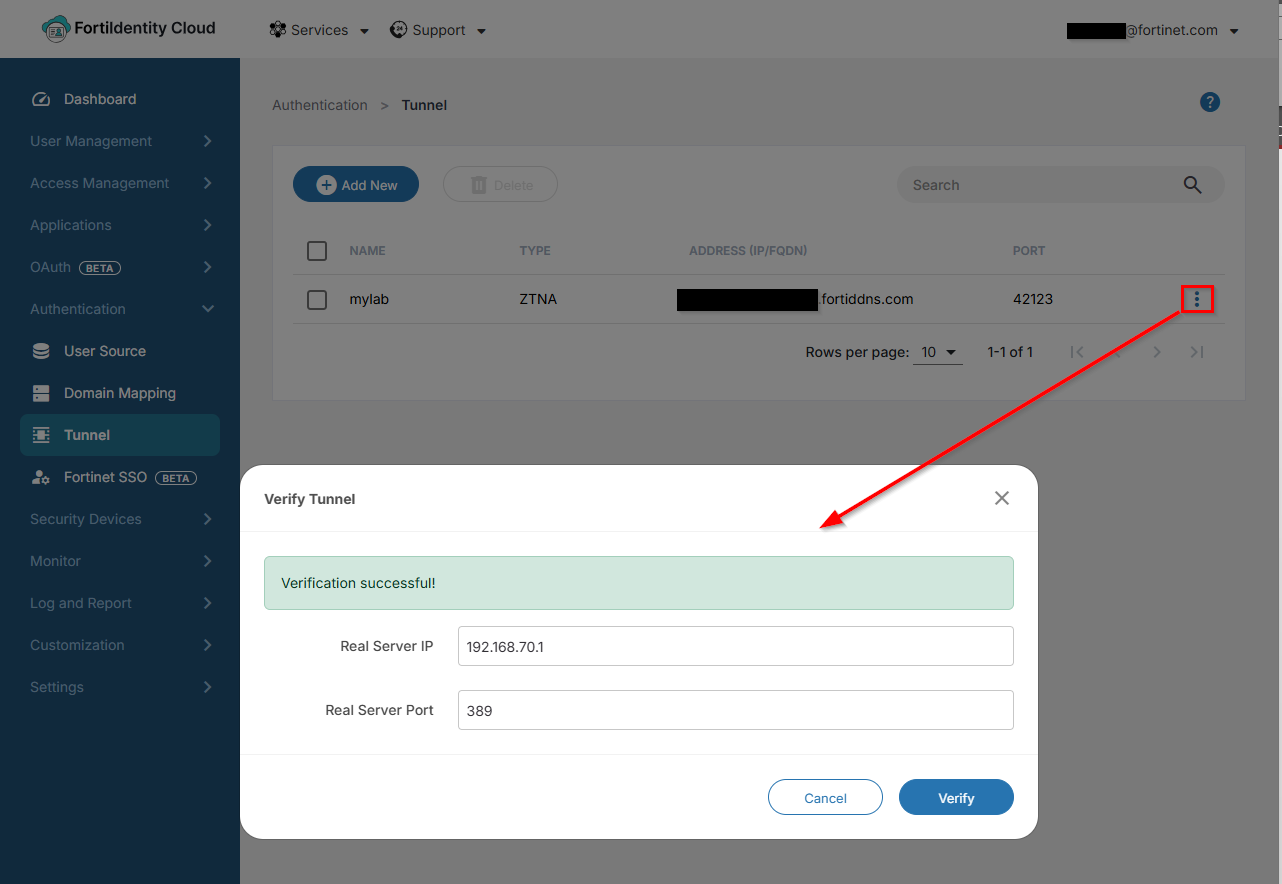

After the configuration is set up, test the ZTNA tunnel: go to Authentication -> Tunnel, select the three-dot icon of the tunnel, and select 'verify'.
Fill in the real server IP and port, and select the Verify button:

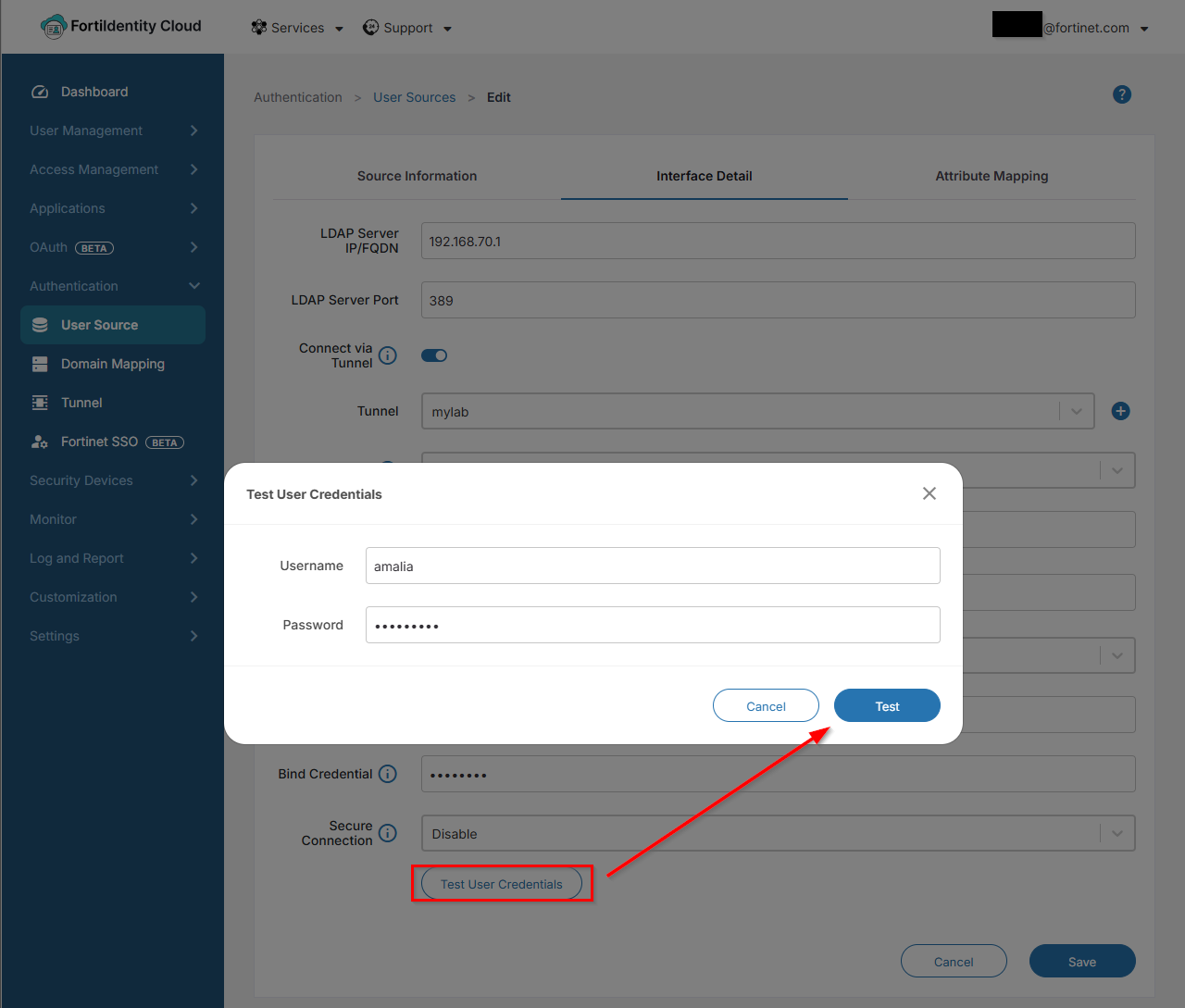

It is also possible to test the user credentials by going to User Source -> Edit the LDAP server -> Interface Detail -> Test User Credentials:

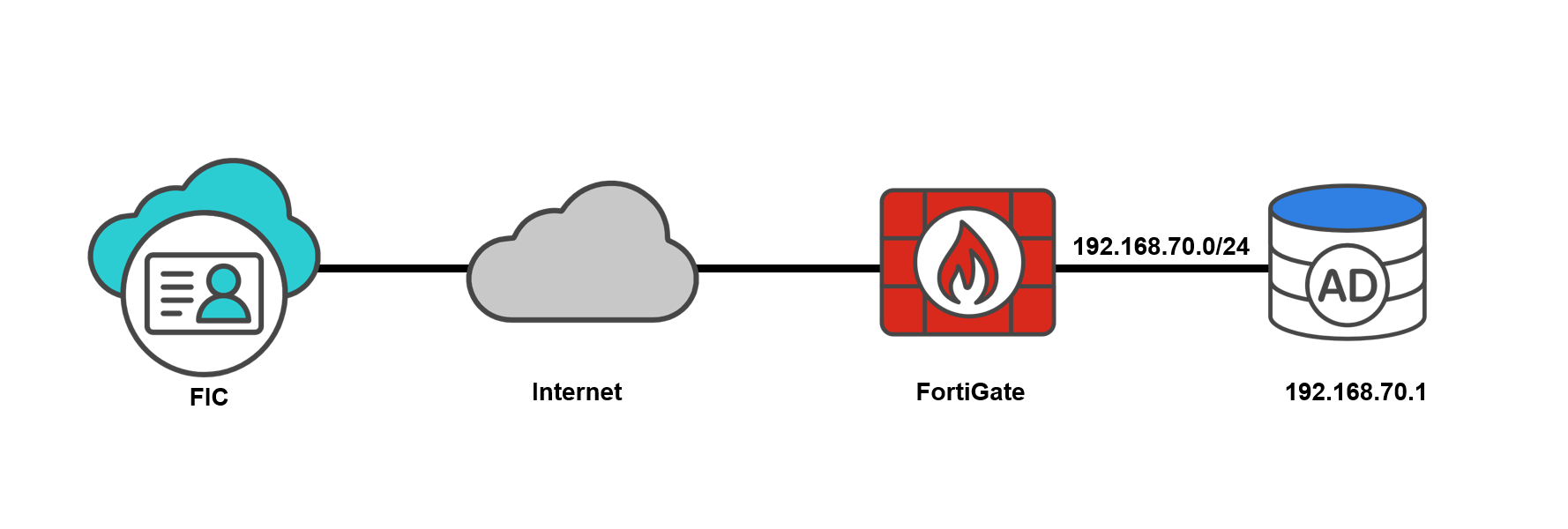

Traffic arriving at the real server:
To configure the ZTNA tunnel directly from FortiAuthenticator Cloud, refer to Troubleshooting Tip: LDAP Connection through ZTNA tunnel from FortiAuthenticator Cloud fails with error 'Can't contact LDAP server'.
|
