Technical Tip: Configuring User-Based VPN Policy with RADIUS authentication without usergroup on FortiGate

Description

This article describes how to create a user-based VPN policy with RADIUS without usergroup authentication on FortiGate. It offers detailed, step-by-step guidance on configuring a user object with RADIUS authentication and applying it to a firewall policy.

Scope

FortiGate.

Solution

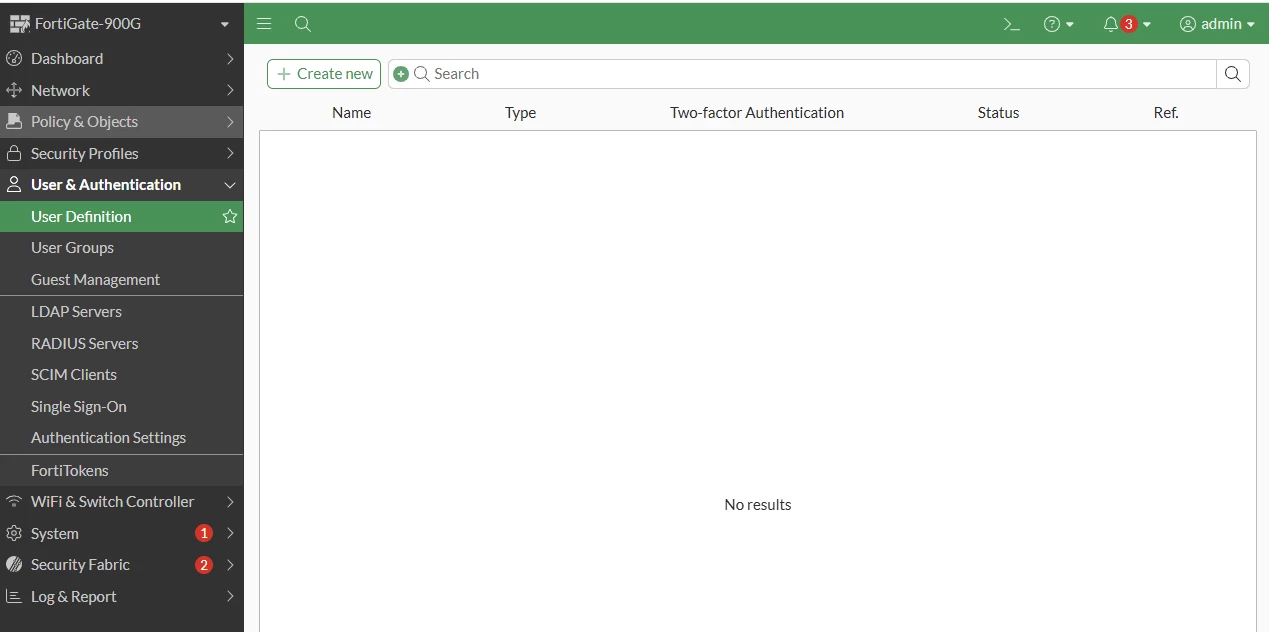

• Go to User & Device -> User Definition.

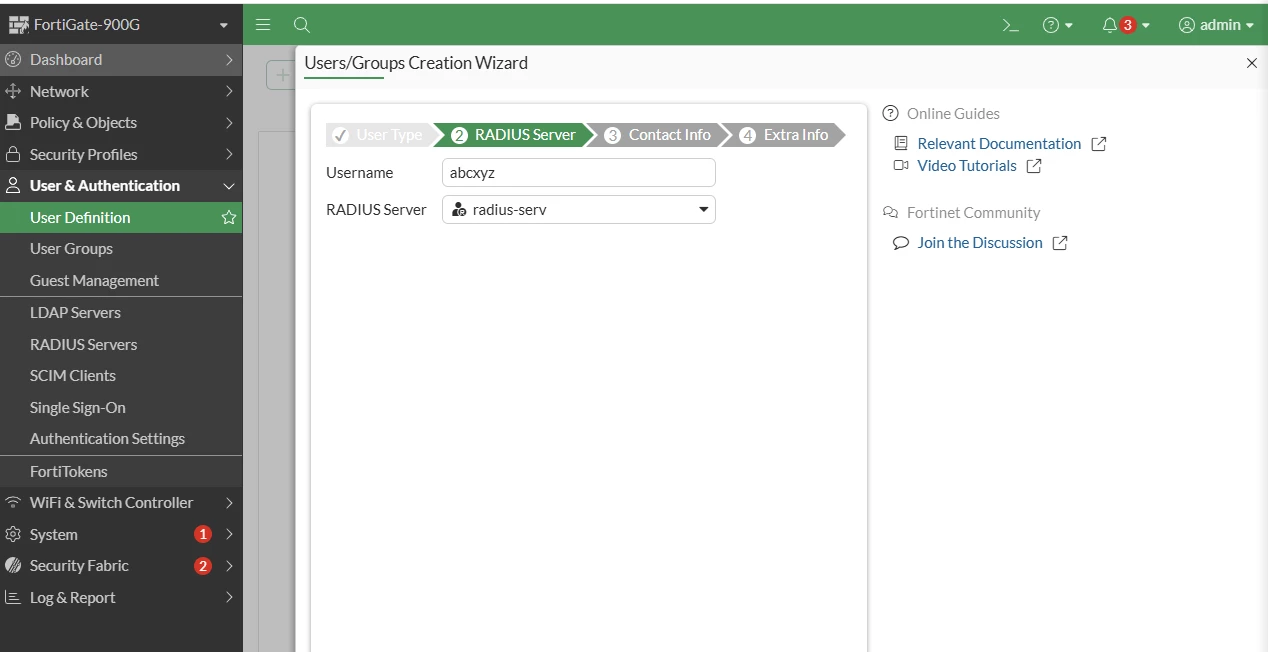

• Select Create New -> Select User type: Remote RADIUS User.

• Enter the username, e.g., 'abcxyz'.

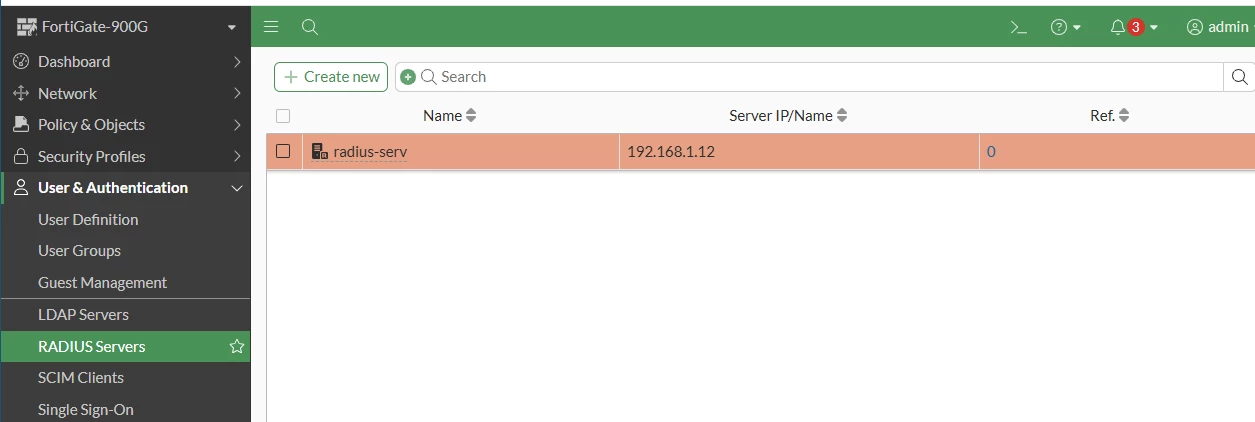

• Under the Remote Server, select RADIUS server.
• Select Next and submit.

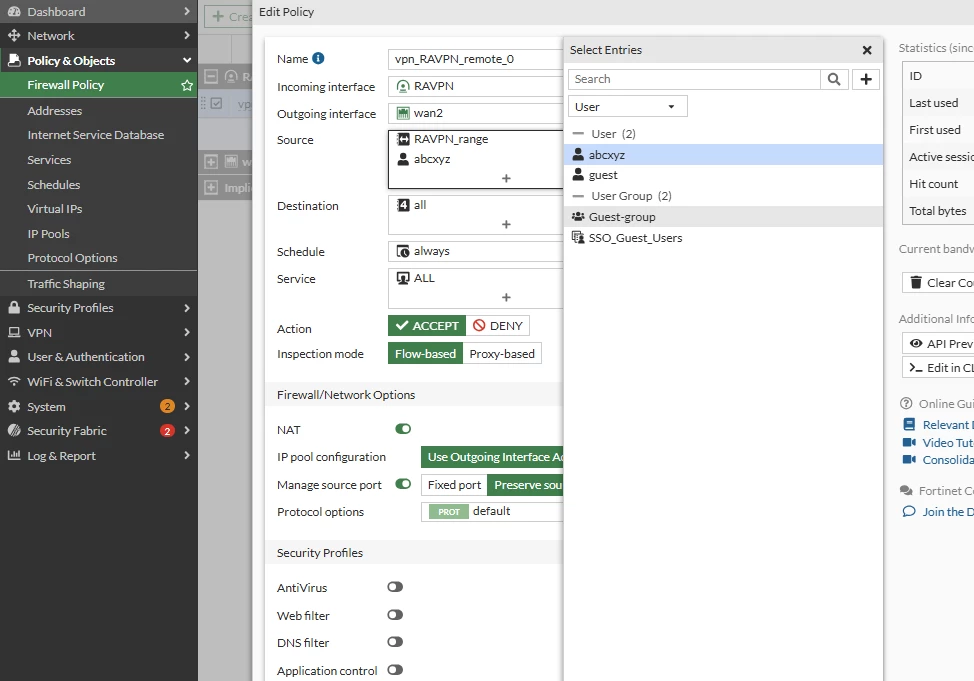

• Create or edit a firewall policy to allow VPN traffic for the particular user.
• Under Source User, select the user object created earlier.
• Set Source and Destination as your VPN interface or relevant network.


After configuring the user-based VPN policy, test the connection to ensure it is working as expected.

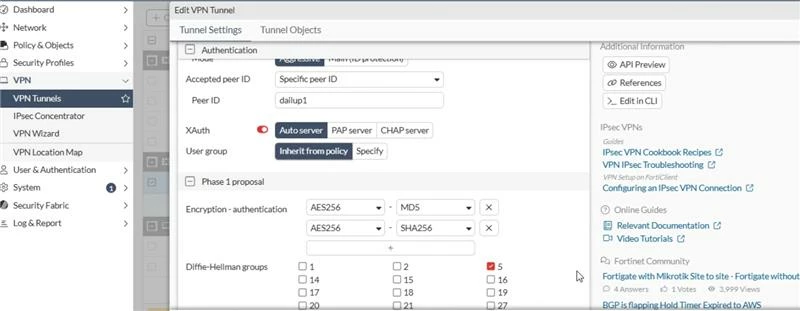

Note: Make sure that in IPsec VPN phase1 configuration, the xauth user group is set 'inherit from policy' in the GUI, or 'set xauthtype auto' in the CLI.
