Technical Tip: Configuring SNMP when SNMP Server is connected behind a Non Management VDOM

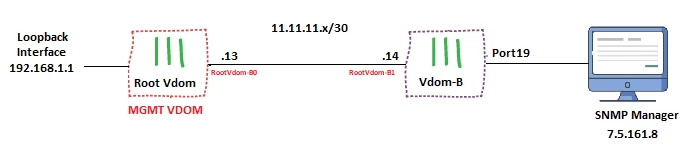

While configuring the SNMP, the interface should be in the management VDOM to get the response from the Firewall to the SNMP Monitoring tool. This article will provide an example and assume that the SNMP is connected to a non-Management VDOM.

Configuration:

Global Mode Configuration.

1. Configure Intervdom Links between Root and VDOM-B.

config global

    config system vdom-link
        edit "RootVdom-B"
        next
    end
    config system interface
        edit "RootVdom-B0"
            set vdom "root"
            set ip 11.11.11.13 255.255.255.252
            set allowaccess ping https ssh http fgfm
            set type vdom-link
            set description "VDOM LINK TO Vdom-B"
            set snmp-index 60
         next
         edit "RootVdom-B1"
            set vdom "Vdom-B"
            set ip 11.11.11.14 255.255.255.252
            set allowaccess ping https ssh http fgfm
            set type vdom-link
            set description "VDOM LINK TO ROOT"
            set snmp-index 61
         next
    end

2. Configure the SNMP and set the source IP for the Loopback interface as below:



   config system snmp community
       edit 1
           set name "public"
               config hosts
                   edit 1
                       set source-ip 192.168.1.1
                       set ip 7.5.161.8 255.255.255.255
                   next
               end
       next
   end





Root VDOM Configuration.

1. Configure the Loopback Interface and enable SNMP and Ping.

config System Interface
    edit "SNMP_LO"
        set vdom "root"
        set ip 192.168.1.1 255.255.255.0
        set allowaccess ping https snmp http fgfm
        set type loopback
        set description "SNMP LOOPBACK"
        set role lan
        set snmp-index 62
    next

2. Configure the Firewall policies from the SNMP Loopback interface to the VDOM Link:



   config firewall policy
       edit 1
           set name "SNMP_LB TO SNMP_Serv"
           set srcintf "SNMP_LO"
           set dstintf "RootVdom-B0"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set schedule "always"
           set service "ALL"
           set logtraffic all
           set comments "SNMP_LB TO SNMP_Serv"
       next
       edit 2
           set name "Root_To_SNMPLO"
           set srcintf "RootVdom-B0"
           set dstintf "SNMP_LO"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set schedule "always"
           set service "ALL"
           set logtraffic all
           set comments "Root_To_SNMPLO"
       next
   end



3. Configure static route toward the SNMP Manager.



   config router static
       edit 3
           set dst 7.5.161.0 255.255.255.0
           set device "RootVdom-B0"
       next
   end



VDOM-B Configuration.

1. Configure a static route back to Root VDOM.

config router static
    edit 11
        set dst 192.168.1.1 255.255.255.255
        set gateway 11.11.11.13
        set device "RootVdom-B1"
    next

2. Configure a Firewall policy to allow communication between Port19 and Intervdom Link.



   config firewall policy
       edit 21
           set name "PORT19SNMP_TO_ROOT"
           set srcintf "port19"
           set dstintf "RootVdom-B1"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set schedule "always"
           set service "ALL"
           set logtraffic all
           set comments " (Copy of Lo_To_Rootvdom)"
       next
       edit 22
           set name "Root_To_SNMP_PORT19"
           set srcintf "RootVdom-B1"
           set dstintf "port19"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set schedule "always"
           set service "ALL"
           set logtraffic all
           set comments " to port19"
       next
   end
