Technical Tip: Configuring Firewall Address Objects and Groups as BGP Prefixes in FortiOS 7.6+

  • August 22, 2025
  • 0 replies
  • 932 views
Description This article describes steps to use firewall address objects and address groups (of the ipmask or interface-subnet type) as BGP network prefixes. This feature simplifies BGP configuration by leveraging existing firewall objects, ensuring alignment between firewall and routing policies, and enabling dynamic prefix updates.
Scope FortiOS 7.6+.
Solution

Manually defining BGP prefixes can lead to configuration errors and inconsistencies, especially in dynamic environments like SD-WAN or multi-tenant setups. By linking firewall address objects and groups to BGP, administrators can:

  • Reuse firewall objects for routing, reducing configuration redundancy.
  • Automatically propagate address object changes to BGP prefixes.
  • Streamline management in large-scale or dynamic networks.


Prerequisites:

  • FortiGate running FortiOS 7.6 or later.
  • BGP configured with basic neighbor settings.


Configuration steps:

  1. Create a Firewall Address Object:

Define an address object and enable routing support.

config firewall address    edit "BGP-Net1"        set allow-routing enable        set subnet 192.168.10.0 255.255.255.0    next end


Note: The allow-routing option must be enabled (disabled by default).



  1. (Optional) Create an Address Group:



Combine multiple address objects for scalable prefix advertisement.



config firewall addrgrp    edit "BGP-Group"        set allow-routing enable        set member "BGP-Net1" "BGP-Net2"    next end


Ensure all member addresses have allow-routing enabled.



  1. Configure BGP to Use Address Objects/Groups.

Reference the address object or group in the BGP network configuration.



config router bgp    set as 65001    config network        edit 1            set prefix-name "BGP-Net1"        next        edit 2            set prefix-name "BGP-Group"        next    end end

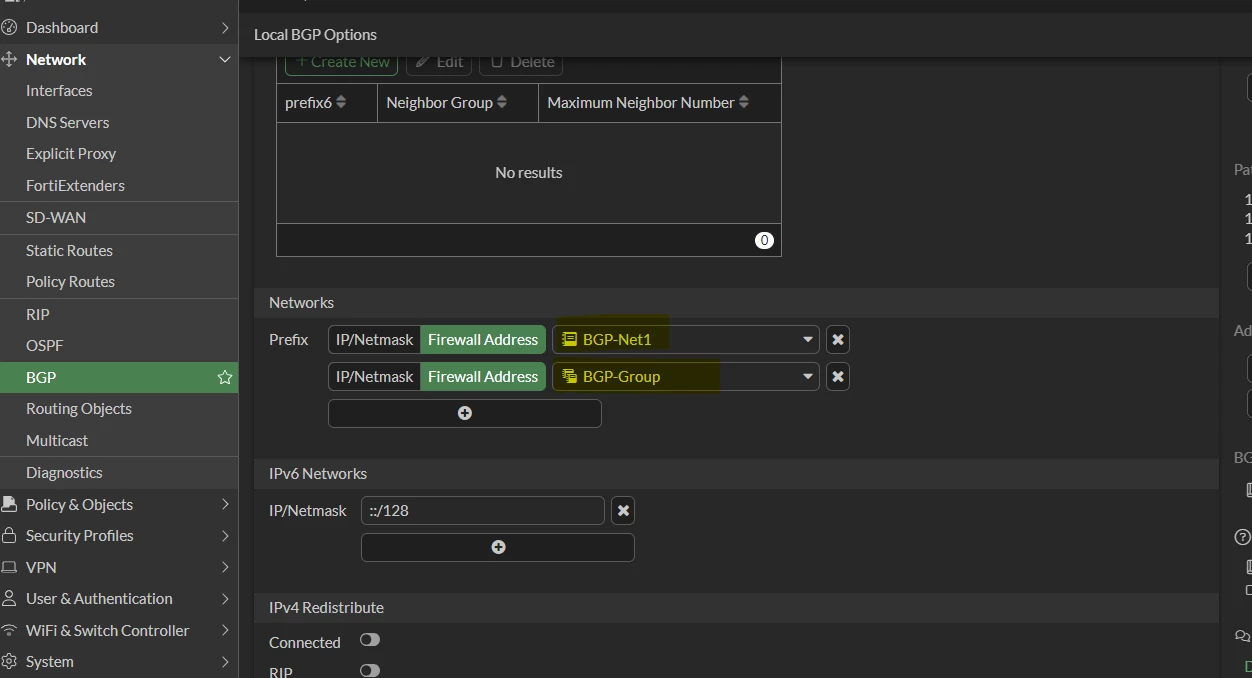

From GUI:

Network > BGP > Networks


BGP k.png





Use prefix-name to link to the address object or group.

Notes:

  • Only ipmask and interface-subnet address types are supported.
  • Address object changes propagate to BGP dynamically, but a BGP soft reset may be required for immediate effect.
