Technical Tip: Configuring BGP overlay for ADVPN 2.0

  • March 11, 2025
  • 0 replies
  • 4358 views
Description This article discusses BGP overlay configuration for ADVPN 2.0.
Scope FortiGate v7.4.2+.
Solution

ADVPN 2.0 was introduced in FortiGate version 7.4.2 onwards. This is an addition to the existing configuration of ADVPN1.0 and is extremely useful for ADVPN with SD-WAN setup.

To convert ADVPN1.0 to ADVPN2.0, refer to Differences between ADVPN2.0 and ADVPN1.0 and ADVPN2.0 configuration.

With any ADVPN setup, it is recommended to use BGP and this article focuses on BGP on overlay configuration.

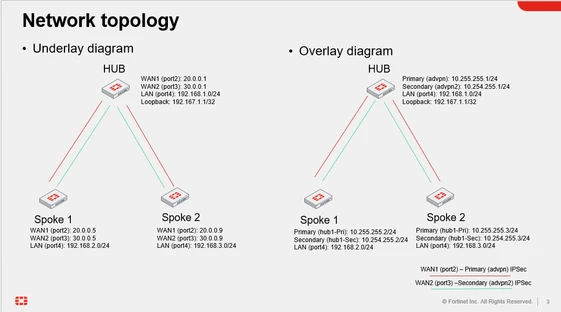

The following topology will be used for this article:




By using the route map preferable command, it will be ensured that the spokes send a community tag to indicate when the IPSec tunnel goes out of SLA:

Spoke configuration:

The route map has two communities advertised: 65001:1 when SLA passes and 65001:11 when SLA fails.

Spoke1 #
config router route-map
    edit "sla_pass"
        config rule
            edit 1
                set set-community "65001:1"
                unset set-ip-prefsrc
            next
        end
    next
    edit "sla_fail"
        config rule
            edit 1
                set set-community "65001:11"
                unset set-ip-prefsrc
            next
        end
    next
end

BGP configuration reflects route map preferable as SLA pass which means when SLA meet, the spoke will advertise the 65001:! community.

Spoke1 #
config router bgp
    set as 65400
        config neighbor
            edit "10.254.255.1"
                set remote-as 65400
                set route-map-out "sla_fail"
                set route-map-out-preferable "sla_pass"
                set additional-path both
            next
            edit "10.250.255.1"
                set ebgp-enforce-multihop enable
                set remote-as 65400
                set route-map-out "sla_fail"
                set route-map-out-preferable "sla_pass"
                set additional-path both
            next
end

SD-WAN has neighbour configuration that specifies which health check and SLA to consider to determine the community to advertise.

Spoke1 #
config system sdwan
    set status enable
        config zone
            edit "IPSec"
                set advpn-select enable
                set advpn-health-check "HUB"
            next
        end
        config members
            edit 3
                set interface "hub1-Pri"
                set zone "IPSec"
                set transport-group 1
            next
            edit 4
                set interface "hub1-Sec"
                set zone "IPSec"
                set transport-group 1
            next
        end
        config health-check
            edit "HUB"
                set server "192.167.1.1"
                set members 3 4
                    config sla
                        edit 1
                            set latency-threshold 100
                            set jitter-threshold 100
                        next
                    end
            next
        end
        config neighbor
            edit "10.250.255.1"
                set member 3
                set health-check "HUB"
                set sla-id 1
            next
            edit "10.254.255.1"
                set member 4
                set health-check "HUB"
                set sla-id 1
            next
        end
end

Hub is simply configured to match the community and to set a local preference for the route. This local preference will be forwarded to another spoke as all members are in iBGP setup.

Hub configuration:

The community list has 2 communities to match 65001:1 and 65001:11.


Hub1 #
config router community-list
    edit "65001:1"
        config rule
            edit 1
                set action permit
                set match "65001:1"
            next
        end
    next
    edit "65001:11"
        config rule
            edit 1
                set action permit
                set match "65001:11"
            next
        end
    next
end



Route map matches the community and sets a local pref of 200 for 65001:1 and 100 (default) for 65001:11. This will ensure that the route on the link that matches SLA will be preferred.



Hub1 #
config router route-map
    edit "AllowAll"
        config rule
            edit 1
                set match-community "65001:1"
                set match-community-exact enable
                unset set-ip-prefsrc
                set set-local-preference 200
            next
            edit 2
                set match-community "65001:11"
                set match-community-exact enable
                unset set-ip-prefsrc
            next
        end
    next
end



BGP configuration is implemented to match the route map accordingly for incoming routes:



Hub1 #
config router bgp
    set as 65400
    set ibgp-multipath enable
    set additional-path enable
    set additional-path-select 3
        config neighbor-group
            edit "PrimarySpoke"
                set soft-reconfiguration enable
                set remote-as 65400
                set route-map-in "AllowAll"
                set additional-path both
                set route-reflector-client enable
            next
            edit "SecondarySpoke"
                set soft-reconfiguration enable
                set remote-as 65400
                set route-map-in "AllowAll"
                set additional-path both
                set route-reflector-client enable
            next
        end
end



Implementation of these can be seen in the output below:

In Spoke1, PrimaryVPN is out of SLA:


Spoke1 # diag sys sdwan health-check status
Health Check(HUB):
Seq(3 hub1-Pri): state(alive), packet-loss(0.000%) latency(151.009), jitter(5.137), mos(4.289), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x0
Seq(4 hub1-Sec): state(alive), packet-loss(0.000%) latency(0.813), jitter(0.144), mos(4.404), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1

Hub now receives the community tag of 65001:11 for PrimaryVPN and 65001:1 for SecondaryVPN:

Hub1 # get router info bgp network 192.168.2.0
VRF 0 BGP routing table entry for 192.168.2.0/24
Paths: (2 available, best #2, table Default-IP-Routing-Table)
Advertised to peer-groups:
PrimarySpoke SecondarySpoke
Original VRF 0
Local, (Received from a RR-client)
10.250.255.2 from 10.250.255.2 (192.168.2.1)
Origin IGP metric 0, localpref 100, valid, internal
Community: 65001:11
Receive Path ID: 1
Last update: Sun Mar 9 13:41:16 2025

Original VRF 0
Local, (Received from a RR-client)
10.254.255.2 from 10.254.255.2 (192.168.2.1)
Origin IGP metric 0, localpref 200, valid, internal, best
Community: 65001:1
Receive Path ID: 1
Advertised Path ID: 1
Last update: Sun Mar 9 13:18:27 2025



Spoke 2 now gets the routes but installs the route via Secondary on its routing table as it is most preferred:

Spoke2 # get router info bgp network 192.168.2.0
VRF 0 BGP routing table entry for 192.168.2.0/24
Paths: (2 available, best #2, table Default-IP-Routing-Table)
Not advertised to any peer
Original VRF 0
Local
10.254.255.2 from 10.254.255.1 (192.168.2.1)
Origin IGP metric 0, localpref 200, valid, internal, best
Community: 65001:1
Originator: 192.168.2.1, Cluster list: 192.167.1.1
Receive Path ID: 1
Advertised Path ID: 2
Last update: Sun Mar 9 13:41:32 2025

Original VRF 0
Local
10.254.255.2 from 10.250.255.1 (192.168.2.1)
Origin IGP metric 0, localpref 200, valid, internal, best
Community: 65001:1
Originator: 192.168.2.1, Cluster list: 192.167.1.1
Receive Path ID: 1
Advertised Path ID: 1
Last update: Sun Mar 9 13:41:29 2025



Spoke2 # get router info routing-table details 192.168.2.0

Routing table for VRF=0
Routing entry for 192.168.2.0/24
Known via "bgp", distance 200, metric 0, best
Last update 00:04:17 ago
* vrf 0 10.254.255.2 priority 1 (recursive via hub1-Sec tunnel 30.0.0.1)
* vrf 0 10.254.255.2 priority 1 (recursive via hub1-Sec tunnel 30.0.0.1)
