Technical Tip: Configuring an automation stitch to send e-mail alerts when any administrator downloads a configuration backup from the GUI

Review the SMTP server settings under config system email-server as described in the following article: Technical Tip: How to configure SMTP using custom server and port on FortiGate.

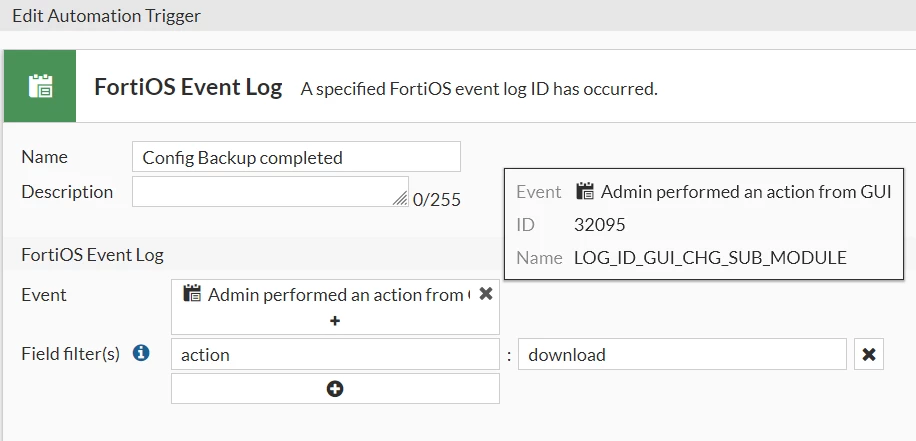

1. A trigger needs to be configured as shown below, search for Event ID '32095' and this event will be pulled in the search section.

config system automation-trigger

    edit "Config Backup completed"

        set event-type event-log

        set logid 32095

            config fields

                edit 1

                    set name "action"

                    set value "download"

                next

            end

    next

end

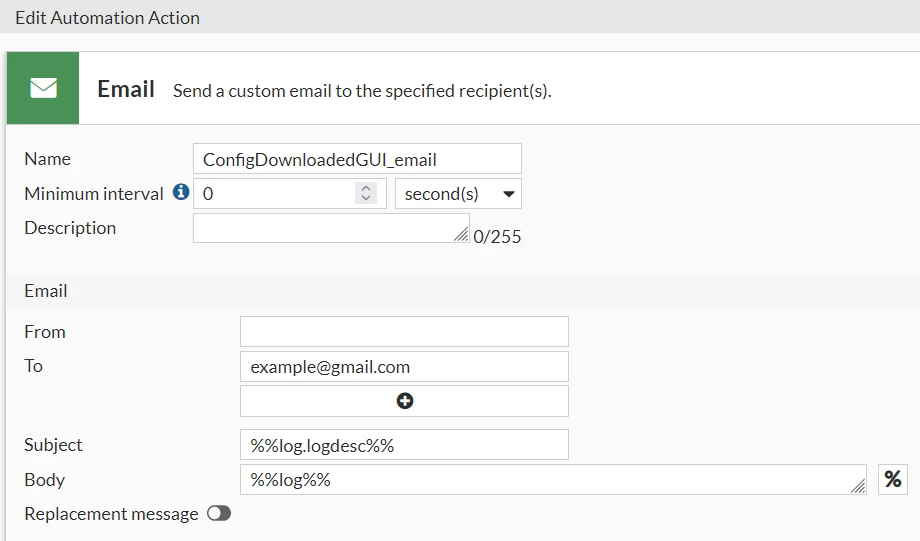

2. Configure an automation action to send an email when the above event is triggered.







   config system automation-action

       edit "ConfigDownloadedGUI_email"

           set action-type email

           set email-to <email address> <----- For example: example@fortinet.com.

           set email-subject "%%log.logdesc%%"

       next

   end

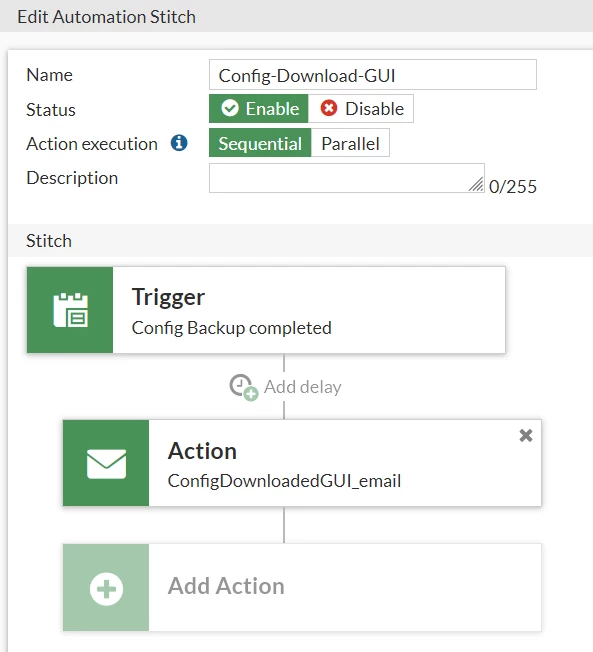

3. Configure an Automation Stitch using the above configured trigger and automation action.







config system automation-stitch

    edit "Config-Download-GUI"

        set trigger "Config Backup completed"

            config actions

                edit 1

                    set action "ConfigDownloadedGUI_email"

                    set required enable

                next

            end

    next

end

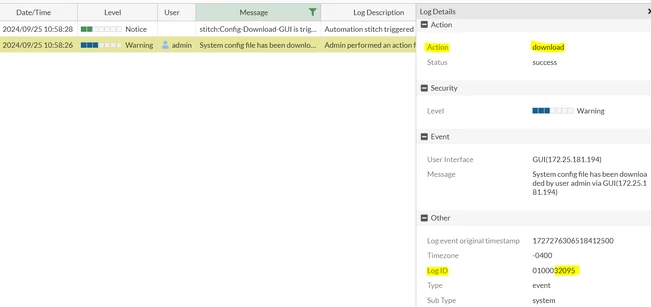

Once triggered, the 'System Events' logs should show the following logs:

Select the log entry to get more details:

date=2024-09-25 time=10:58:26 eventtime=1727276306518412481 tz="-0400" logid="0100032095" type="event" subtype="system" level="warning" vd="root" logdesc="Admin performed an action from GUI" user="admin" ui="GUI(172.25.181.194)" action="download" status="success" msg="System config file has been downloaded by user admin via GUI(172.25.181.194)"

If the automation stitch does not work as expected, use the following debug command to troubleshoot the issue.

diagnose debug reset
diagnose debug application autod -1
diagnose debug console timestamp enable
diagnose debug enable

Open a new CLI window and run the automation stitch using execute auto-script start <script_name> or, in the GUI, right-click the automation stitch and select Test Automation Stitch.

After, collect the debug output and disable the debug processes using the following commands:

diagnose debug disable
diagnose debug reset
