Technical Tip: Configuring an automation stitch to reboot downstream devices in the security fabric

If the device is in a security fabric, an automation stitch can only be configured in the root FortiGate.

The following is the configured script that reboots the devices added in the automation stitch on a weekly basis [every Sunday at 1 AM].

Follow these steps to create an automation stitch via the CLI that schedules reboots for downstream devices:

config system automation-stitch
    edit "Reboot-Test"
        set trigger "Reboot-Test"
            config actions

                edit 1
                    set action "Reboot FortiGate"
                    set required enable
                next
            end
        set destination "Reboot-Test"

    next
end

config system automation-trigger
    edit "Reboot-Test"
        set trigger-type scheduled
        set trigger-frequency weekly
        set trigger-weekday sunday
        set trigger-hour 13
    next
end

config system automation-action
    edit "Reboot FortiGate"
        set description "Reboot this FortiGate."
        set action-type system-actions
        set system-action reboot
        set minimum-interval 300
    next
end

To configure via the GUI, navigate to Security Fabric -> Automation on the root FortiGate and follow these steps:

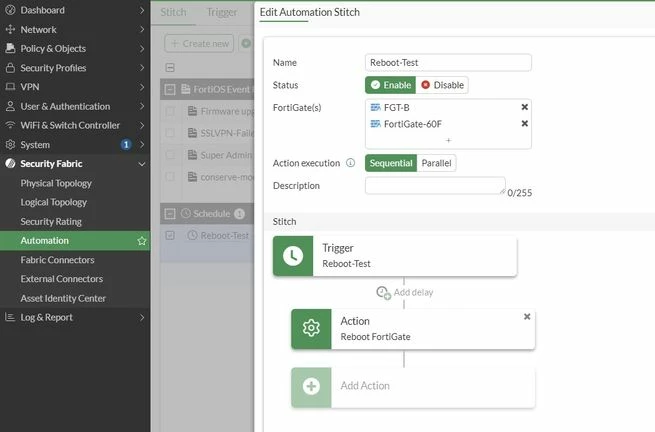

1. Create an automation stitch and select the devices that need to reboot:

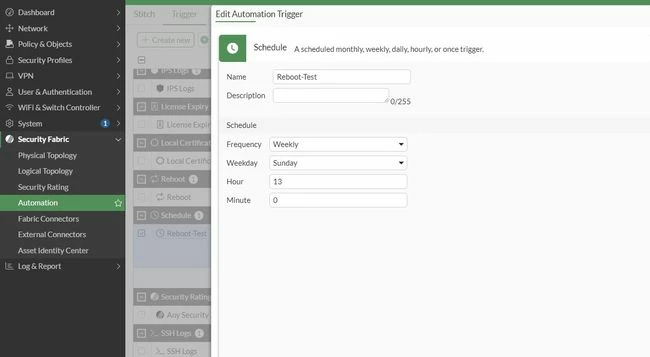

2. Create an automation trigger for rebooting devices:

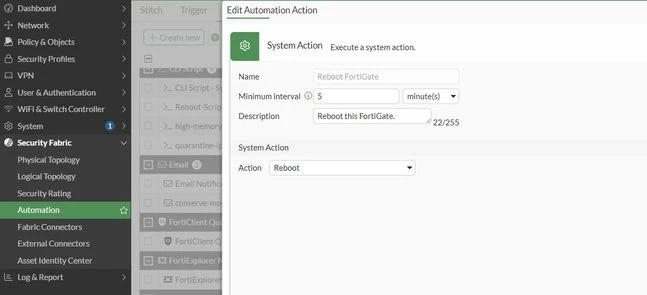

3. Create an automation-action that reboots the devices:

Note: If any downstream device is scheduled for reboot or any time-based trigger/action is configured, the NTP status in downstream devices in security fabric or time zones needs to be the same as the root device in order to trigger it.
