Technical Tip: Configuring a Firewall Policy which is valid only at certain days or hours by using a schedule
Description
This article describes an example of Firewall Policy rules where the Administrator needs to allow all users to fully access the Internet during lunchtime on weekdays.
Solution
Steps for creating Schedule
Via GUI:

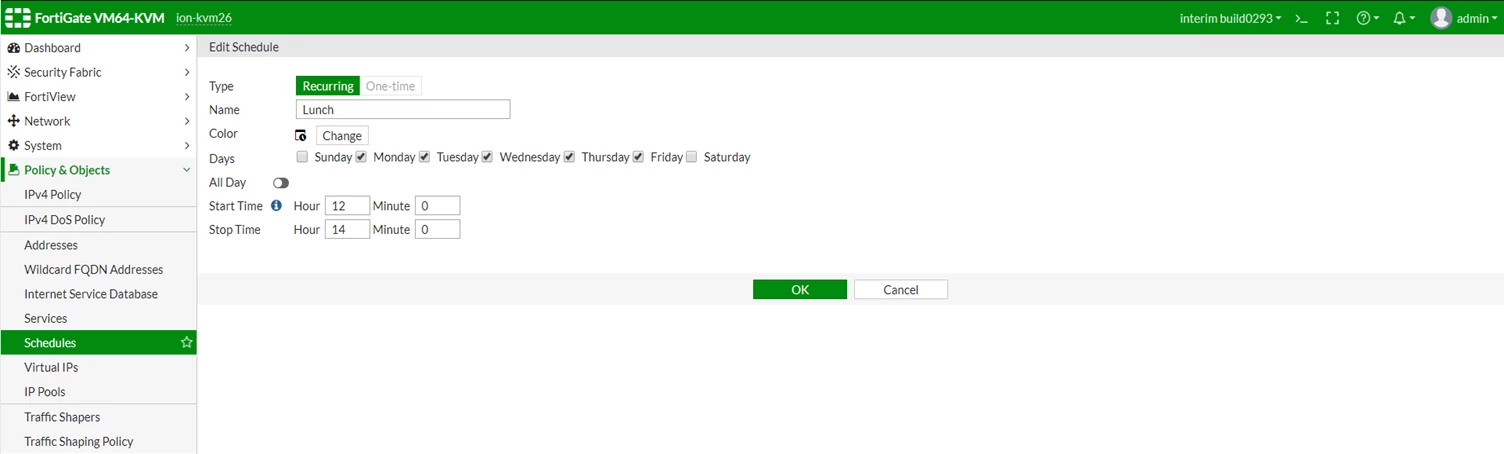

Go to: Policy & Objects > Schedules > Create new > Schedule
This article describes an example of Firewall Policy rules where the Administrator needs to allow all users to fully access the Internet during lunchtime on weekdays.
Solution
Steps for creating Schedule
Via GUI:
Go to: Policy & Objects > Schedules > Create new > Schedule

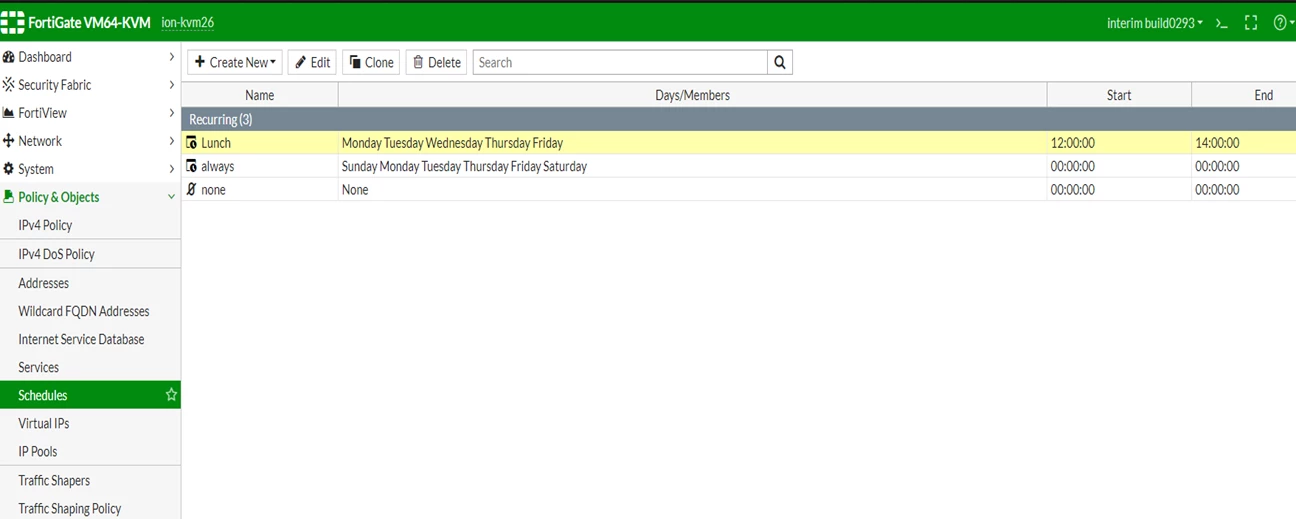

Click 'OK' to save the configuration
Add schedule to the required IPv4 policy.

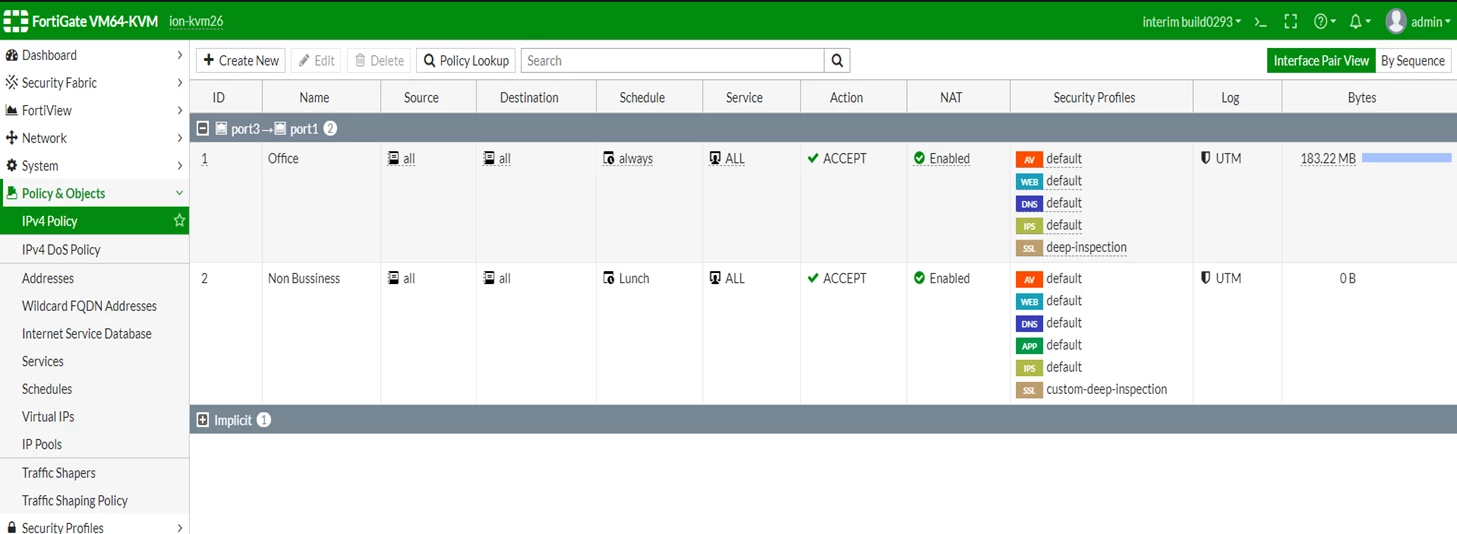

The final GUI Firewall Policy screen is shown below
