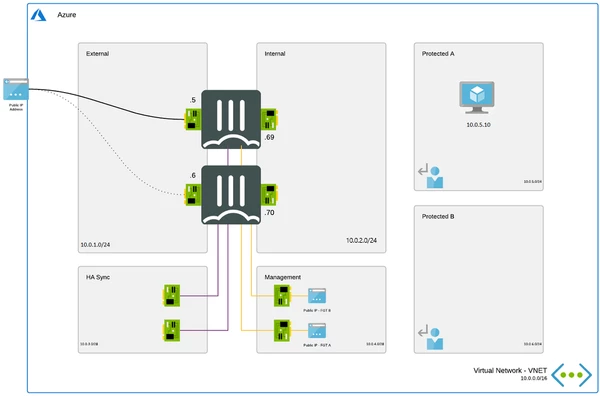

Technical Tip: Configure SDN Connector for Active-Passive HA failover in Azure

Before configuring the SDN Connector, make sure both FortiGates have write access to the necessary Azure resources.

Review the following Admin Guide for details: Access control.

Configure the SDN-Connector on the FortiGates:

On FortiGate A:

config system sdn-connector

    edit "AzureHA"

        set status enable

        set type azure

        set use-metadata-iam enable

        set ha-status enable

        set azure-region global

            config nic

                edit "FGT-A-Nic1"

                    config ip

                        edit "ipconfig1"

                            set public-ip "PublicIP1"

                            set resource-group ''

                        next

                    end

                    config ip <- This section is relevant if more Public IPs are in use.

                        edit "ipconfig2"

                            set public-ip "PublicIP2"

                            set resource-group ''

                        next

                    end

                next

            end

            config route-table

                edit "RouteTable-ProtectedSubnet"

                    config route

                        edit "Default"

                            set next-hop "10.0.2.69"

                        next

                    end

                next

                edit "RouteTable2"     <- If more Route Tables are in use.

                    set subscription-id "Sub2" <- If RouteTable2 is in another subscription.

                    set resource-group "RG2"   <- If RouteTable2 is in another resource group.

                        config route

                            edit "Default"

                                set next-hop "10.0.2.69"

                            next

                        end

                next

             end

end

On FortiGate B:

Use the FortiGate A config for FortiGate B, and change the next-hop to the FortiGate B internal interface IP:

config system sdn-connector

    edit "AzureHA"

        config route-table

            edit "RouteTable-ProtectedSubnet"

                config route

                    edit "Default"

                        set next-hop "10.0.2.70"

                   next

                end

            next

Update:

A new feature in Azure SDN Connector on v7.4.5 allows for a more efficient failover process. It enables the connector to move the private IP address from the primary to the secondary trusted NIC during a failover event.

This eliminates the need to update numerous User Defined Routes (UDRs), as all UDRs can be configured to use the secondary floating IP address as the next hop. When a failover happens, the connector simply switches the secondary floating private IP address to the new primary VM. This streamlined approach is particularly beneficial in environments with a large number of UDRs.

A secondary private IP needs to be added to the FGT-A trusted interface (port2). Then the existing SDN Connector configuration can be updated as follows:

On FortiGate A:

config system sdn-connector

    edit "AzureHA"

        config nic

            edit "FGT-A-Nic2"

                set peer-nic "FGT-B-Nic2"

                    config ip

                        edit "floating-ip"

                            set private-ip "10.0.2.71"

                        next

                    end

...

end

On FortiGate B:

config system sdn-connector

    edit "AzureHA"

        config nic

            edit "FGT-B-Nic2"

                set peer-nic "FGT-A-Nic2"

                    config ip

                        edit "floating-ip"

                            set private-ip "10.0.2.71"

                        next

                    end

...

end

Note:

• Using this new feature, the routing-table part will not be needed in the SDN Connector settings anymore, and it can be removed.
• This feature is mainly used to move a private IP to the trusted interface, but it can also work on the untrusted interface if certain conditions are met. Since only the secondary IP can be moved, the public IP must also be associated with the secondary IP. Both IPs can then be configured in the SDN Connector to move to the new primary FortiGate.

Example:

config system sdn-connector

    edit "AzureHA"

        config nic

            edit "FGT-A-Nic1"                <--- FortiGate-VM Public Interface.

                set peer-nic "FGT-B-Nic1"

                    config ip

                        edit "floating-ip-wan"

                            set private-ip "10.0.2.7"     <--- Secondary Private IP.

                            set public-ip "PublicIP2"     <--- Public IP associated with Secondary IP.

                        next

                    end

         end

end
