Technical Tip: Configuration to use FortiManager as local FDS server
Description
This article describes how to configure FortiGate to use FortiManager as a local FDS server. FortiManager can be operated as a local FDS server when it is in a closed network with no Internet connectivity.
Scope
FortiGate.
The terminology used in this document:
FDS = Antivirus/IPS service.
Solution
This is only a CLI configuration:
config global <---- If VDOM is enabled, run this command.
config system central-management
set include-default-servers disable <----- Disable it.
end
This warning message will appear:
'Warning: The server-list does not contain a server for URL ratings. Add a server entry or enable 'include-default-servers'.
Note: The set include-default-servers should be enabled if FortiManager is not used as a local FDS server. When it's set to 'enable', the FortiGate communicates with public FDS when FortiManager is not available. When set to 'disable', the FortiGate does not communicate with the public FDS even if the FortiManager is not available.
config system central-management
config server-list
edit 1
set server-type update
set addr-type ipv4
set server-address x.x.x.x <----- The FortiManager IP.
next
set fmg-update-port 443 <----- The update port.
end

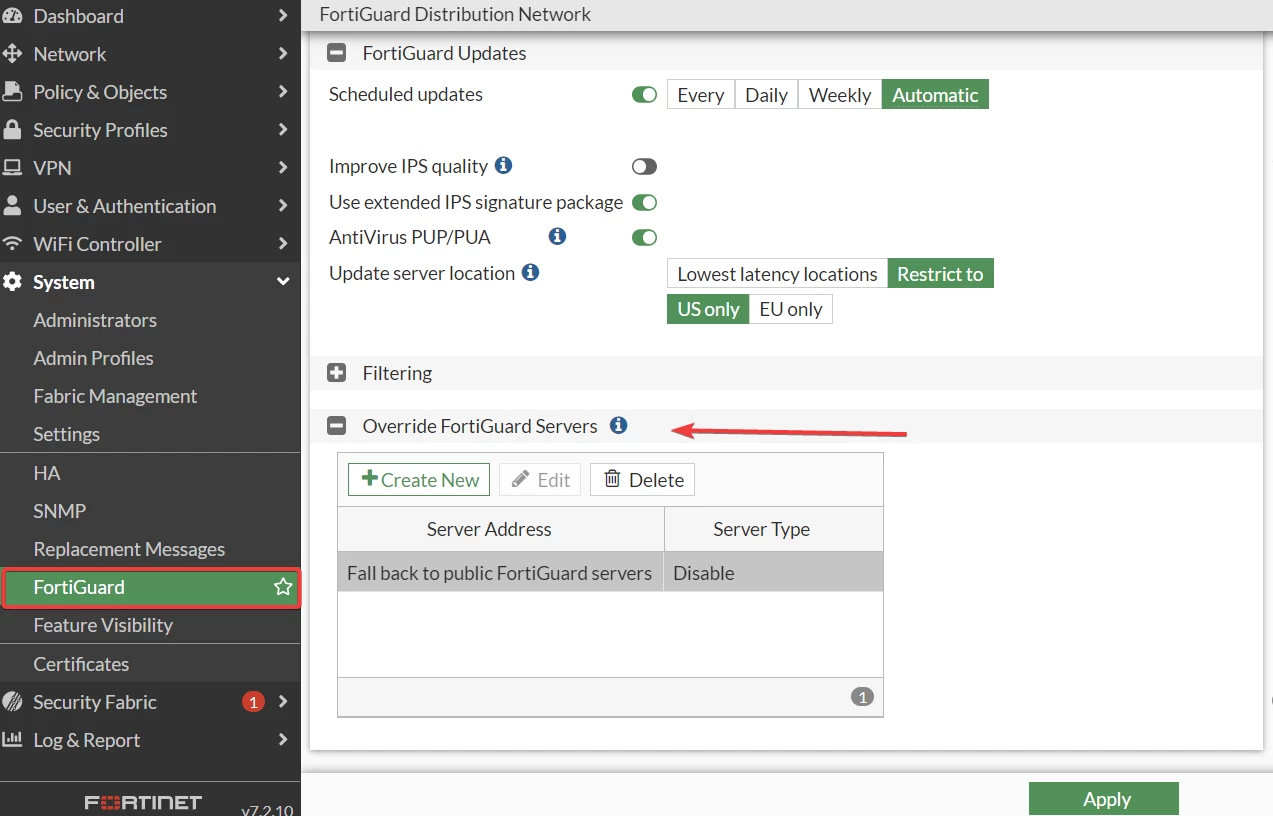

To add override servers from FortiGate GUI: Go to System -> FortiGuard. Scroll down to the Override FortiGuard Servers section.
As provided in the screenshot below:

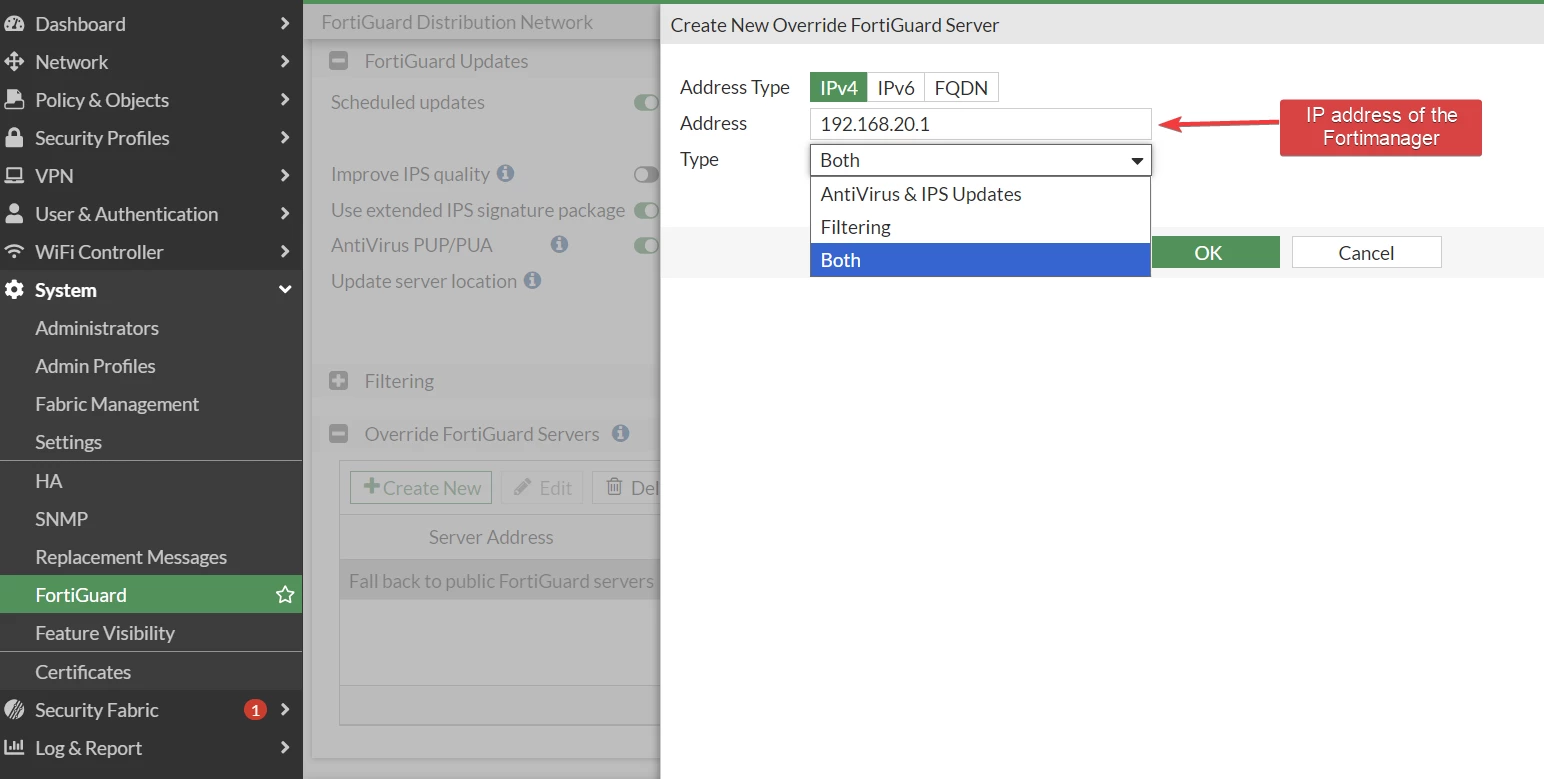

- In the table, select Create New. The Create New Override FortiGuard Server pane opens.
- Select the server address type: IPv4, IPv6, or FQDN, and enter the server address of the selected type in the Address field.
Choose the type of server: AntiVirus & IPS Updates, Filtering, or Both, and select Apply.

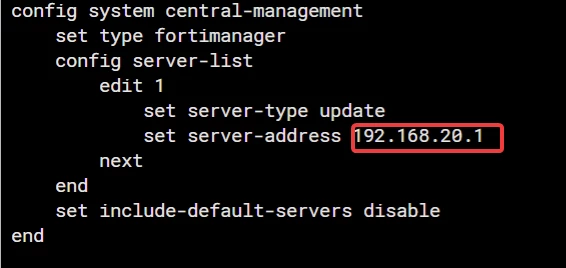

CLI output:
Note: This change to override the default FortiGuard servers reflects only in (config system central-management) and not (config system fortiguard).
