Technical Tip: Changing Interface associated to the Generic Routing Encapsulation (GRE) tunnel

Description

This article describes the changing interface associated to the Generic Routing Encapsulation (GRE) tunnel.

Scope

 FortiGate all models.

Solution

GRE tunnel is always associated to an interface and these are the steps to migrating the GRE tunnel from WAN1 to WAN2 Interface.

• WAN1 -> port1
• WAN2 -> port3
• LAN -> port2

Initial Configuration.

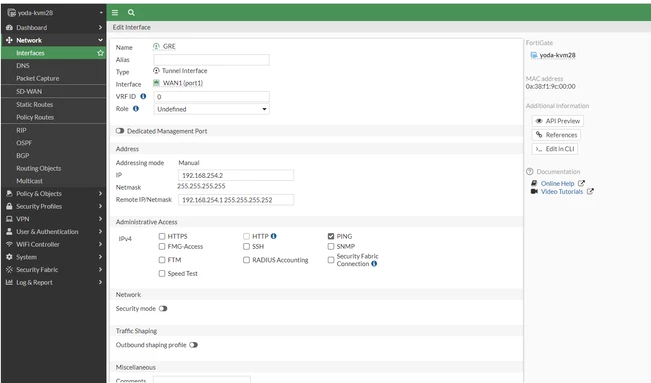

1. GRE Tunnel (GRE) is associated to WAN1 interface.

2. Select Edit in CLI.

config system interface

edit "GRE"

show

config system interface

    edit "GRE"

        set vdom "root"

        set ip 192.168.254.2 255.255.255.255

        set allowaccess ping

        set type tunnel

        set remote-ip 192.168.254.1 255.255.255.252

        set snmp-index 15

        set interface "port1"

    next

 end

Change the interface to port3.

 set interface "port3"

This error will occur when changing the interface.

Entry not found in datasource. Value parse error before 'port3'.

Command fail. Return code -3.

3. To change the interface to port3, run these commands.

config system gre-tunnel

     edit GRE

     show

config system gre-tunnel

     edit "GRE"

        set interface "port1"

        set remote-gw 10.56.241.131

        set local-gw 10.56.241.156

    next

 end

Change the interface and save it using end command.

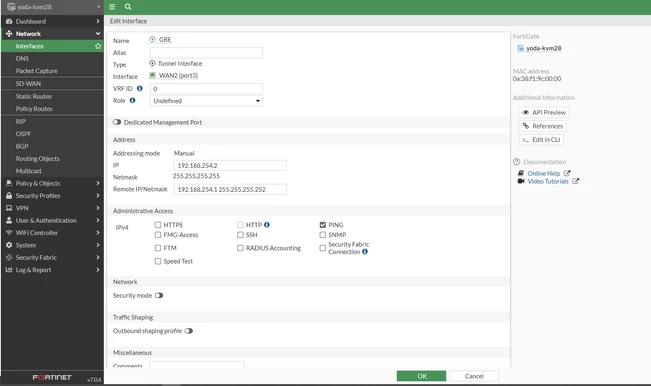

 (GRE) # set interface port3

 (GRE) # end

4. Now the GRE tunnel will be associated to port3.
