Technical Tip: Changes to Central-SNAT after upgrade to 7.6.1+

Starting from FortiOS v7.6.1, Central SNAT policies no longer support individual SD-WAN members as selectable interfaces (only SD-WAN zones and non-SD-WAN interfaces may be selected going forward). When upgrading to v7.6.1, SD-WAN members are removed from Central SNAT polices. See also: 'FortiOS 7.6.1 Release Notes: Policies that use an interface show missing or empty values after an upgrade'.

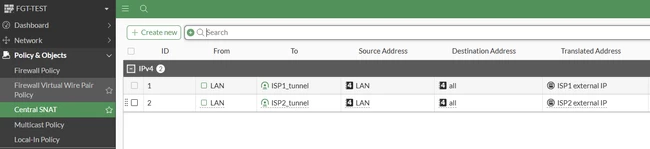

In FortiOS 7.6.0:

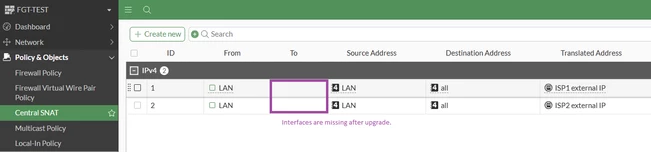

After upgrading to FortiOS 7.6.1 or above, SD-WAN members are removed from existing Central SNAT policies:

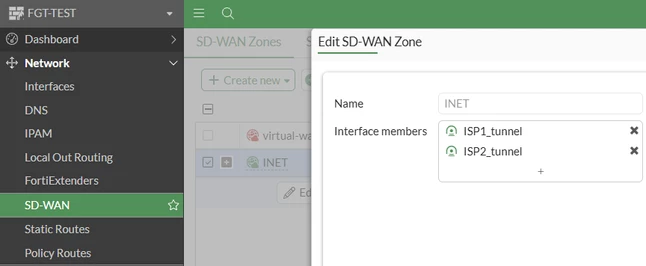

It is possible to emulate the pre-upgrade Central SNAT behavior when using IP Pools. To do this, configure the IP Pool in the CLI and set the associated-interface parameter to the SD-WAN member interface that is associated with the IP Pool, then add IP Pools to the Central SNAT mapping for the SD-WAN Zone. This ensures that traffic will only be Source NAT'd to a given IP Pool address if it is egressing over the associated SD-WAN member interface:

config firewall ippool

    edit "ISP1 external IP"

        set associated-interface "ISP1_Tunnel"

    next

    edit "ISP2 external IP"

        set associated-interface "ISP2_Tunnel"

    next

end

config firewall central-snat-map

    edit 1

        set srcintf "LAN"

        set dstintf "INET"

        set orig-addr "LAN"

        set dst-addr "all"

        set nat-pool "ISP1 external IP" "ISP2 external IP"

    next

end

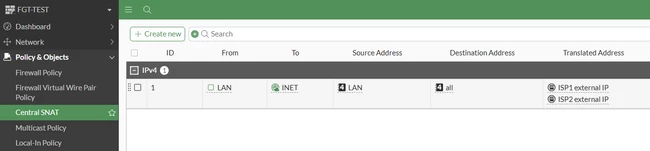

Note: in FortiOS v7.6.1 and 7.6.2, there is a GUI issue which causes SD-WAN Zones not to be visible/available on the Central SNAT configuration menu. The workaround is to perform the configuration changes using the CLI commands above (do not edit/modify the configuration afterwards via GUI). After making the above changes:

The GUI issue is tracked by internal issue ID 1107003 and is resolved in FortiOS v7.6.3 and later, see FortiOS v7.6.3 Release Notes.

Related article:

Technical Tip: How to associate a NAT pool (IP pool) to a physical interface of an SD-WAN
