Technical Tip: Change Multi VDOM to No-VDOM

Revert from Multi-VDOM to No-VDOM gives an error at the cli after applying the following command:

config global
    config system global
        set vdom-mode no-vdom

The above command is hidden, it is necessary to type and run it completely, as it will not be visible if TAB is pressed or under 'show full'.

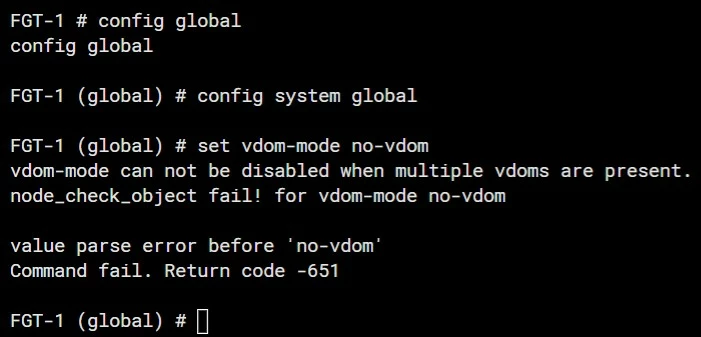

The error 'node_check_object fail! for vdom-mode no-vdom' means another VDOM exists at the firewall.

Use the command 'diagnose sys vd list' to find the VDOM index:

diagnose sys vd list
system fib version=63
list virtual firewall info:
name=root/root index=0 enabled fib_ver=0 rpdb_ver=0 use=41 rt_num=11 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0

name=Test/Test index=3 enabled fib_ver=0 rpdb_ver=0 use=8 rt_num=0 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0

For an explanation, see this article: Technical Tip: How to find the VDOM index ?.

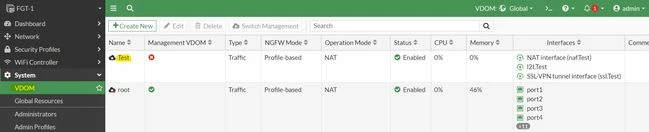

Currently, there are two VDOMs: the 'root' management VDOM and 'Test'. The 'Test' VDOM needs to be deleted. To delete 'Test' VDOM, make sure all the references are removed, then only VDOM can be deleted.

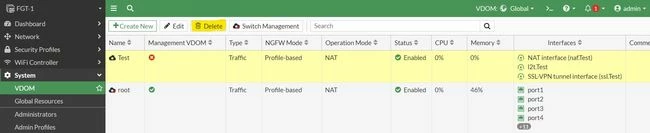

Delete the 'Test' VDOM from the GUI.

The error will cease to appear after removing the non-management VDOM.
