Technical Tip: Certificate authentication for IKEv2 VPN with RADIUS or LDAP user authentication

Similar to SSL VPN, FortiOS IKEv2 IPsec VPN supports client authentication using a certificate in conjunction with user/password-based authentication.

Limitation: FortiOS only supports certificate checking as an additional factor for FortiClient endpoints. When a third-party VPN such as StrongSwan or AnyConnect is used, only primary password authentication is enforced.

Related configuration articles:

• Certificate authentication with IKEv1 and XAUTH: Technical Tip: IPSec Remote Access using Certificate + Username/Password Authentication for User-Based Access Control.
• Certificate authentication with IKEv2 and SAML: Technical Tip: Certificate Authentication for FortiClient remote access dialup IPsec clients with SAML user authentication.

Configuration:

Import the certificate of the CA that signs user certificates to the FortiGate as a new remote CA certificate. See the CA certificate. The CA certificate will have an automatically generated name. It is recommended to rename the certificate after import for ease of administration.

config vpn certificate ca
rename CA_Cert_1 to "root-g1.users.example.com"

Configure a user peer referencing the remote CA. Optionally add a subject match to search the user certificate common name for a particular string.

config user peer

    edit "peer_admin-ou"

        set ca "root-g1.users.example.com"

        set subject "OU=ADMIN" <-- optional

    next

end

Import a trusted local certificate to the FortiGate. If the firewall already has a trusted SSL certificate, for example, one used for an SSL VPN server, this step can be skipped and the existing certificate applied to the IPsec VPN.

• GUI: Technical Tip: FortiGate HTTPS/SSL Certificate Installation (PFX, PKCS12, PEM and CER).
• CLI: Uploading a certificate using the CLI.

The certificate is named automatically when created, but can be renamed. This is for administrative purposes only and does not affect certificate operation.

config vpn certificate local
rename vpn.sitea.example.com_1 to 2025_vpn.sitea.example.com

Configure an IKEv2 dial-up tunnel referencing the local certificate.

config vpn ipsec phase1-interface

    edit "RA_VPN_ADMIN"

        set type dynamic
        set interface "port1"
        set ike-version 2
        set authmethod signature
        set peertype peer
        set net-device disable
        set mode-cfg enable
        set proposal aes256-sha256
        set ip-fragmentation pre-encapsulation
        set dpd on-idle
        set dhgrp 20 14 5
        set eap enable
        set eap-identity send-request
        set eap-cert-auth enable
        set authusrgrp '' <----- If configuring a user group here, do not set one on firewall policies later.
        set certificate "2025_vpn.sitea.example.com"
        set peer "peer_admin-ou"
        set ipv4-start-ip 10.253.0.100
        set ipv4-end-ip 10.253.0.200
        set dns-mode auto
        set ipv4-split-include "Admin Split Tunnel Addresses" <----- Address or address group containing all IP ranges VPN users require.
        set dpd-retryinterval 60

    next

end

config vpn ipsec phase2-interface

    edit "p2_RA_VPN_ADMIN"

        set phase1name "RA_VPN_ADMIN"
        set proposal aes256-sha256
        set dhgrp 20 14 5

    next

end

Configure users and user group(s) based on the user authentication method.

RADIUS users:

If a RADIUS server is configured for an IPsec dial-up gateway, other RADIUS servers, LDAP groups, or local users are not supported. See Technical Tip: IKEv2 dialup gateway with RADIUS user groups does not support other authentication servers.

• GUI: See the article Technical Tip: Authentication, Remote server group match of user group configuration with RADIUS server user.
• CLI:

config user radius

    edit "RADIUS"

        set server "10.250.0.21"
        set secret <radius shared secret>
        set source-ip "10.250.0.1"
        set require-message-authenticator {enable | disable} <----- See this article: Troubleshooting Tip: RADIUS authentication failure after the firmware upgrade to v7.2.10/v7.4.5/v7.6.1.

    next

end

config user group

    edit "VPN User Group"

        set member "RADIUS"

            config match <-- Optional. By default, checks Vendor 12356, VSA 26.

                edit 1

                    set server-name "FAC"

                    set group-name "General Access Group"

                next

            end

    next

end

LDAP users:

• GUI: See the article: User Groups.
• CLI:

config user ldap

    edit "LDAP"

        set server "10.250.0.21"
        set cnid "cn"
        set dn "dc=example,dc=com"
        set type regular
        set username "cn=example-fgt.service,ou=it,dc=example,dc=com"
        set password <password for LDAP user example-fgt.service>

    next

end

config user group

    edit "VPN User Group"

        set member "LDAP"

            config match <-- Optional.

                edit 1

                    set server-name "LDAP"

                    set group-name "cn=General Access Group,ou=test_users,dc=example,dc=com"

                next

            end

    next

end

Note:

Using LDAP with IKEv2 IPsec VPN requires FortiClient v7.4.3 and later, as well as advanced FortiClient configuration. See the article Technical Tip: How to enable EAP-TTLS for IPSec IKEv2 tunnels in VPN-only (unlicenced) FortiClient.

Local users:

• GUI: See Users.
• CLI:

config user local

    edit "jsmorth"

        set type password

        set passwd <password>

    next

    edit "mdijk"

        set type password

        set passwd <password>

    next

end

config user group

    edit "VPN User Group"

        set member "jsmorth" "mdijk"

    next

end

Configure one or more firewall policies referencing an IPsec tunnel and a user group.

config firewall policy

    edit <index>

        set name "RA_VPN_ADMIN General Access"
        set srcintf "RA_VPN_ADMIN"
        set dstintf "port2"
        set action accept
        set srcaddr "IPsec VPN Admin Clients" <----- Address object containing the 'ipv4-start-ip' to 'ipv4-end-ip' range. configured on phase1-interface.
        set dstaddr "Admin General Access"
        set schedule "always"
        set service "PING" "HTTPS"
        set logtraffic all

        set groups "VPN User Group"

    next

end

Multiple firewall policies can be configured, and multiple user groups can be used, as stated above, a RADIUS server cannot be used for the same IPsec dialup gateway as other authentication methods.

Provision certificates on the VPN client.

For domain-joined endpoints, this may be done automatically via GPO. For an example of how to manually import a certificate using Windows, see this document: Importing user certificate into Windows 10.

The endpoint must also trust the certificate configured on the FortiOS phase1-interface.

config vpn ipsec phase1-interface

    edit "RA_VPN_ADMIN"

        set certificate "2025_vpn.sitea.example.com"

    next

end

• If the FortiGate’s server certificate is signed by a private CA, ensure this private CA is imported to the workstation certificate store. For an example using GPO, see Technical Tip: How to distribute a Fortinet CA SSL certificate on a local domain on a Windows Server.
• For FortiClient macOS endpoints, ensure the root CA and any intermediate CA certificates signing the FortiGate's server certificate are installed in the endpoint's keychain. Both the root and any intermediate CA certificates are required. See Add certificates to a keychain using Keychain Access on Mac.
• For FortiClient Linux endpoints, ensure the root CA and any intermediate CA certificates signing the FortiGate's server certificate are installed in the CA certificate store. Both the root and any intermediate CA certificates are required. To add the certificates, refer to the appropriate third-party documentation for the Linux version in use.
• If 'Fortinet_Factory' is used in Phase1 of IPSec, be sure to install 'Fortinet_CA' & 'Fortinet-Sub_CA', being previoulsy installed to the workstation certificate store (client computer).

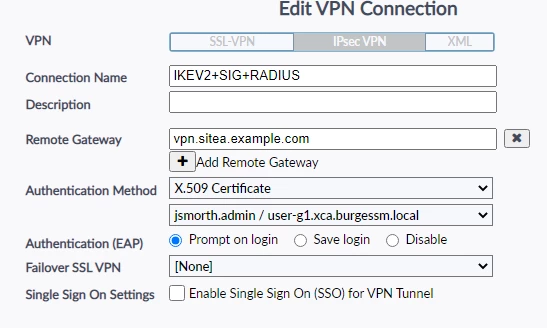

Configure FortiClient Remote Access connection.

It is strongly recommended to configure the remote gateway using an FQDN resolving to the FortiGate's external IP address and enable cert_subjcheck in XML configuration, see IKE settings. Without this configuration, FortiClient will accept any trusted publicly signed certificate as valid for the Remote Gateway, regardless of the CN or SAN of the certificate.

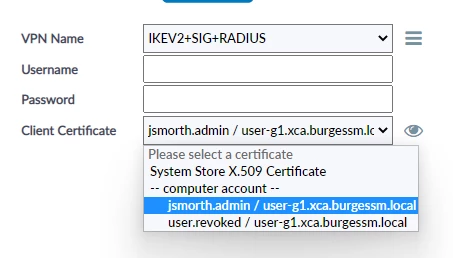

Computer Certificate authentication:
By default, a standard Windows user can view existing computer certificates, but cannot authenticate to remote IPsec dial-up gateways using these certificates unless explicitly enabled in the VPN connection profile.

To enable a non-administrator Windows account to use computer account certificates for FortiClient IPsec VPN authentication, enable 'run_fcauth_system' in the FortiClient XML configuration. See IKE Settings.

<run_fcauth_system>1</run_fcauth_system>

Alternatively, in FortiClient EMS VPN Tunnel Advanced Settings, enable 'Allow Non-Administrators to Use Machine Certificates'. See Configuring and applying a Remote Access profile for an example in the context of pre-logon VPN.

Related documents:

• IPsec IKEv2 VPN 2FA with EAP and certificate authentication
• Using single or multiple user groups for user authentication
