Technical Tip: Block ICMP request originated from the firewall

This article describes the case where it is required to block ICMP requests originating from the Firewall to specific destinations/geolocations. A FortiGate administrator can use interface-policy along with a custom-IPS signature.

This article describes how to configure FortiGate to block ICMP requests towards 8.8.8.8.

1. Configuring IPS signatures to match ICMP requests:

config ips custom

    edit "ICMP-Block-custom"

        set signature "F-SBID( --attack_id 1234; --name ICMP-Block-          custom; --protocol ICMP; --flow from_client; )"

        set action block

        set comment ''

    next

end

2. Configuring IPS sensor (rule numbers under 'set rule' are equal to attack_id from above):

config ips sensor

    edit "Block-ICMP-Out"

        config entries

            edit 1

                set rule 1234

                set status enable

                set log-packet enable

                set action block

            next

        end

    next

end

3. Create an address entry for the destination IP:

config firewall address

    edit "8.8.8.8"

        set subnet 8.8.8.8 255.255.255.255

    next

end

4. Configuring interface-policy and applying policy to FortiGate's outgoing interface:

config firewall interface-policy

    edit 1

        set interface "OutSide"

        set srcaddr "all"

        set dstaddr "8.8.8.8"

        set service "ALL_ICMP"

        set ips-sensor-status enable

        set ips-sensor "Block-ICMP-Out"

    next

end

Verification:

Before applying firewall interface-policy:

execute ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: icmp_seq=0 ttl=112 time=17.1 ms
64 bytes from 8.8.8.8: icmp_seq=1 ttl=112 time=17.4 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=112 time=17.2 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=112 time=17.2 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=112 time=17.3 ms

--- 8.8.8.8 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 17.1/17.2/17.4 ms

After applying the firewall interface-policy:

execute ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8): 56 data bytes

--- 8.8.8.8 ping statistics ---
5 packets transmitted, 0 packets received, 100% packet loss

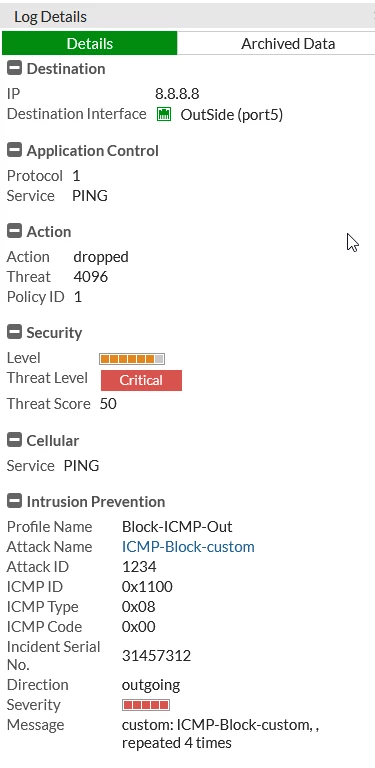

GUI verification: Log & Report -> Intrusion Prevention:

Note: ICMP timestamps can also be blocked using the 'local-in policy' if it is destined to the FortiGate interface. For detailed steps, refer to this KB Article: Technical Tip: Block ICMP timestamp on FortiGate interface while keeping ping

enabled.
