Technical Tip: BGP aggregate-address overrides learned routes and installs a summary Null route

Description

This article describes how, when aggregate-address is configured on a FortiGate, the device may generate a locally originated summary route for a prefix that is also learned from a BGP neighbor. In this scenario, the locally generated aggregate may be selected as the best path during BGP decision processing, resulting in the route being installed in the routing table as a Null (discard) route, even though a valid path is still being received.

Scope

 FortiGate.

Solution

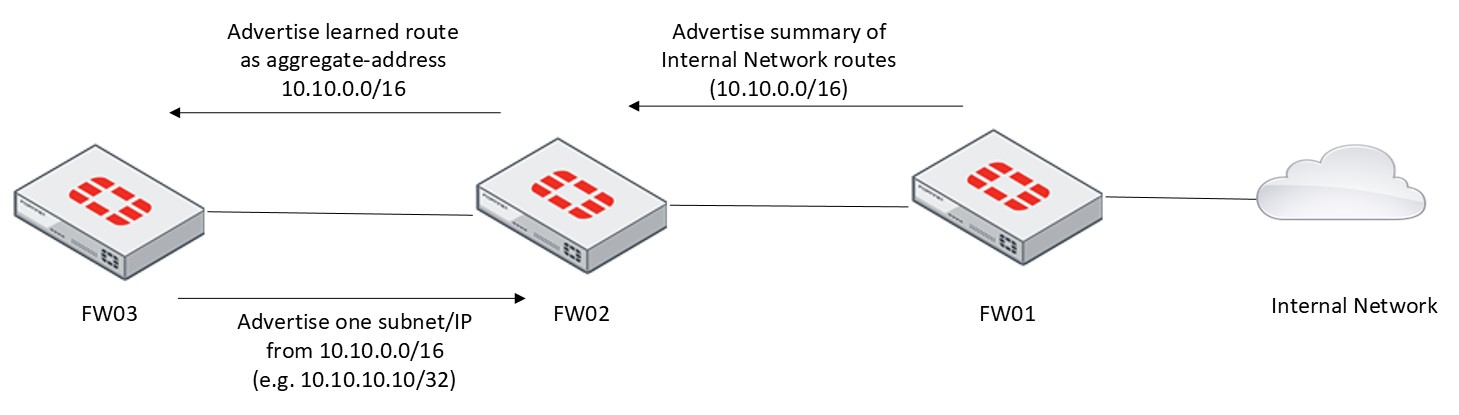

Scenario description:

• FW01 advertises internal network routes and summarizes them as a supernet (for example, 10.10.0.0/16).

• FW02 learns this supernet (10.10.0.0/16) from FW01 via BGP.

• FW02 is configured with aggregate-address 10.10.0.0/16 and advertises the summary route to FW03.

• FW03 advertises a more specific route (for example, 10.10.10.10/32) that falls within the same supernet (10.10.0.0/16) back to FW02.


Result:

• When FW02 receives the more specific route (/32), it becomes a contributing route for the configured aggregate.

• FW02 generates a local aggregate route for 10.10.0.0/16.

• Due to BGP best-path selection (higher weight for locally originated routes), the aggregate route is selected as the best path.

• The routing table on FW02 is updated as follows: B 10.10.0.0/16 [200/0] is a summary, Null, 00:00:57, [1/0].

As a result, traffic destined for 10.10.0.0/16 may be dropped (blackholed), even though a valid path is still learned from FW01.

Verification:

Run the following commands on FW02:

get router info bgp network 10.10.0.0/16

Example output:

VRF 0 BGP routing table entry for 10.10.0.0/16
Paths: (2 available, best #1, table Default-IP-Routing-Table)
Advertised to non peer-group peers:

172.31.180.253 172.31.183.2
Original VRF 0
Local, (aggregated by 65000 172.31.180.1)
0.0.0.0 from 0.0.0.0 (172.31.180.1)
Origin IGP, localpref 100, weight 32768, valid, aggregated, local, atomic-aggregate, best
Advertised Path ID: 1

Last update: Thu Apr 30 00:17:06 2026
Original VRF 0
65180
172.31.180.253 from 172.31.180.253 (192.168.31.0)
Origin IGP metric 0, localpref 100, valid, external
Last update: Wed Apr 29 23:42:06 2026

Check the routing table:

get router info routing-table all | grep 10.10.0.0

B 10.10.0.0/16 [200/0] is a summary, Null, 00:08:28, [1/0]

Root cause:

When a more specific route (for example, /32) is received, it becomes a contributing route for the configured aggregate.

• FortiGate generates a locally originated BGP aggregate route:

Marked as aggregated and local

Installed with a Null (discard) next-hop

• BGP evaluates multiple paths for the same prefix. For 10.10.0.0/16, the candidates are:

Local aggregate route: Weight 32768

Learned route (from FW01): Weight 0

• Since weight is the first attribute evaluated in the BGP best path selection process, the locally generated aggregate is always preferred.

• When a BGP router generates an aggregate, a Null route is installed as a loop-prevention mechanism. This ensures that traffic destined for unknown sub-prefixes within the aggregate is safely discarded instead of potentially looping.

Note: Administrative Distance (AD) is applied after BGP best-path selection and does not influence which BGP path is selected.

Solution: This issue can be resolved using one of the following methods:

1. Remove aggregate-address.

If the FortiGate is already learning the supernet from an upstream device, local aggregation of the same prefix should be avoided. It can be removed under bgp configuration:

config router bgp
  config aggregate-address
    delete <ID>

2. Adjust weight.

The learned route can be preferred by assigning it a higher weight than the locally generated aggregate.

Example configuration:

config router route-map
    edit "ChangeWeight"
        config rule
            edit 2
                set set-weight 33000
            next
        end

config router bgp
    config neighbor
        edit "172.31.180.253"
            set route-map-in "ChangeWeight"
end

Note: Modifying weight may introduce additional complexity in troubleshooting and should be used with caution.

Conclusion:

When aggregate-address is configured, FortiGate may generate a local summary route that overrides a learned route due to higher BGP weight. This behavior is expected but can lead to unintended traffic blackholing if not properly designed.
