Technical Tip: Behavior change of SD-WAN member order using lowest cost (SLA) algorithm

Description

This article describes the behavior modification of how FortiOS determines the SD-WAN member order when using the Lowest Cost (SLA) Algorithm.

Scope

FortiGate v6.4.10 and v7.0.9 and above.

Solution

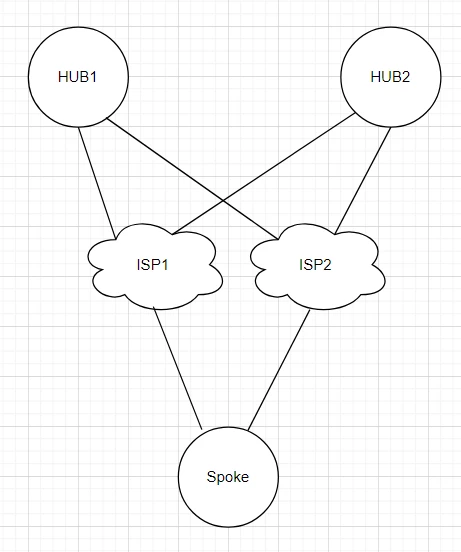

The scenario is as explained below:


Spoke will establish an IPsec tunnel to both hubs on both ISP links, so it will have 4 IPsec tunnels.

There are HUB1-ISP1, HUB1-ISP1, HUB2-ISP1, and HUB2-ISP2.

Two performance SLAs are created on the spoke to the server behind each HUB:

Spoke # diagnose sys sdwan health-check
Health Check(HUB1):
Seq(1 HUB1-ISP1): state(alive), packet-loss(0.000%) latency(0.394), jitter(0.046), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(2 HUB1-ISP2): state(alive), packet-loss(0.000%) latency(0.295), jitter(0.040), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Health Check(HUB2):
Seq(3 HUB2-ISP1): state(alive), packet-loss(0.000%) latency(0.298), jitter(0.045), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(4 HUB2-ISP2): state(alive), packet-loss(0.000%) latency(0.258), jitter(0.040), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1

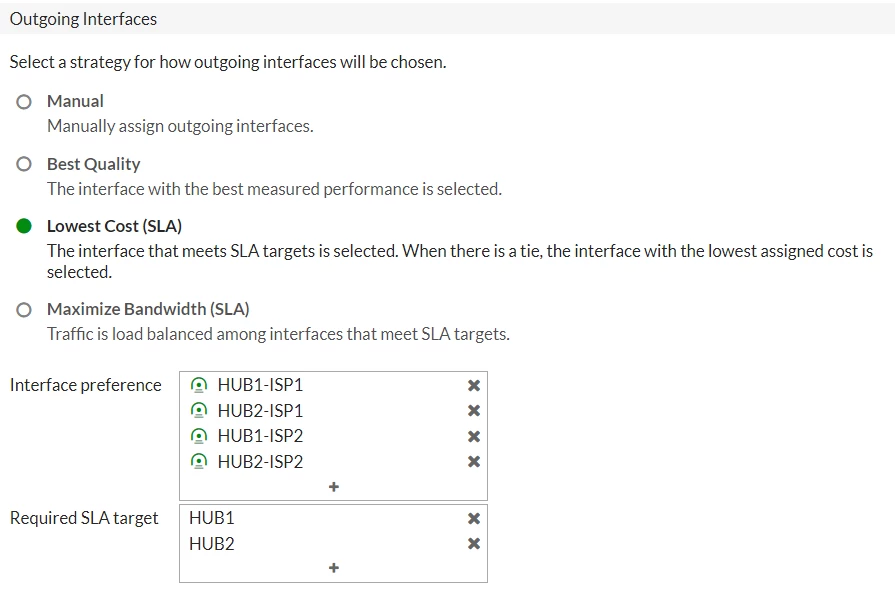

The expected order of SD-WAN members is:

1. HUB1-ISP1.

2. HUB2-ISP1.

3. HUB1-ISP2.

4. HUB2-ISP2.

When both SLA targets are met, the order of the outgoing interface will follow the order of interface preference:

Spoke # diagnose sys sdwan service
Service(1): Address Mode(IPV4) flags=0x200
Gen(1), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(sla), sla-compare-order
Members(4):
1: Seq_num(3 HUB1-ISP1), alive, sla(0x3), gid(0), cfg_order(0), cost(0), selected
2: Seq_num(5 HUB2-ISP1), alive, sla(0x3), gid(0), cfg_order(1), cost(0), selected
3: Seq_num(4 HUB1-ISP2), alive, sla(0x3), gid(0), cfg_order(2), cost(0), selected
4: Seq_num(6 HUB2-ISP2), alive, sla(0x3), gid(0), cfg_order(3), cost(0), selected
Src address(1):
0.0.0.0-255.255.255.255

Dst address(1):
0.0.0.0-255.255.255.255

This is the behavior on v6.4.10.

On version 7.0.9, the default order is changed. How to assign the SLA target is also considered.

With the same configuration, this is the order:

Spoke # diagnose sys sdwan service
Service(1): Address Mode(IPV4) flags=0x200 use-shortcut-sla
Gen(4), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(sla), sla-compare-order
Members(4):
1: Seq_num(1 HUB1-ISP1), alive, sla(0x1), gid(0), cfg_order(0), cost(0), selected
2: Seq_num(2 HUB1-ISP2), alive, sla(0x1), gid(0), cfg_order(2), cost(0), selected
3: Seq_num(3 HUB2-ISP1), alive, sla(0x2), gid(0), cfg_order(1), cost(0), selected
4: Seq_num(4 HUB2-ISP2), alive, sla(0x2), gid(0), cfg_order(3), cost(0), selected
Src address(1):
0.0.0.0-255.255.255.255

Dst address(1):
0.0.0.0-255.255.255.255

If the HUB2 SLA target is put first, the order will change:

Spoke # diagnose sys sdwan service
Service(1): Address Mode(IPV4) flags=0x200 use-shortcut-sla
Gen(1), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(sla), sla-compare-order
Members(4):
1: Seq_num(3 HUB2-ISP1), alive, sla(0x1), gid(0), cfg_order(1), cost(0), selected
2: Seq_num(4 HUB2-ISP2), alive, sla(0x1), gid(0), cfg_order(3), cost(0), selected
3: Seq_num(1 HUB1-ISP1), alive, sla(0x2), gid(0), cfg_order(0), cost(0), selected
4: Seq_num(2 HUB1-ISP2), alive, sla(0x2), gid(0), cfg_order(2), cost(0), selected
Src address(1):
0.0.0.0-255.255.255.255

Dst address(1):
0.0.0.0-255.255.255.255

Note: Beginning with FortiOS version 7.4.4, the 'diagnose sys sdwan service' command has been split into two distinct commands to handle IPv4 and IPv6 separately:

IPv4: 'diagnose sys sdwan service4'
IPv6: 'diagnose sys sdwan service6'

To make sure that the order of the outgoing interface follows the order of interface preference on SD-WAN rules, it is necessary to change the 'sla-compare-method' option from 'order' to 'number', replacing '<method>' in the example below.

• 'order' will compare SLA value based on the order of health-check.

• 'number' will compare SLA value based on the number of satisfied health-checks.

config system sdwan
   config service
      edit 1
         set sla-compare-method <method>
