Technical Tip: Automation stitch with message filter from Event Logs

Description

This article describes how to configure an automation stitch using message filters derived from event logs.

Scope

FortiGate.

Solution

In the following example, an automation stitch is configured to monitor a specific BGP neighbor going down or up. When such an event occurs, an email notification is sent by filtering for the particular neighbor from the router event logs.

Step 1: Create an automation stitch:

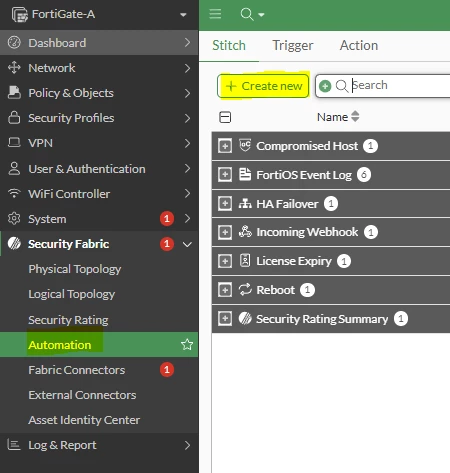

• Go under Security Fabric -> Automation -> Create New.

Step 2: Create an Automation-trigger:

• Assign a name to 'automation-stich'.

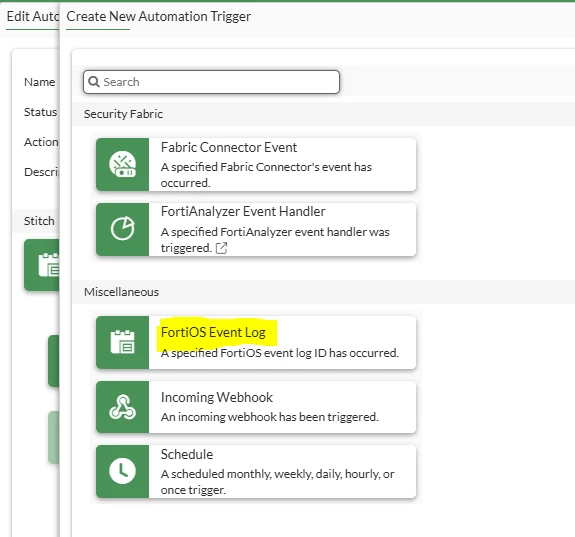

• Go under 'Trigger' -> Select 'Create new' -> Select 'FortiOS Event Log'.

• Assign a name to 'automation-trigger'.

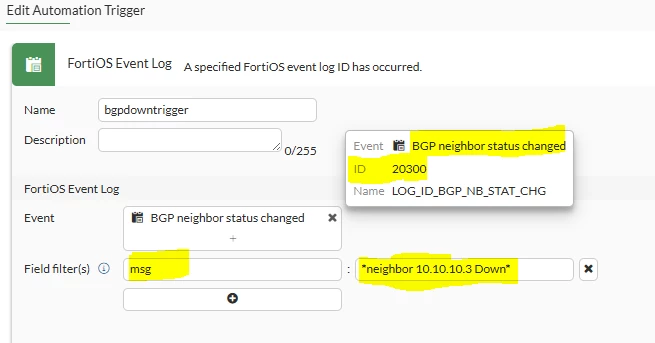

• Select the EVENT -> 'BGP neighbor status changed, it monitors log ID: 20300/
• Specify Field Filter ->  Field Name : 'msg"  and Value : '*neighbor 10.10.10.3 Down*'
• Select 'OK' and select the respective entry.

Step 3: Create an Automation Action.

• Select 'Action' and select 'Create'.

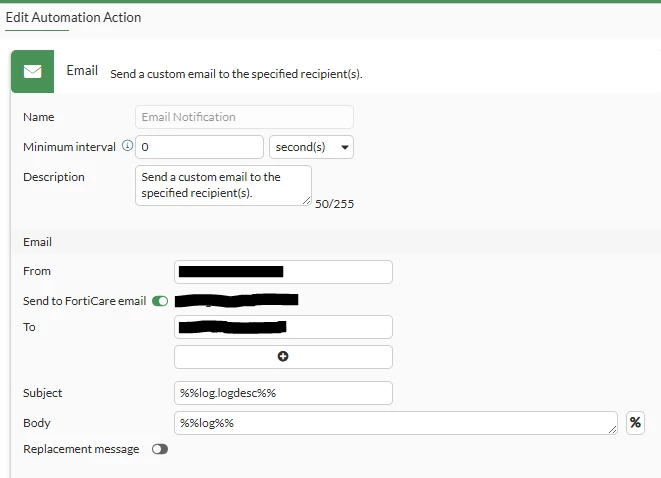

• Select the 'Email' option under the Notification section.
• Specify the respective fields.
• Select 'OK' and select the respective action entry.

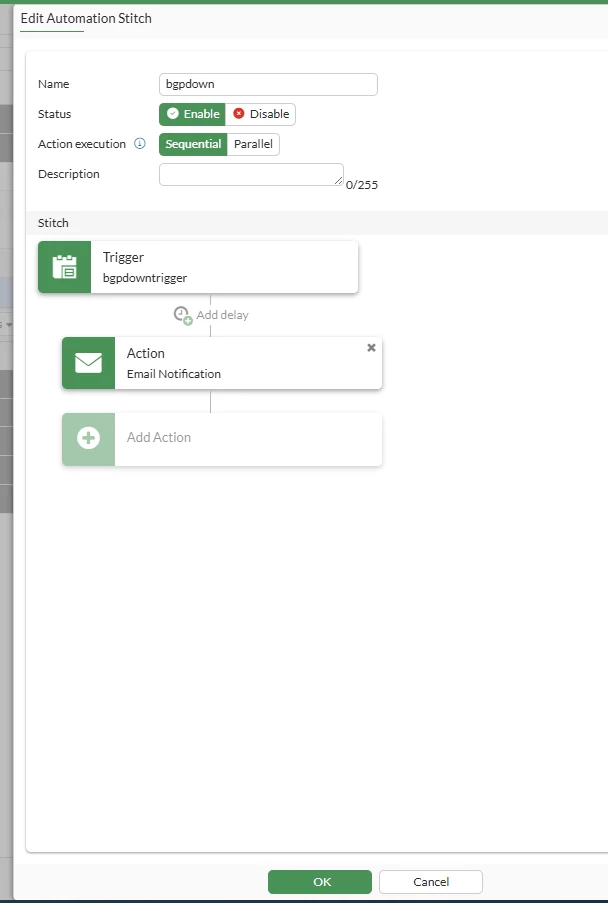

Once configured, select 'OK' and verify the automation stitch.

CLI Reference:

config system automation-trigger

    edit "automation-trigger"

        set event-type event-log

        set logid 20300

            config fields

                edit 1

                    set name "msg"

                    set value "*neighbor 10.10.10.3 Down*"

                next

            end

    next

end

config system automation-action

    edit "Email Notification"

        set action-type email

        set email-to "abc@gmail.com"

        set email-from "abcdef@abc.com"

        set email-subject "%%log.logdesc%%"

        set message "%%log%%"

    next

end

config system automation-stitch

    edit "automation-stich"

        set trigger "automation-trigger"

            config actions

                edit 1

                    set action "Email Notification"

                    set required enable

                next

            end

end

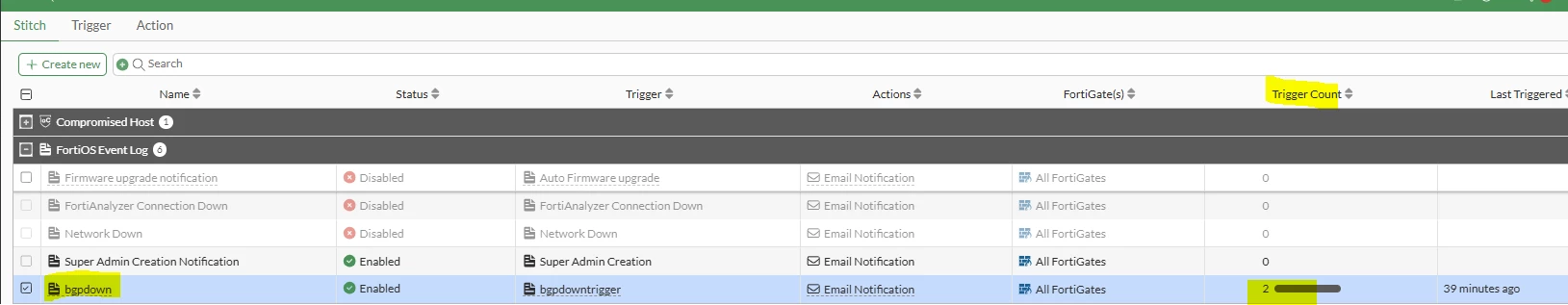

Verification:
