Technical Tip: Allow all website using static url filter without using Fortiguard category based filter

Forum|Forum|1 year ago
October 8, 2024
0 replies
1982 views

Description

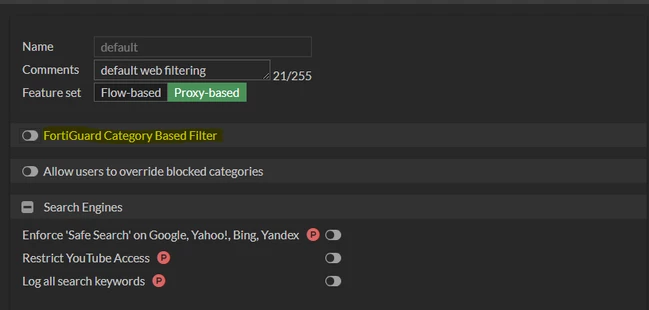

This article describes how to allow all websites using a static URL filter when the option FortiGuard category-based filter is disabled.

Scope

FortiGate.

Solution

Enable the URL filter option under the Static URL filter.

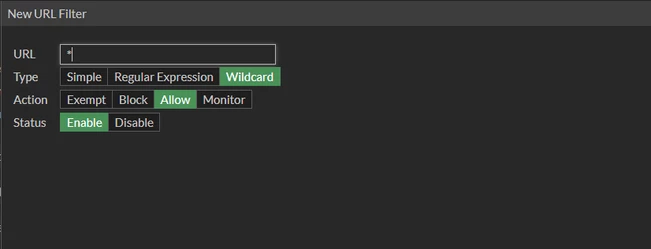

Select 'Create New' to create a new entry in the URL filter.
Select 'Wildcard'.
Set Action 'Allow' with Status Enable.
In the URL field, keep *, which means it will allow anything.

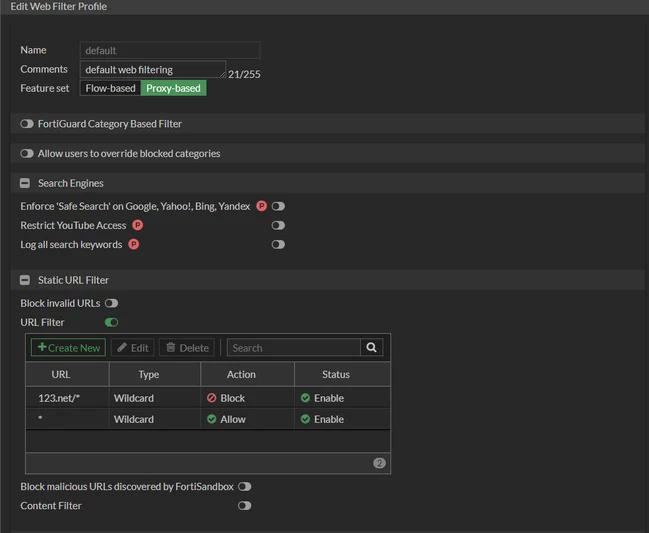

The profile has been configured in policy, and all the traffic will be allowed. To block certain websites, create the URL filter entry above the allow rule.

In this example, create the entry to block website 123.net and later drag the entry above the first entry.

CLI reference:

config webfilter urlfilter
    edit 1
        set name "Auto-webfilter-urlfilter_xaoaep1xc"
      config entries
              edit 1
                  set url "123.net/*"
                  set type wildcard
                  set action block
              next
              edit 2
                  set url "*"
                  set type wildcard
                  set action allow
              next
          end
      next

end

config webfilter profile
    edit "default"
        set comment "Default web filtering."
        set feature-set proxy
          config web
              set urlfilter-table 1
            set safe-search url header
          end

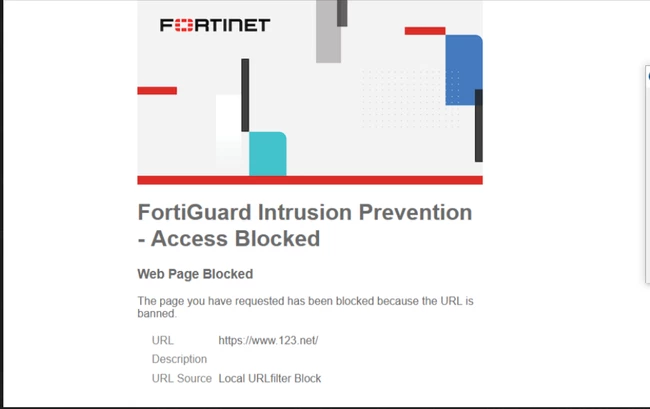

Additionally, check the forward logs or web filter security event to verify if the website is being blocked:

date=2024-10-07 time=19:40:13 eventtime=1728348013086626754 tz="-0500" logid="0315012544" type="utm" subtype="webfilter" eventtype="urlfilter" level="warning" vd="root" urlfilteridx=2 urlfilterlist="Auto-webfilter-urlfilter_7yt7kaqvq" policyid=1 poluuid="68f35182-c282-51ed-aaa2-77125bd2803c" policytype="policy" sessionid=848250 srcip=172.16.254.200 srcport=63908 srccountry="Reserved" srcintf="Test" srcintfrole="lan" srcuuid="xxxxx" dstip=216.109.194.6 dstport=443 dstcountry="United States" dstintf="wan1" dstintfrole="undefined" dstuuid="xxxxx" proto=6 service="HTTPS" hostname="www.123.net" profile="default" action="blocked" reqtype="direct" url="https://www.123.net/" sentbyte=649 rcvdbyte=0 direction="outgoing" urlsource="Local URLfilter Block" msg="URL was blocked because it is in the URL filter list" crscore=30 craction=8 crlevel="high"

The above log indicates the website is getting blocked due to static URL entry 2 (urlfilteridx=2).
