Technical Tip: Access to Specific FQDN using Split Tunnel SSL VPN

  • September 19, 2019
  • 0 replies
  • 61923 views

Description


This article explains how to allow access to a specific site FQDN using split tunnel SSL VPN.
FQDN address is not supported in split tunnel.



Scope



FortiGate v7.2 and v7.4.


Solution


To achieve this requirement, follow the steps below:

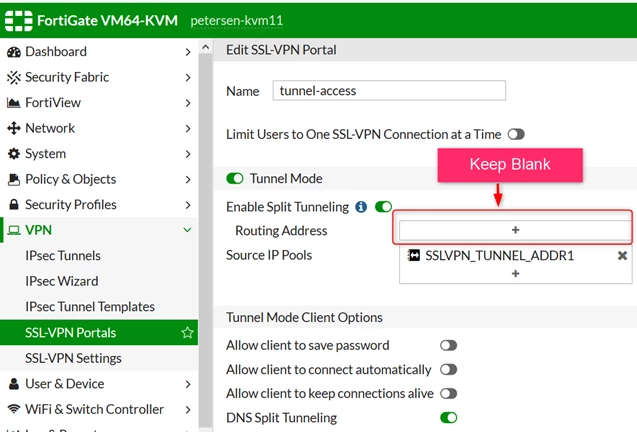

  1. Keep the Split Tunneling routing address blank in the SSL VPN portal.

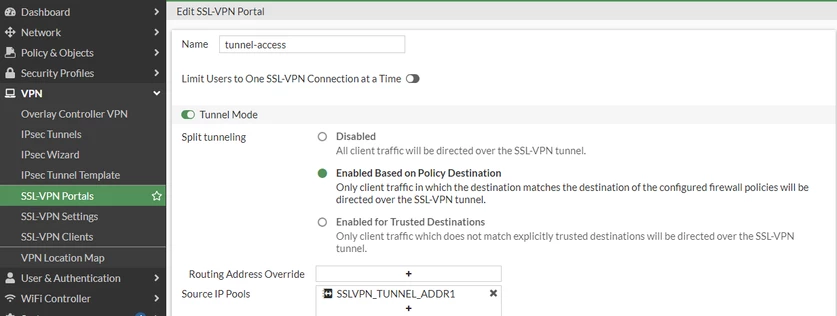

In FortiOS v7.0.x and above, split tunneling must be enabled based on policy destination.




  1. Configure the SSL VPN setting to allow access to the portal.

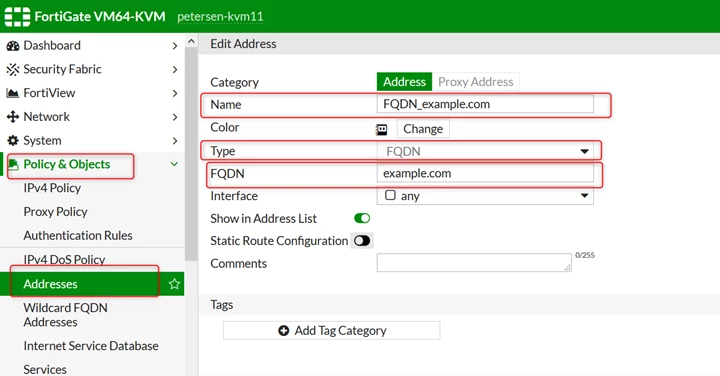

  2. Configure the FQDN for which it is required to allow access using the SSL VPN split tunnel. Go to Policy & Objects -> Addresses -> Create New.



Note:

Address Type should be FQDN.

Example below of FQDN: example.com.

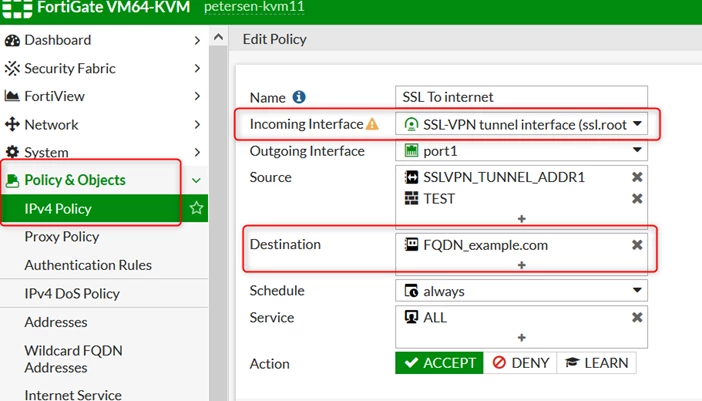

  1. Create a firewall policy with the destination address as the FQDN object created in step 3.


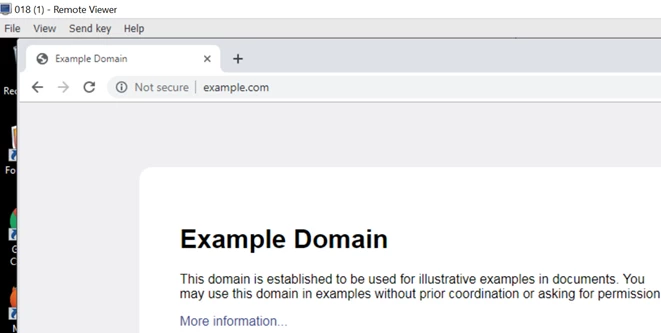

  1.  After logging in via split tunnel SSL VPN, the IP address of example.com is installed in the routing table of the SSL VPN client.




At the client's computer, the route of FQDN example.com ( 93.184.16.34) is shown:

C:\Users\fortinet>route print
IPv4 Route Table
===========================================================================
Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0     10.201.3.146     10.201.3.153      6
       10.201.0.0    255.255.240.0         On-link      10.201.3.153    261
     10.201.3.146  255.255.255.255         On-link      10.201.3.153      5
   10.212.134.200  255.255.255.255         On-link    10.212.134.200    257
    93.184.216.34  255.255.255.255   10.212.134.201   10.212.134.200      1       <----- Prefix for FQDN.
        127.0.0.0        255.0.0.0         On-link         127.0.0.1    306
        127.0.0.1  255.255.255.255         On-link         127.0.0.1    306
  127.255.255.255  255.255.255.255         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link      10.201.3.153    261
        224.0.0.0        240.0.0.0         On-link    10.212.134.200    257
  255.255.255.255  255.255.255.255         On-link         127.0.0.1    306
===========================================================================

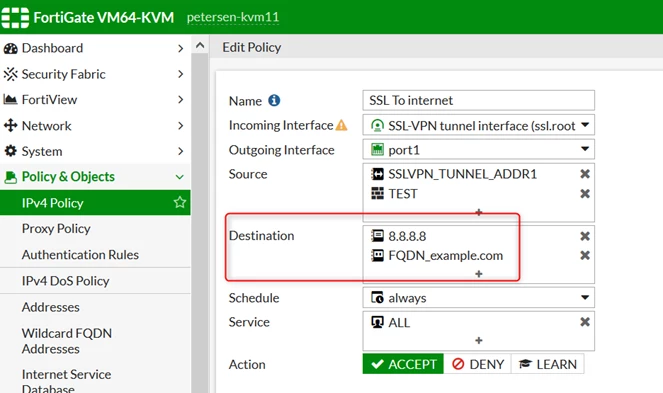

  1. Add other external addresses in the Firewall policy also, if the customer wants to access an external address and a particular FQDN.


At the client's computer, the route of FQDN example.com (93.184.16.34) and prefix 8.8.8.8/32, which was added in the policy, is shown:

C:\Users\fortinet>route print
IPv4 Route Table
===========================================================================
Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0     10.201.3.146     10.201.3.153      6
          8.8.8.8  255.255.255.255   10.212.134.201   10.212.134.200      1       <----- Prefix that was added to the policy.
       10.201.0.0    255.255.240.0         On-link      10.201.3.153    261
    10.201.15.255  255.255.255.255         On-link      10.201.3.153    261
   10.212.134.200  255.255.255.255         On-link    10.212.134.200    257
    93.184.216.34  255.255.255.255   10.212.134.201   10.212.134.200      1       <----- Prefix for FQDN.
        127.0.0.0        255.0.0.0         On-link         127.0.0.1    306
        127.0.0.1  255.255.255.255         On-link         127.0.0.1    306
  127.255.255.255  255.255.255.255         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link      10.201.3.153    261
        224.0.0.0        240.0.0.0         On-link    10.212.134.200    257
  255.255.255.255  255.255.255.255         On-link         127.0.0.1    306
===========================================================================

Whichever address or FQDN is added to the firewall policy of the SSL VPN IPv4 policy, that route will get installed in the routing table of the PC it is only needed to keep the Split Tunneling routing address blank in the SSL VPN portal.

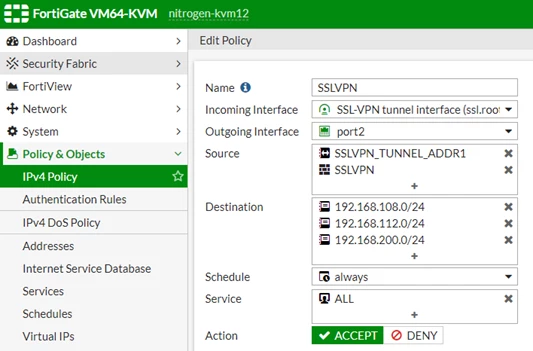

  • To reach internal resources, create a policy to inject the proper subnets into the Client routing table.





Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0     10.201.3.146     10.201.3.153      6


          8.8.8.8  255.255.255.255   10.212.134.201   10.212.134.200      1  <----- Subnet that was added in the first policy.
    192.168.108.0    255.255.255.0   10.212.134.201   10.212.134.200      1       <----- Subnet that was added in the second policy.
    192.168.112.0    255.255.255.0   10.212.134.201   10.212.134.200      1       <----- Subnet that was added in the second policy.
    192.168.200.0    255.255.255.0   10.212.134.201   10.212.134.200      1       <----- Subnet that was added in the second policy.
       10.201.0.0    255.255.240.0         On-link      10.201.3.153    261
    10.201.15.255  255.255.255.255         On-link      10.201.3.153    261
   10.212.134.200  255.255.255.255         On-link    10.212.134.200    257
    93.184.216.34  255.255.255.255   10.212.134.201   10.212.134.200      1       <----- Prefix for FQDN.
        127.0.0.0        255.0.0.0         On-link         127.0.0.1    306
        127.0.0.1  255.255.255.255         On-link         127.0.0.1    306
  127.255.255.255  255.255.255.255         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link      10.201.3.153    261
        224.0.0.0        240.0.0.0         On-link    10.212.134.200    257
  255.255.255.255  255.255.255.255         On-link         127.0.0.1    306

===========================================================================


Note:

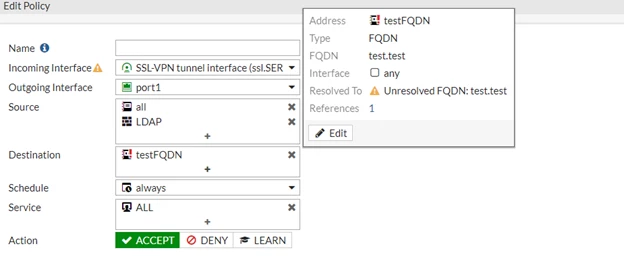

Be sure that the FortiGate resolves the FQDN address object. An unresolved FQDN can cause connection failure.


This feature does not support FQDN with dynamic IP resolution or wildcard FQDN for the following reasons:
  • FortiClient only injects routes at the time of connection. If the IP address gets changed or updated while it is connected, FortiClient will not add a new IP address to the client routing table.
  • The wildcard FQDN is updated when a DNS query is made from a host connected to FortiGate (DNS traffic passing through a FortiGate), and if there is no DNS query passing through FortiGate, the FQDN will not resolve, and FortiClient will not inject any route to the client.

For wildcard, FQDN, or dynamic IP scenarios, a full tunnel setup must be used.

Note 1:
When the SSL VPN portal has a routing address override, it restricts access to specific destinations based on the portal settings. Additionally, configuring an FQDN is not supported in the portal when the override is in place. In this case, either a separate portal must be used, or the routing address should be left blank. Once the override settings are removed, the FQDN begins to work as expected.

Note 2:
  • The VPN SSL split tunnel feature will not support Internet Service DB (ISDB) as a Destination because the IPs for the ISDB are automatically changed from the FortiGuard Servers.
  • If the firewall policy uses ISDB as its Destination, all traffic will be routed via an SSL VPN tunnel.
