Technical Note: Radius reject with message 'MS-CHAP-Error: \000E=691 R=0 V=3'
Description
Solution
This article provides an explanation and workaround for "MS-CHAP-Error(2): \000E=691 R=0 V=3" message, which can come in Access-Reject from Radius.
Sniffer
Sniffer
2 0.001287 10.10.10.10 10.10.10.254 RADIUS 84
Access-Reject(3) (id=5, l=42)
AVP: l=22 t=Vendor-Specific(26) v=Microsoft(311)
VSA: l=16 t=MS-CHAP-Error(2): \000E=691 R=0 V=3
Solution
Windows server 2008 might refuse NTLM connections because NTLMv1 is disabled by default.
Enable NTLMv1 in the server as follows:

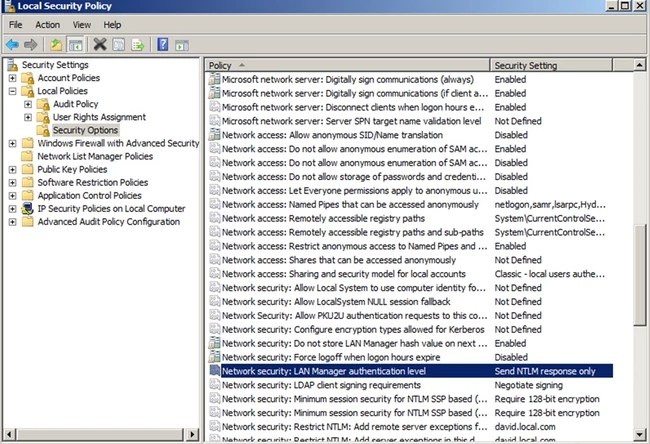

Start > Administrative Tools > Local Security Policy > Local Policies > Security Options > Network security: LAN Manager authentication level entry > Send NTLM response only.
Enable NTLMv1 in the server as follows:
Start > Administrative Tools > Local Security Policy > Local Policies > Security Options > Network security: LAN Manager authentication level entry > Send NTLM response only.
