Technical Note: How to set a FortiGate unit to send the real time log to a FortiAnalyzer unit

Description

This article explains how to enable a FortiGate unit to send the real-time log to a FortiAnalyzer unit.

Scope

Solution

FortiOS firmware version 4.0 MR3:



The following CLI commands can be used to set the FortiGate unit to send the real time log to a FortiAnalyzer:

# config log fortianalyzer setting # set upload-option realtime # end





FortiOS firmware version 5.0.x:



To enable real time log upload from the CLI, following commands can be used:





# config log fortianalyzer setting # set upload-option realtime # end

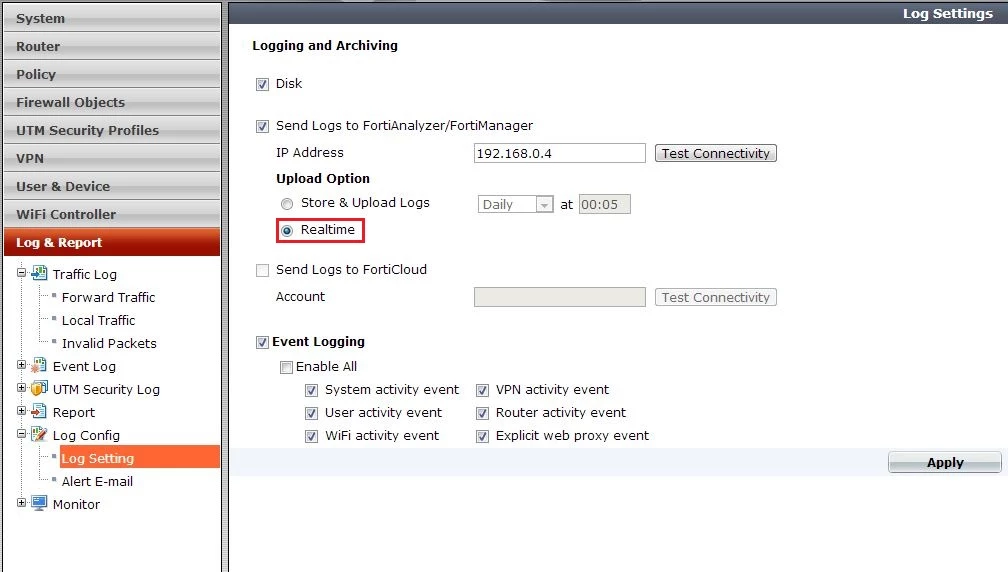

To enable real time log upload from the GUI, go to Log & Report > Log Config > Log Setting, enable 'Send Logs to FortiAnalyzer/FortiManager' and select 'Realtime' as an upload option.
