Technical Note : FortiGate BGP configuration to make a multi-homed AS non-transit (using aspath-list and route-map)

Purpose
This articles provides a configuration example to make a multi-homed BGP AS non-transit

Scope

• FortiGate or VDOM in NAT mode
• All FortiOS

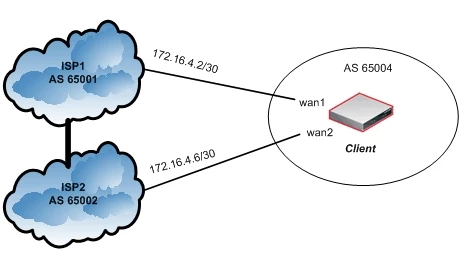

Diagram


Expectations, Requirements
The "Client" FortiGate should not announce to AS 65002 BGP routes learned from AS 65001, and vice versa

Configuration
Hereafter are the "Client" FortiGate CLI commands (only relevant parts of the configuration are provided).

Details :
The aspath-list below has a default implicit DENY action at the end of the list ; it will therefore 'permit' only empty path list announcements (from the local AS, as specified by the regular expression "^$") .

config router aspath-list     edit "empty-path"             config rule                 edit 1                     set action permit                     set regexp "^$"                 next             end     next end config router route-map     edit "non-transit"             config rule                 edit 1                     set match-as-path "empty-path"                 next             end     next end config router bgp     set as 65004         config neighbor             edit "172.16.4.2"                 set remote-as 65001                 set route-map-out "non-transit"             next             edit "172.16.4.6"                 set remote-as 65002                 set route-map-out "non-transit"             next         end  end

Verification

• To verify the routes matching the "empty-path" access list, the following command can be used :

 get router  info bgp filter-list empty-path

• To see all BGP AS paths, run the following command on the BGP peers :

get router  info bgp paths   ...or...   get router  info bgp network
