Technical Note: Enable SIP Application Layer Gateway (ALG) on a FortiGate unit
Description
When configuring SIP features on a FortiGate unit, it is recommended to disable the SIP session-helper and work with the SIP Application Layer Gateway, to ensure compatibility across SIP systems.
Here are the steps to configure that:
1. Check the session-helper number in the CLI:
FGT# show system session-helper
…response should be similar to:
edit 12 #ID set name sip set port 5060 set protocol 17 next |
"#ID" indicates the line with an ID number, to be used for the next step
2. Remove this session-helper
FGT# config system session-helper
FGT#(session-helper) delete 12
FGT#(session-helper) end
3. Clear SIP sessions
Removing the session helper helps to ensure that new SIP sessions will not use the session-helper.
For existing SIP sessions (and their associated expectation sessions for the required pinholes) to be cleared, chose one of the following options:
1) wait for the existing sessions to timeout from the FortiGate session table
2) manually clear the existing sessions
3) reboot the FortiGate
Removing the session helper helps to ensure that new SIP sessions will not use the session-helper.
For existing SIP sessions (and their associated expectation sessions for the required pinholes) to be cleared, chose one of the following options:
1) wait for the existing sessions to timeout from the FortiGate session table
2) manually clear the existing sessions
3) reboot the FortiGate
4. Create a Protection Profile with VoIP enabled.

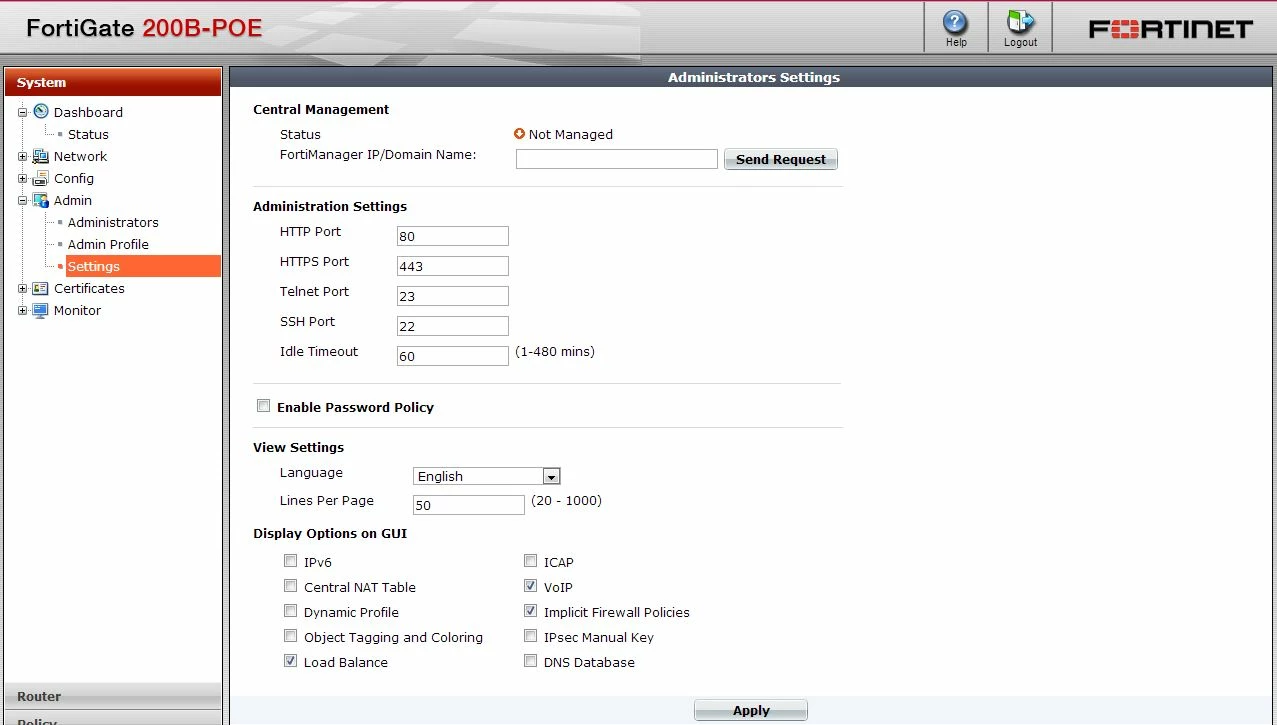

4.1 Enable the VoIP settings in the GUI. Go to: System > Admin > Settings > Display Option on GUI > Tick VoIP

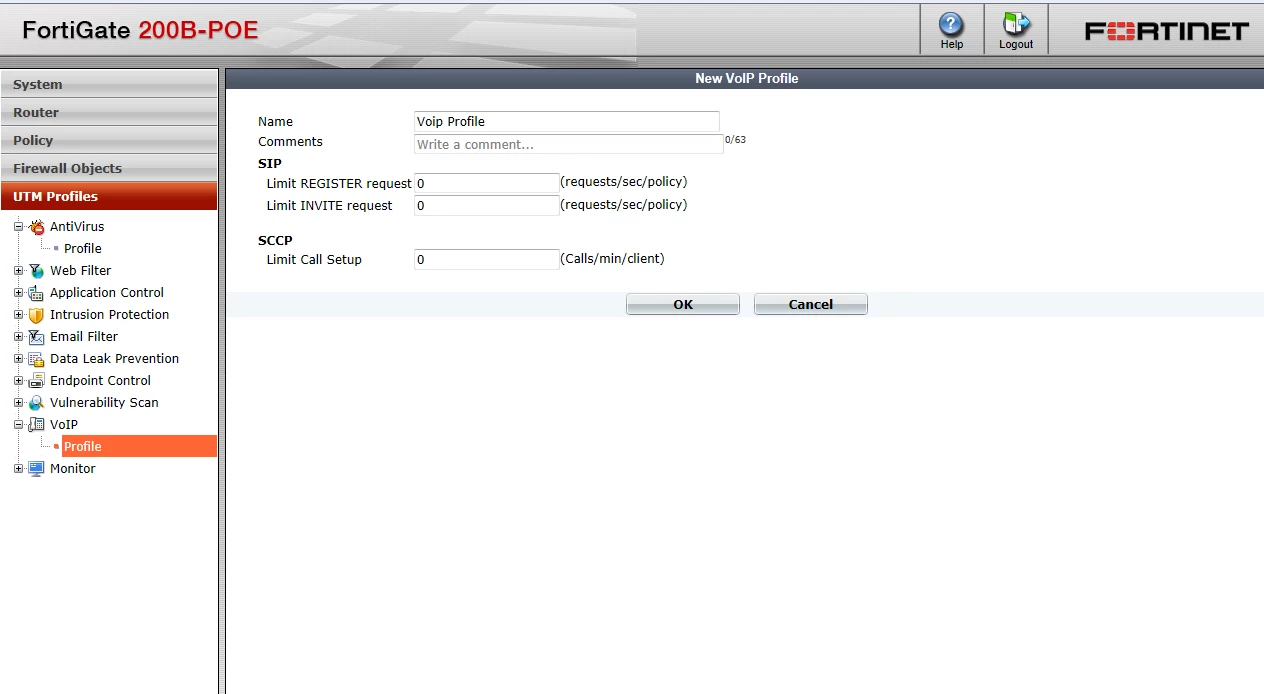

4.2 Create a new VoIP profile under "UTM Profiles". Go to: UTM Profiles > VoIP > Click Create New > VoIP_Profile

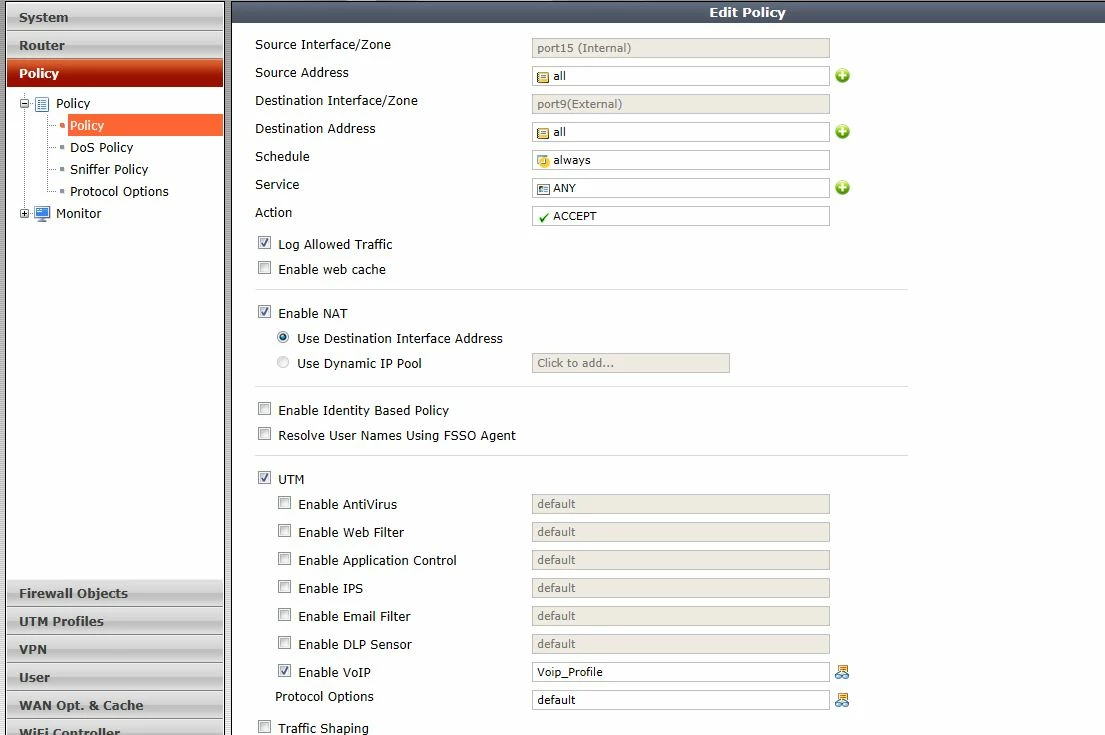

4.3 Enable the VoIP profile under the appropriate firewall policies. Go to: Policy > Enable UTM-Tick > Enable VoIP > Choose VoIP profile
