Technical Note: Configuring HA on a FortiGate that has DHCP or PPPoE interfaces
Description
When the HA mode is set to Active-Passive or Active-Active, on validation it will return to Standalone:
HA configuration is not taken into account on any FortiGate units with network interfaces configured to request an IP address through the DHCP service (on 5.2.x and earlier releases).
GUI

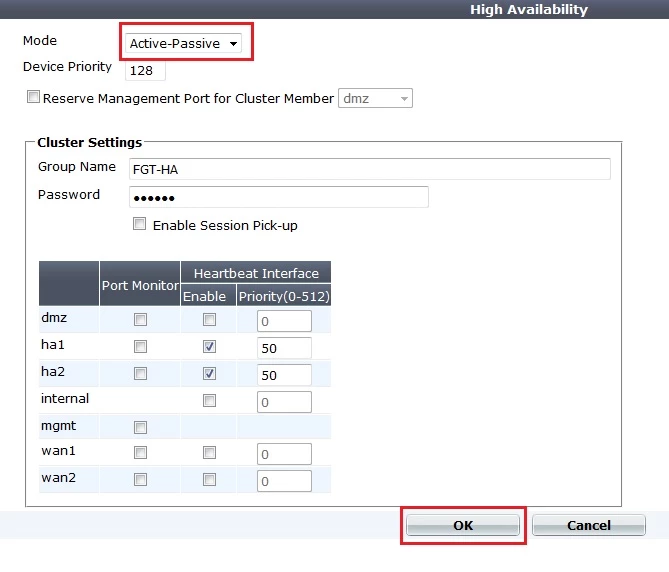

When the HA mode is set to Active-Passive or Active-Active, on validation it will return to Standalone:

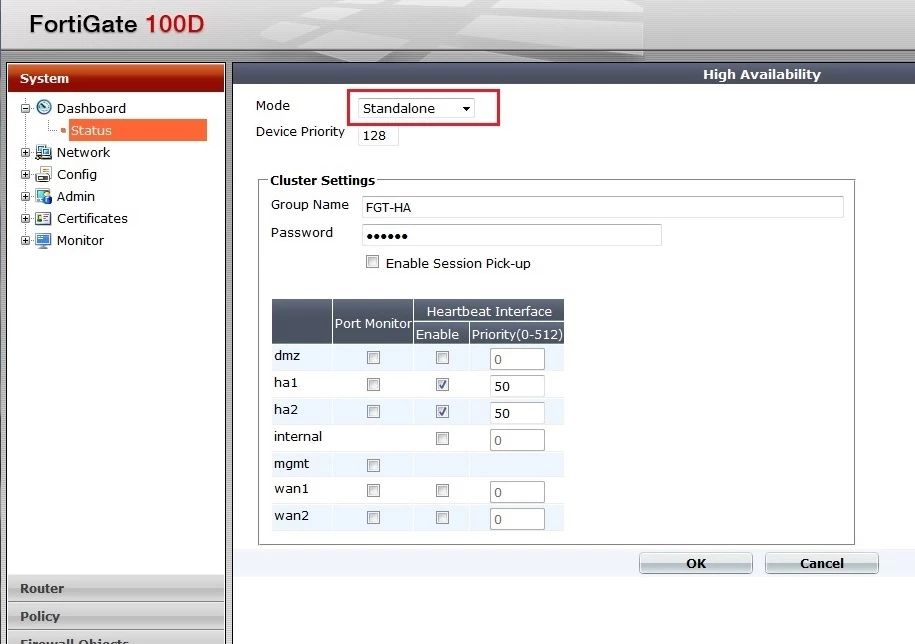

After the validation, HA Mode is back to standalone, without any warning.
CLI
The “set mode” command is not accepted:
FG100D-2 # config system ha
FG100D-2 (ha) # set mode a-pcommand parse error before 'mode'
Command fail. Return code -61
Scope
All FortiGate units with the default setting "DHCP addressing mode" on some network interfaces running 5.2.x and earlier releases only.Note1: On 5.4.x, 5.6.x and later firmware releases, dhcp/pppoe interface configuration in HA is supported. Fortinet recommends that you turn on DHCP or PPPoE addressing for an interface after the cluster has been configured.
Solution
On 5.2.x and previous releases, the solution is to make sure that no network interface is set to the "DHCP addressing mode", before enabling the HA feature.

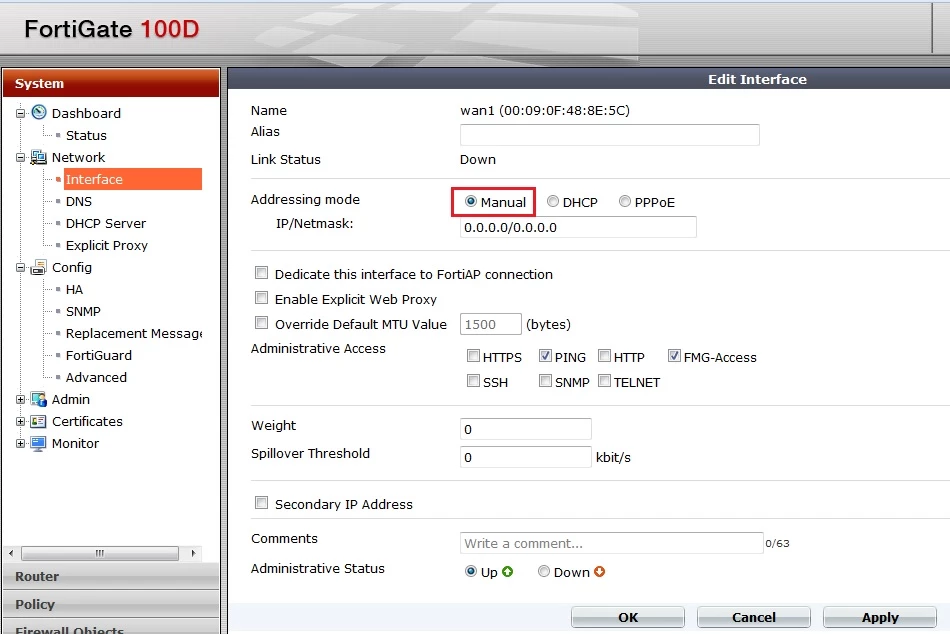

Change the interface IP addressing mode to "Manual":
GUI
CLI
FG100D-2 # config system interface FG100D-2 (interface) # edit wan1 FG100D-2 (wan1)# set mode static static setting dhcp extenal dhcp client mode pppoe external pppoe mode FG100D-2 (wan1) # set mode static FG100D-2 (wan1) # endNote: On the FortiGate 100D hardware platform, by default, network interfaces WAN1 and WAN2 are set to the "DHCP" IP addressing mode.Related Articles
