Quick setup of Layer 2 Tunneling Protocol (L2TP) VPN using FortiOS firmware version 4.0 and above

Description
One option for creating a Virtual Private Connection (VPN) using a FortiGate unit is the use of L2TP.  This article describes the steps required to make a Layer 2 Tunneling Protocol (L2TP) VPN using FortiOS firmware version 4.00 MR2 or MR3.

Scope

Solution
Use the following CLI commands to configure Layer 2 Tunneling Protocol (L2TP) VPN with FortiOS version 4.00 MR2 or MR3. Configuring L2TP using the web based manager is not supported.

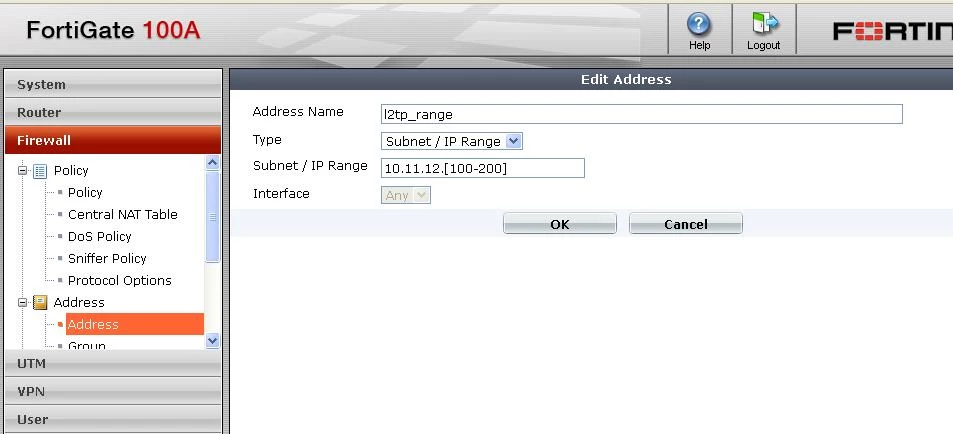

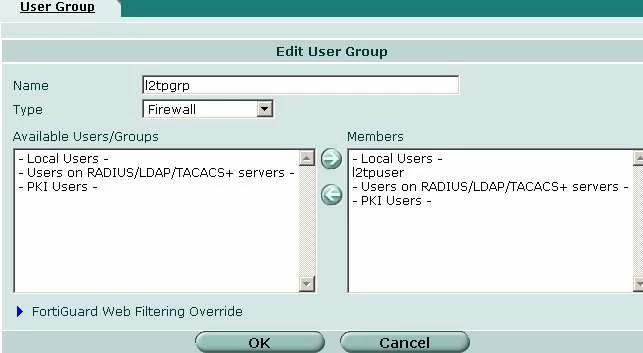

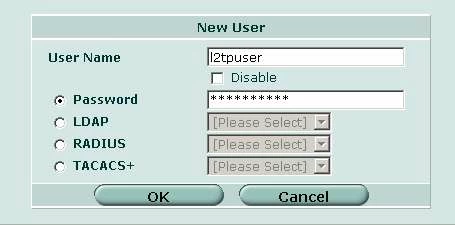

Create a Address object for the L2TP range as below

config firewall address
    edit "l2tp_range"
        set type iprange
        set end-ip 10.11.12.200
        set start-ip 10.11.12.100
    next
end

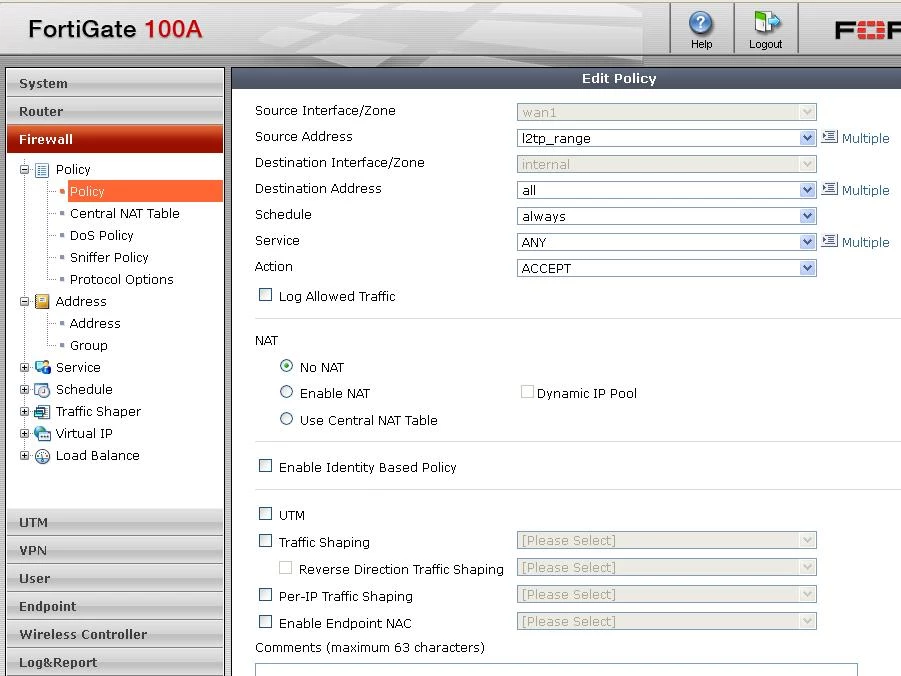

Then configure the firewall policy as below

config firewall policy
 edit 1
        set srcintf "wan1"
        set dstintf "internal"
            set srcaddr "l2tp_range"
            set dstaddr "all"
        set action accept
        set schedule "always"
            set service "ANY"
    next
end



Then configure the in-built microsoft client as below

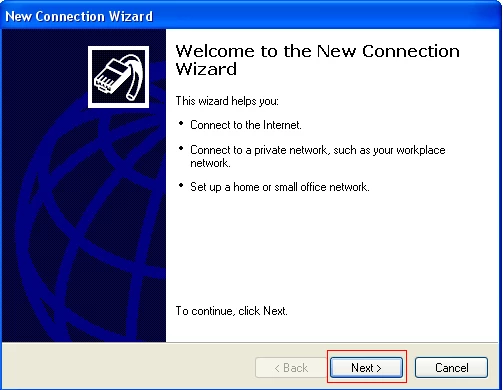

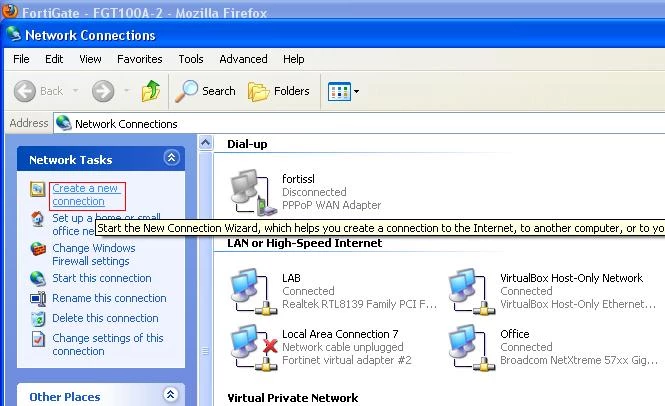

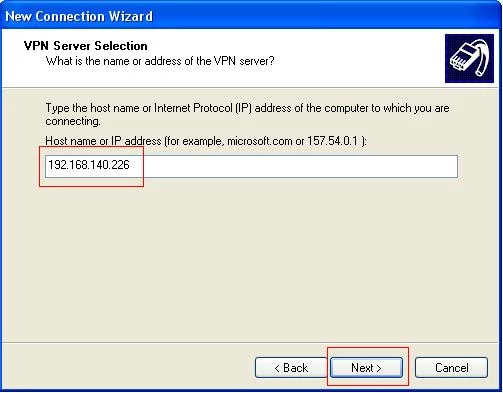

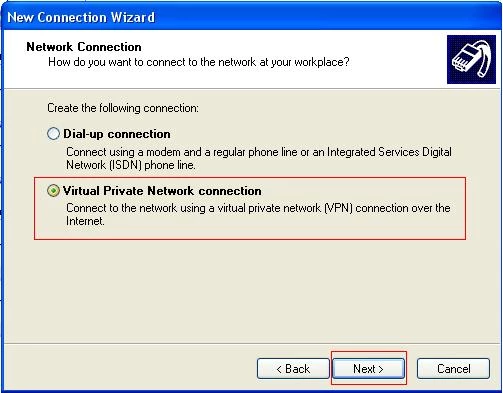

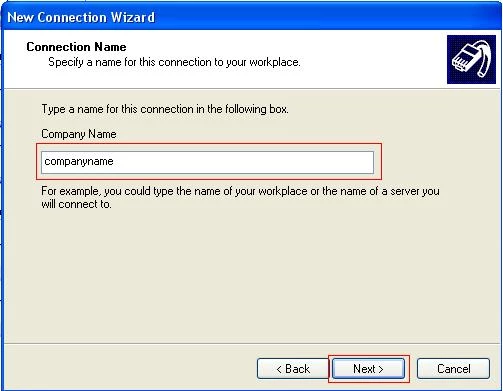

Step 1:



Step 2:

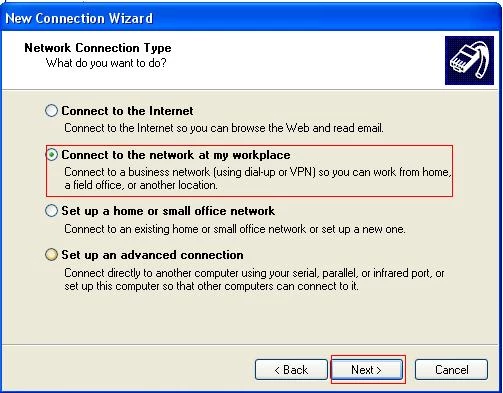

Step 3:



Step 4:



Step 5:



Step 6:

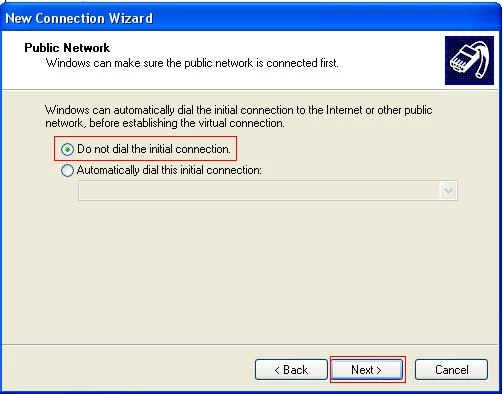

Step 7:

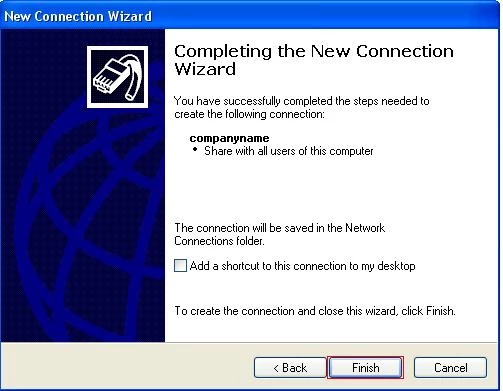

Step 8:

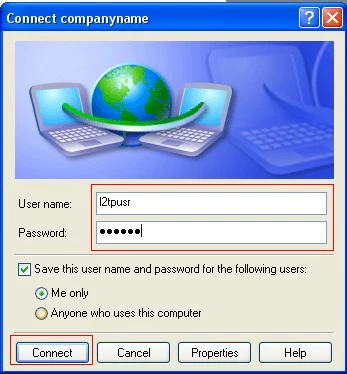

Final step to connect L2TP VPN
