Technical Tip: Configuring FortiEdge Cloud and Microsoft NPS (Radius with AD Authentication)

Below are the steps to follow to configure FortiEdge Cloud and Windows NPS for Radius authentication.

1. Add FortiAP as a Radius client.

Note: If FortiEdge manages multiple APs, configure the AP subnet (for example 192.168.2.0/24) as the Radius client.

2. Follow the related guide to complete NPS configuration but ensure that in steps 1 and 2, and configure FortiAP as a Radius client instead of FortiGate Technical Tip: Configuring FortiGate and Microsoft NPS (Radius with AD authentication).



   From FortiEdge:



3. Configure the RADIUS server from Wireless -> Configuration -> User Access Control.

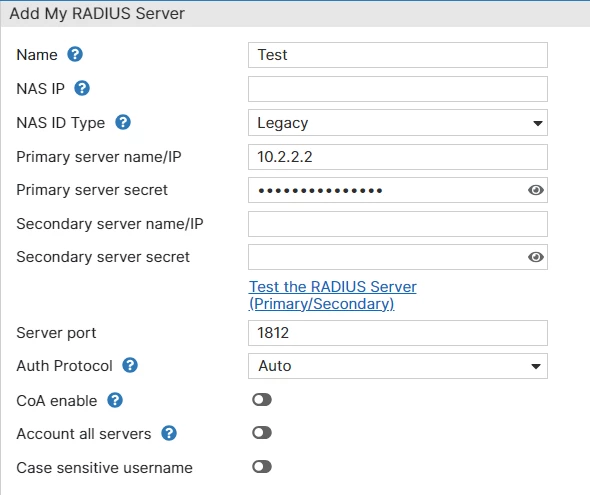

Select 'My Radius Server' -> Add Radius Server and enter server details. The primary server name/IP will be the NPS and the secret will be the same as the Radius client.


Reference: RADIUS Server.

If testing the Radius server from FortiEdge, it will fail because the Radius client is FortiAP.

To review packet flow, SSH to AP and run the below command:

tcpdump -i br0 'port 1812' <---------- Or configured Radius port.
