Description

This article describes how to set up an API call to FortiManager Cloud or FortiAnalyzer Cloud.

Scope

FortiManager Cloud and FortiAnalyzer Cloud.

Solution

Open one of the following URLs depending on the platform:

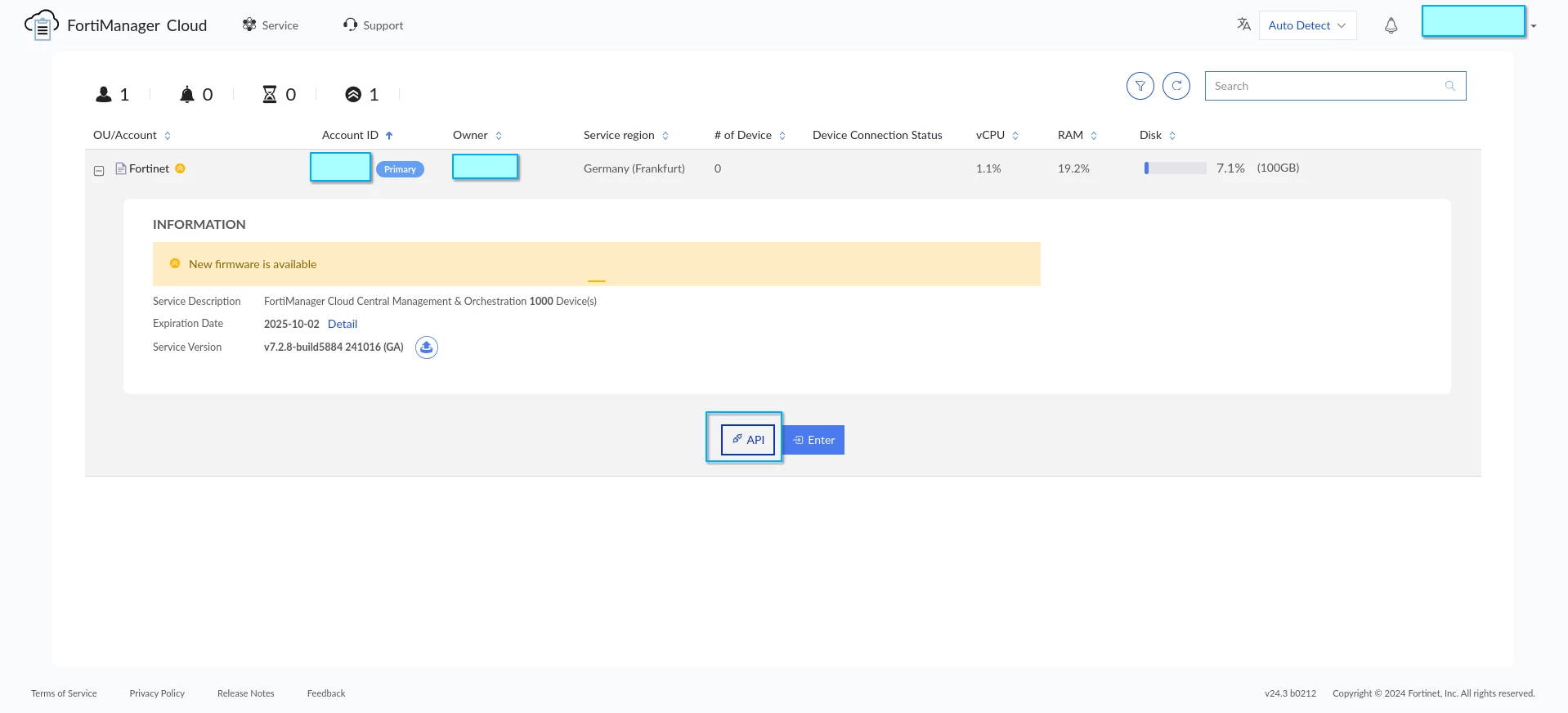

After opening the corresponding page, locate the instance of choice. Select the API button at the bottom.

From the new panel that appears, select and copy the provided example of the JSON API.

To create an API user, go to Users.

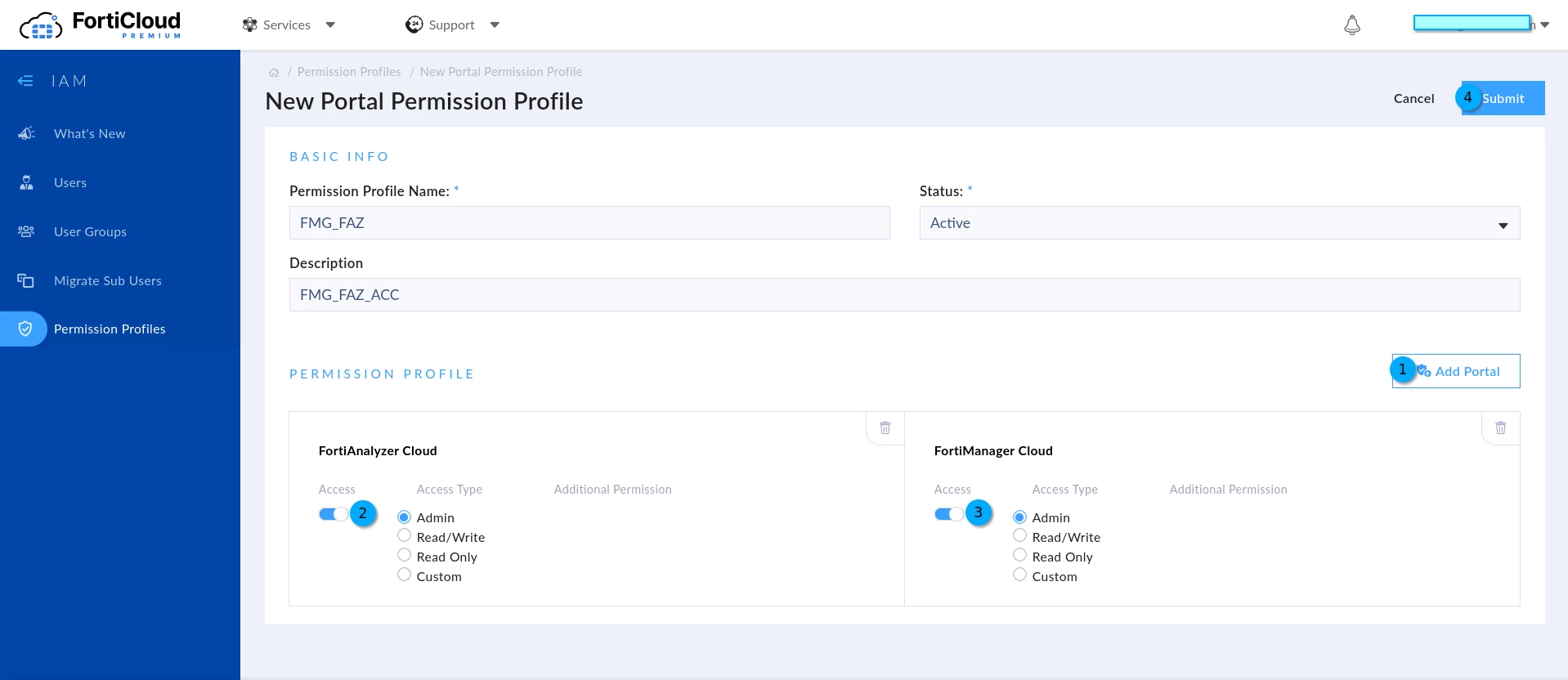

Go to the IAM portal -> Permission Profiles -> Add New.

From Add Portal, choose FortiAnalyzer Cloud / FortiManager Cloud. Then enable access and the proper level of access.

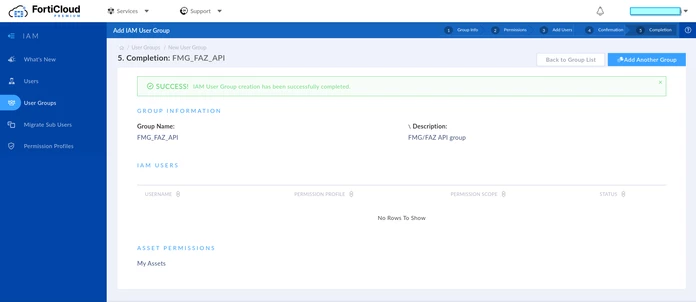

Go to IAM portal -> User Groups -> Add Another Group.

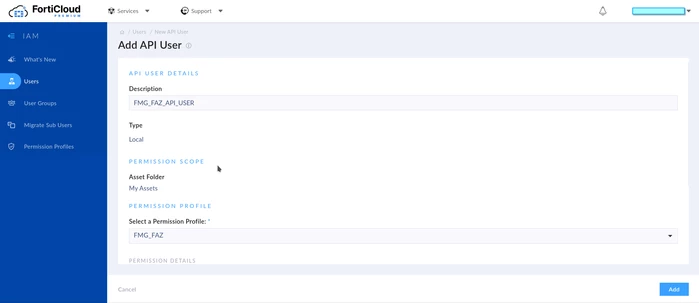

Choose the name of the group and attach the proper permission profile under the IAM portal -> Users -> Add New -> API user.

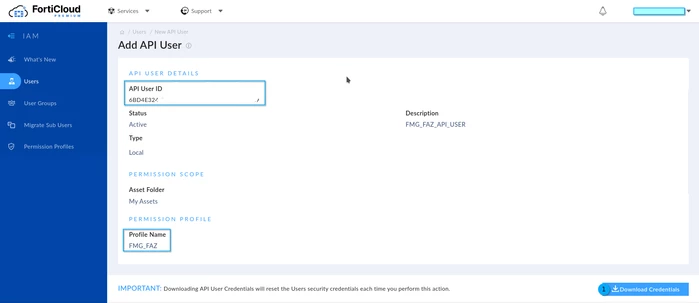

Choose the proper user group for the user and then download the credentials.

To confirm that the API call is working correctly, use the following methods:

BASH script:

#!/bin/bashnn# IAM API usernurl_base="https://xxx.fortimanager.forticloud.com"nurl="$url_base/jsonrpc"nn# usernuser="6BD4E324xxx"npasswd="xxxxxx"nn# 1, get token from FortiCare, url is defined in admin portal Server Config -> API user setting -> FAC_OAUTH_API_URLntoken=$(curl --silent -k -X POST
https://customerapiauth.fortinet.com/api/v1/oauth/token/
-H 'Content-Type: application/json'
-d '{"username": "'$user'", "password": "'$passwd'", "client_id" : "FortiManager", "grant_type": "password" }' | jq -r '.access_token')necho 'access token is '$tokennn# 2, get session from instancensession=$(curl -k -X POST --http1.1 --silent $url_base/p/forticloud_jsonrpc_login/
-H 'Content-Type: application/json'
-d '{"access_token": "'$token'"}' | jq -r '.session')nn# responsenecho 'session is '$sessionnnecho "******************System Status*************************"n# Get sys status from instancencurl -k -X POST --http1.1 $url
-H 'Content-Type: application/json'
-d '{"method": "get", "params": [{ "url": "/cli/global/system/status"}], "session": "'$session'", "id": 1}' | jq .

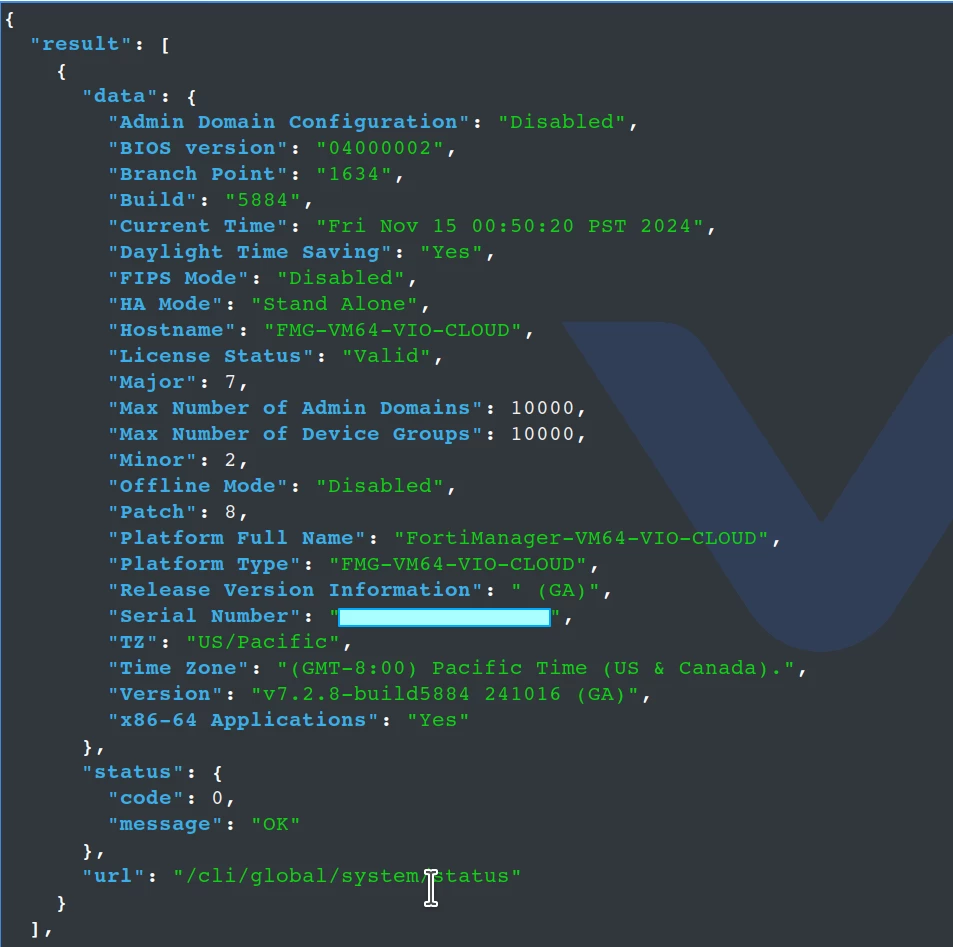

The output from the API call:

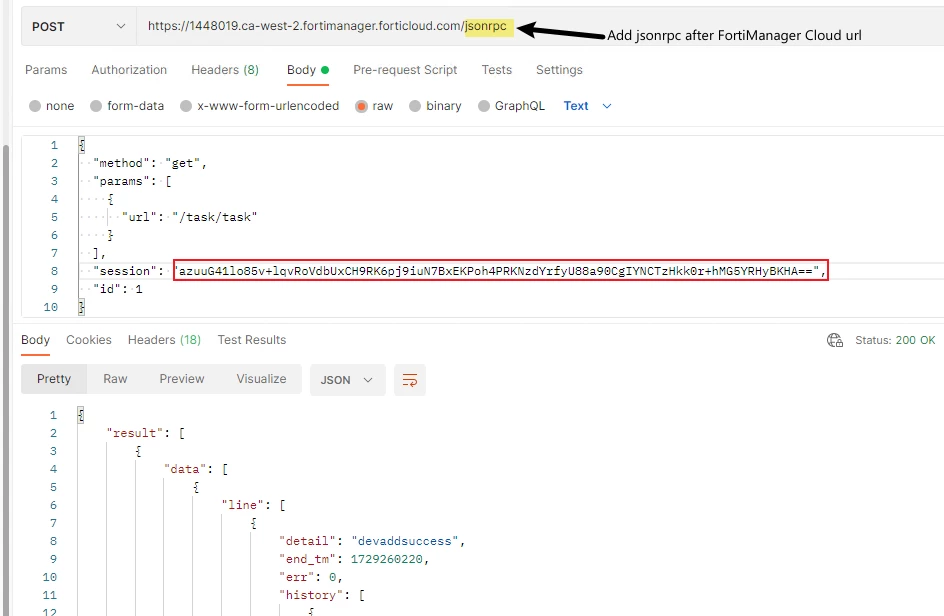

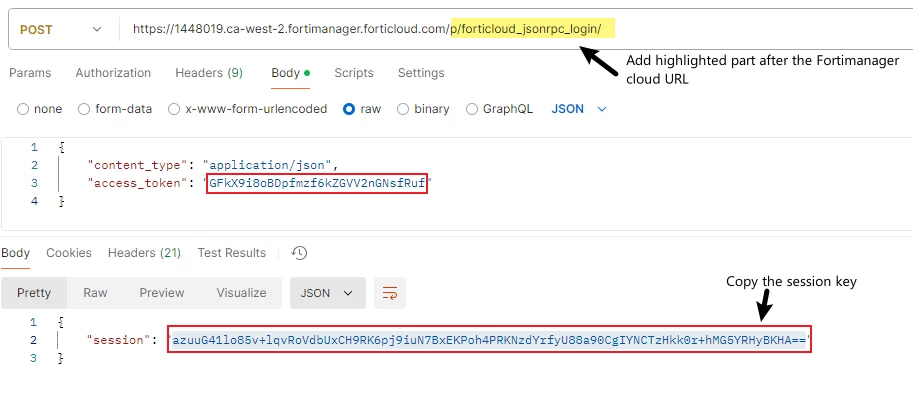

API Platform to send requests:

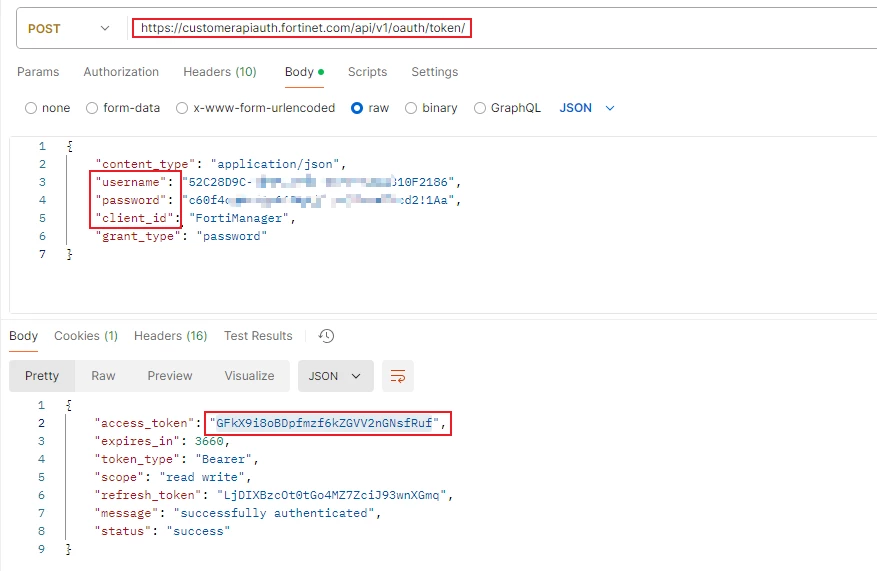

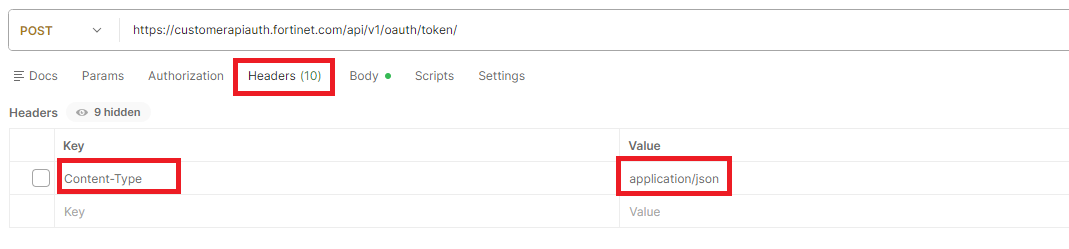

Use the credentials and obtain an access token from the OAuth API URL 'https://customerapiauth.fortinet.com/api/v1/oauth/token/'.

{n	"content_type":	"application/json",n	"username":	"52C28D9C-XXXX-XXX-XXX-XXXX10F2186",n	"password":	"c60f4XXXXXXXXXXXXXXXXXXd2!1Aa",n	"client_id":	"FortiManager",n	"grant_type":	"password"n}

Note: The value for client_id can be 'FortiManager' or 'FortiAnalyzer', depending on the cloud service.
