Technical Tip: How to sniff traffic on FortiClient EMS and send the resulting pcap file on a remote server for analysis

In this scenario, the administrator intends to check if SNMP queries are reaching FortiClient EMS.

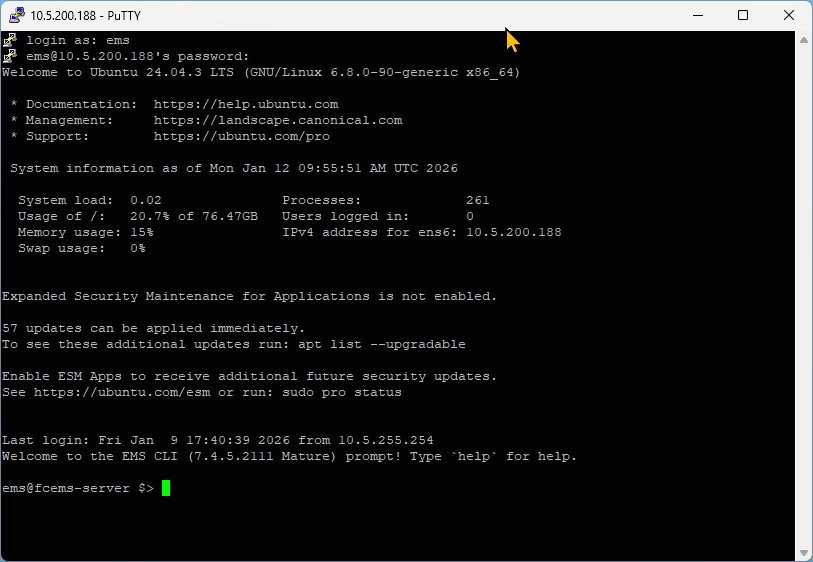

First, connect to the SSH console of the EMS:

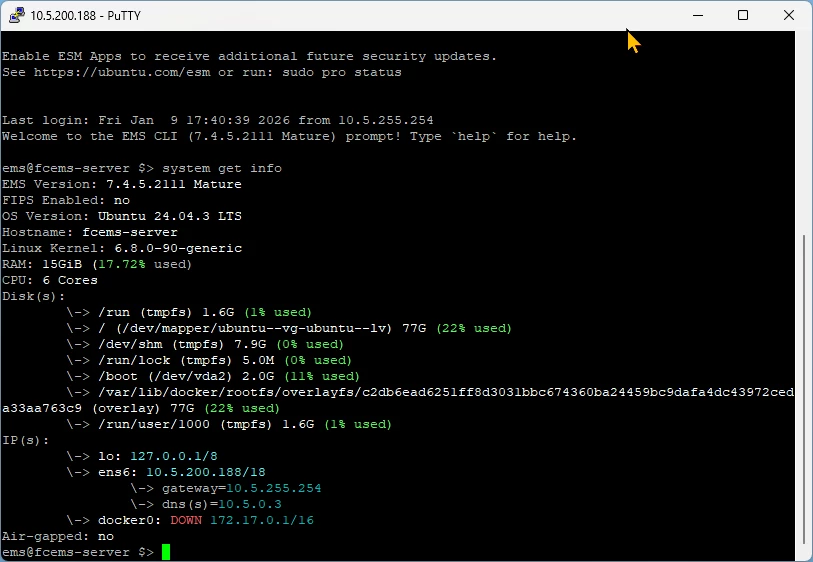

Next, check the FortiClient EMS network configuration (interface name, IP address, and gateway) using the following general-purpose command:

ems@fcems-server $> system get info

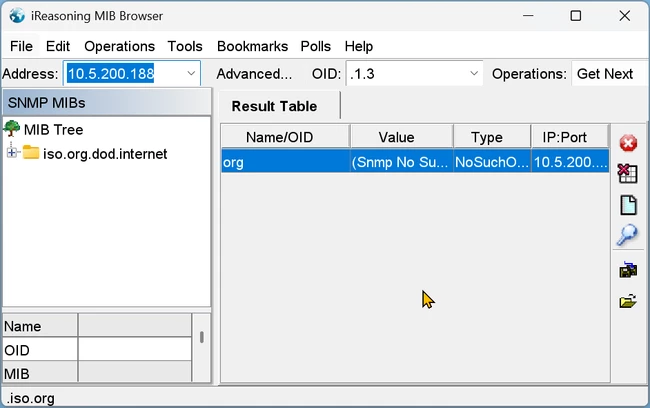

Start the snmpwalk or MIB browser on the workstation to SNMP poll (using UDP on port 161) the FortiClient EMS Server on its appropriate interface (e.g., IP address of interface ens6).

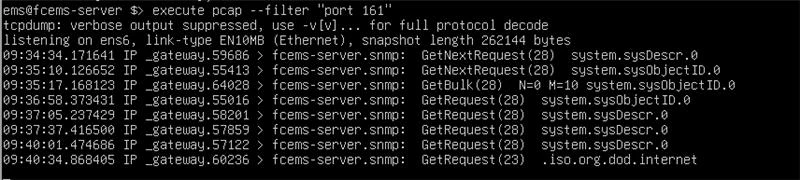

Start capturing network traffic (sniff) on FortiClient EMS on interface ens6 for UDP port 161 for immediate troubleshooting:

ems@fcems-server $> execute pcap --if ens6 --filter "port 161"

Note: The filter syntax is following rules of TCPDUMP reference: PCAP filter 7.

The administrator can also create a file for later transfer and analysis on Wireshark on a workstation or server:

ems@fcems-server $> execute pcap --out pcaptest.pcapexecute pcap --out pcaptest.pcap

The resulting output pcap file is stored in the chrooted /exchange folder:

ems@fcems-server $> execute ls /exchange: total 25460 -rw-r--r-- 1 tcpdump tcpdump 26069774 Jan 9 17:58 pcaptest.pcap  /var/lib/redis: total 8 -rw-rw---- 1 redis redis 4271 Jan 9 17:57 dump.rdb

The administrator can now send the file to a remote server using SFTP:

ems@fcems-server $> execute sftp --remote.ip 10.5.1.136.206 --remote.user sftp_client --local.file /exchange/pcaptest.pcap --remote.file /uploads/pcaptest.pcap --remote.password fortinet Connectivity test using service 'sftp' to remote host 10.5.136.206 with user sftp_client for writing file /uploads/pcaptest.pcap passed !  File /exchange/pcaptest.pcap successfully copied to 10.5.136.206:/uploads/pcaptest.pcap

Once done, the administrator can remove generated files one by one in /home/ems/exchange folder:

ems@fcems-server $> execute ls /exchange total 25532 -rw-r--r-- 1 tcpdump tcpdump 26069774 Jan 9 17:58 pcaptest.pcap -rw-r--r-- 1 tcpdump tcpdump 71950 Jan 9 18:34 pcaptest2.pcap  ems@fcems-server $> execute clear exchange pcaptest.pcap A file(s) to remove must be provided using either --filter or --all (not both). exit error: [exit status 1], exitStatus: 1  ems@fcems-server $> execute clear exchange --filter pcaptest.pcap

The file was removed, leaving space on the disk for new captures:

ems@fcems-server $> execute ls /var/lib/redis: total 8 -rw-rw---- 1 redis redis 4524 Jan 9 18:37 dump.rdb  /exchange: total 72 -rw-r--r-- 1 tcpdump tcpdump 71950 Jan 9 18:34 pcaptest2.pcap
