Technical Tip: FortiClient Installer creating in airgap network on FortiClient EMS

  • May 8, 2025
  • 0 replies
  • 1035 views
Description This article describes the creation of a FortiClient installer in an air-gap network.
Scope FortiClient EMS 7.4.
Solution

From 7.4, Forticlient EMS requires additional steps to create Forticlient installer and requires a TAC ticket.

Below are the steps to create a FortiClient installer:



  1. Login to EMS, select FortiClient Installer, and select Add.

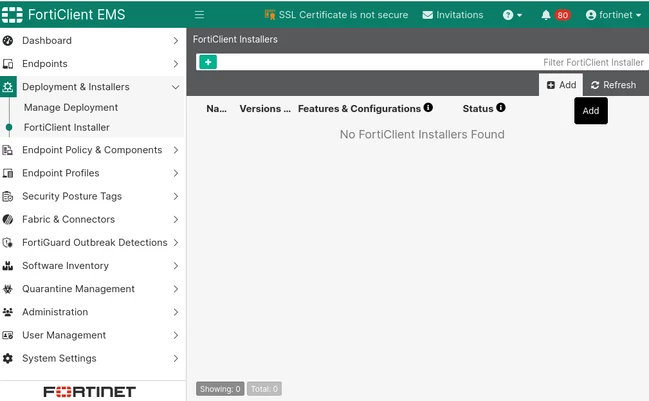

Screenshot 2025-05-07 101130.png



  1. Select More options -> select 'This EMS has no internet connection', and enter a Release and Patch (the build number is optional).

    Note: please enter the version number if it is not available from the drop down due to air gap setup"

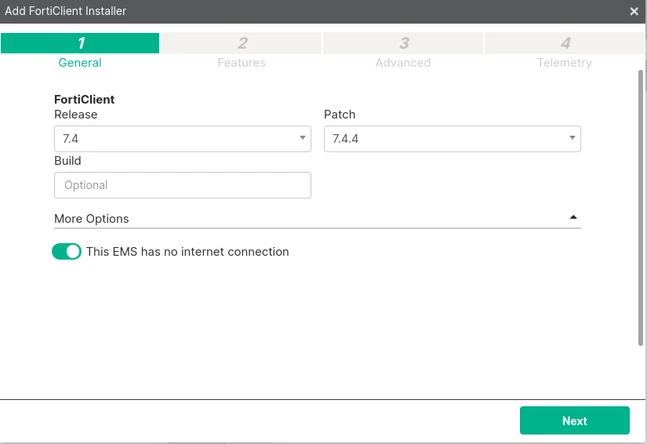

Screenshot 2025-05-07 101304.png


  1. Select the required Security features.

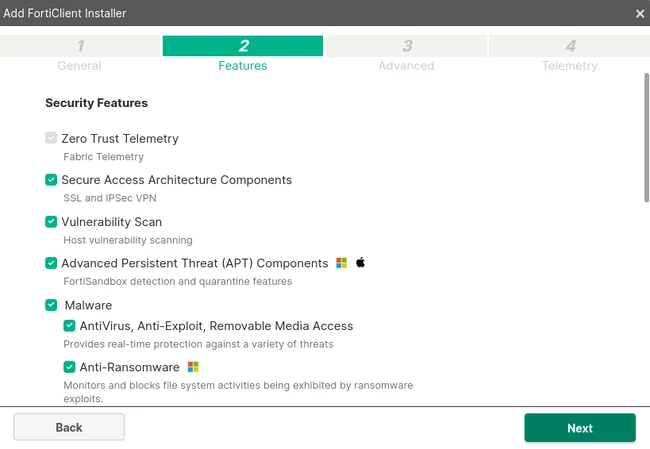

Screenshot 2025-05-07 101328.png

  1. Add the Invitation and add the required fields.

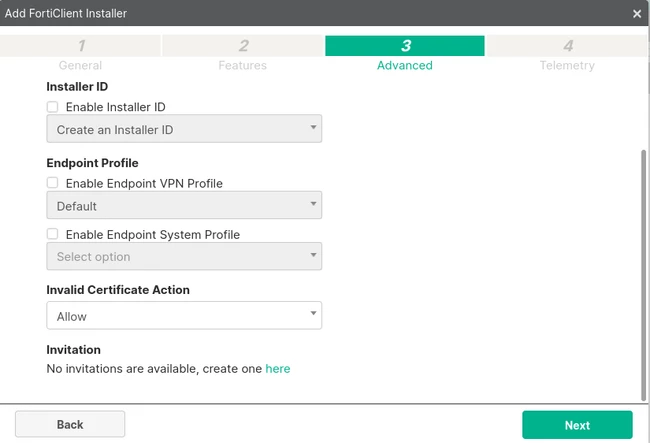

Screenshot 2025-05-07 101357.png



  1. If the Invitation code is not created, select 'create one here' and then select Yes.

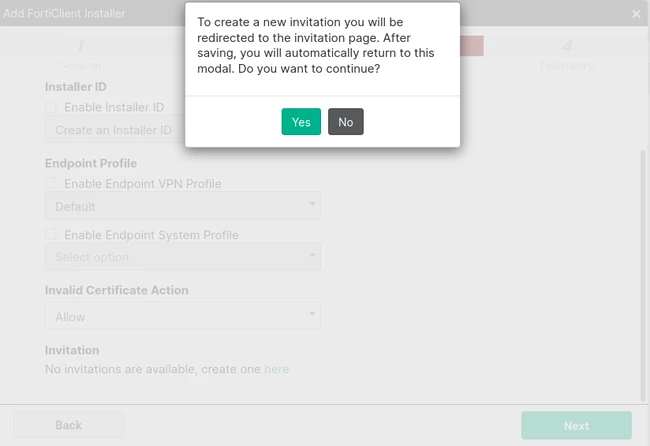

Screenshot 2025-05-07 101422.png



  1. Create an Invitation code:

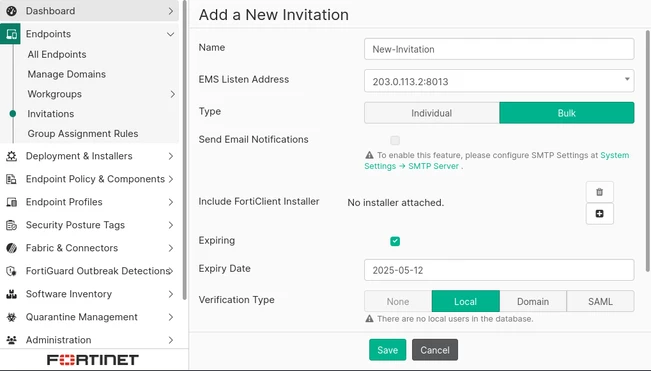

Screenshot 2025-05-07 101611.png



  1. Select the invitation code previously created -> select 'Next' and then download the .json file.

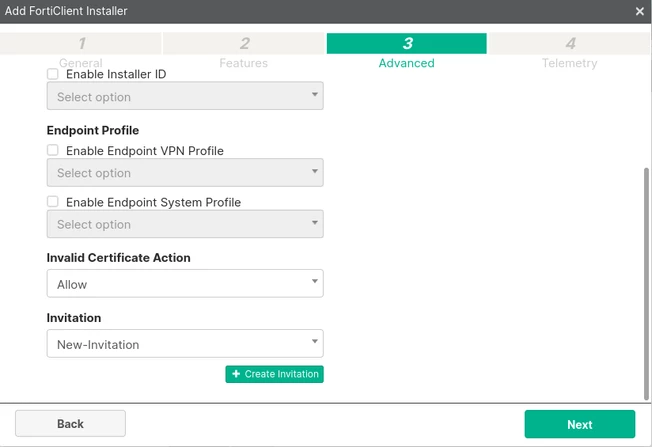

Screenshot 2025-05-07 101720.png

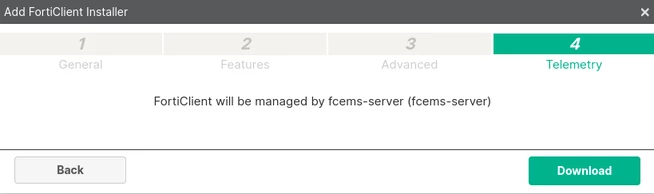

Screenshot 2025-05-07 101735.png



  1. Raise a TAC ticket and attach the json file. The TAC team will provide a package installer.
