Technical Tip: FortiClient EMS On-Fabric detection rule based on ping probe

Description

This article describes how to configure an On-Fabric detection rule based on ping probes in FortiClient EMS and a possible loop detection issue.

Scope

FortiClient EMS.

Solution

Configuration.

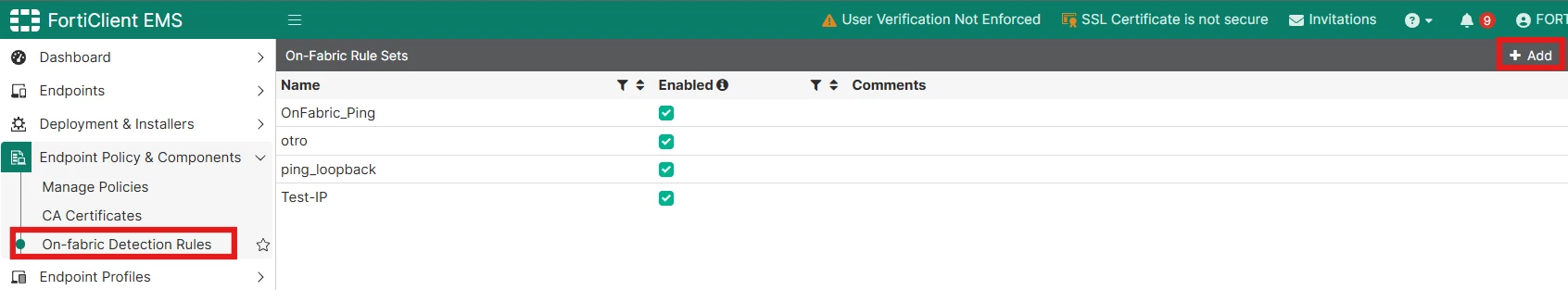

In the FortiClient EMS GUI, select Endpoint Policy & Components, then on-fabric detection rules, then + add.

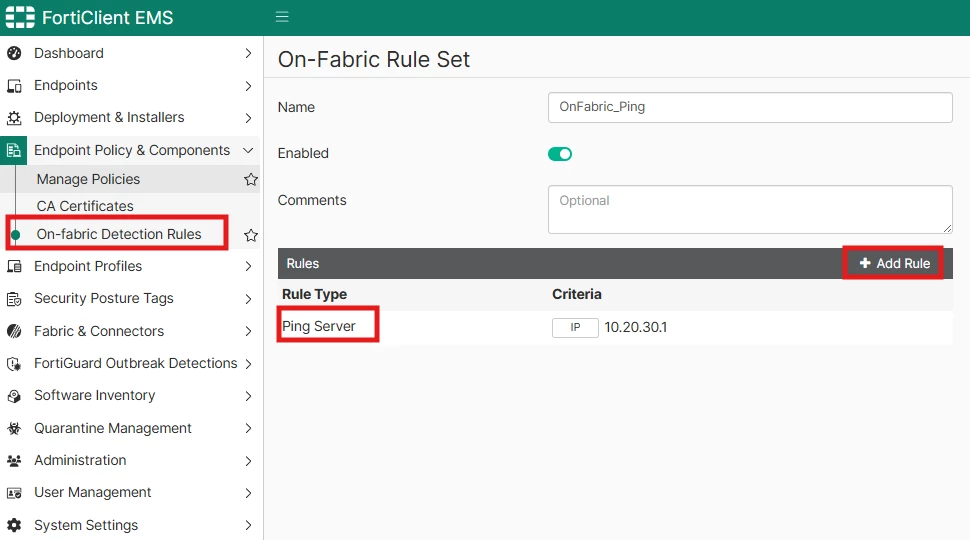

Input name, enable, and '+Add Rule', in Detection Type select Ping Server, and then set up IP Address, then 'Add Rule'.

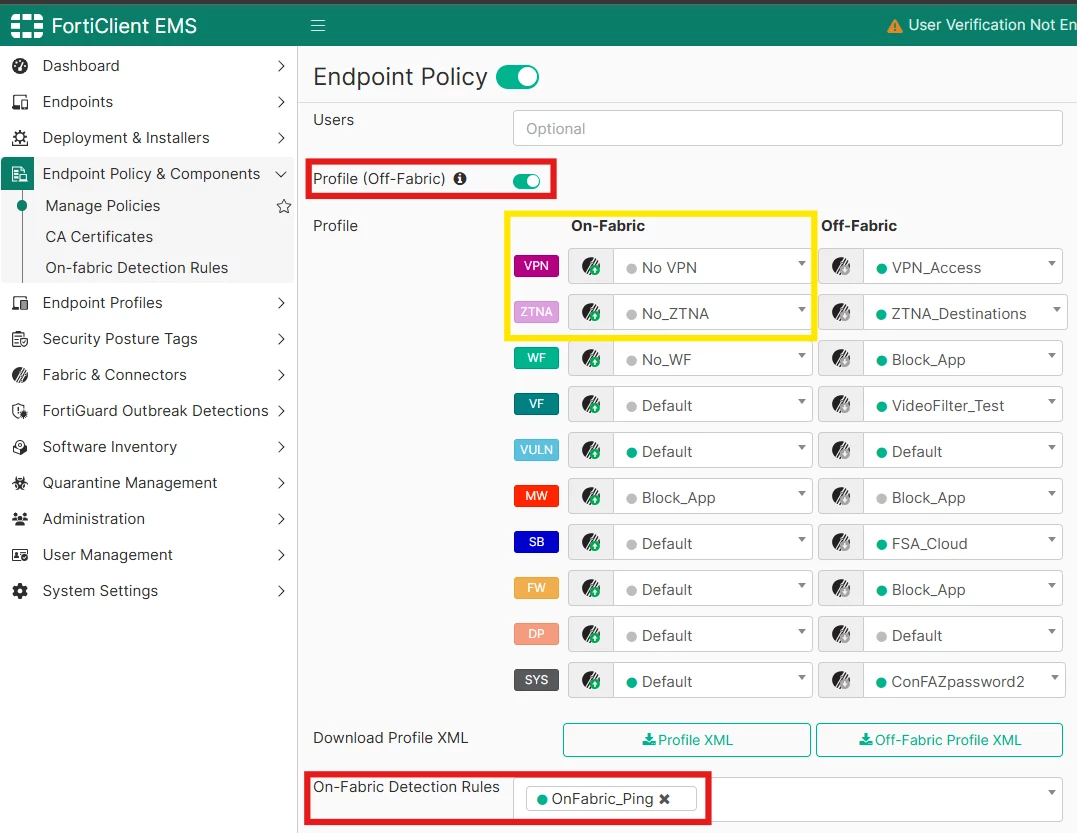

Finally, in Endpoint Policy & Components -> Manage Policies, create or select the policy, enable the Off-Fabric toggle, and then select the On-Fabric Detection Rule previously created.

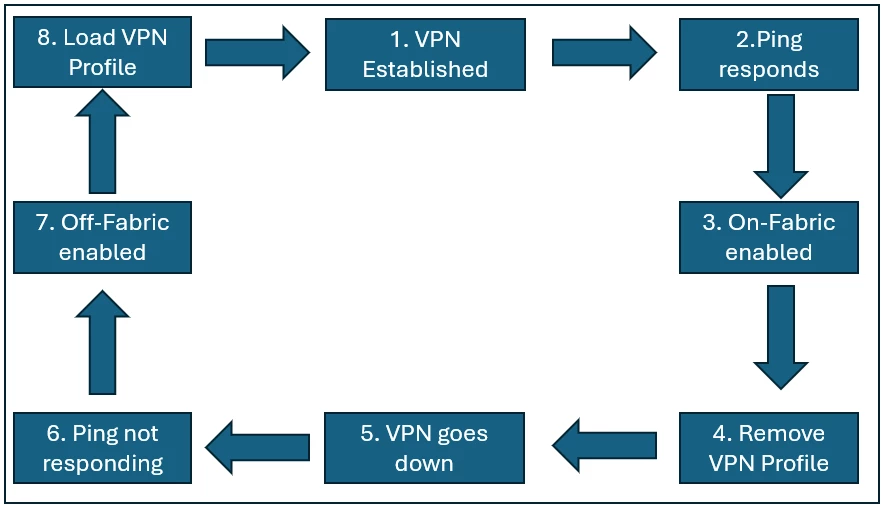

Important note: Avoid the detection Loop.

Based on the previous configuration example.

1. The endpoint is out of the corporate network, and the user connects to the VPN.
2. FortiGate's firewall policies allow ping communication from the VPN user to the server used in the On-Fabric detection rule, and then the ping starts to respond.
3. The On-Fabric Detection Rule result is True, and FortiClient enables On-Fabric Profile.
4. The Remote Access module is removed from FortiClient (yellow square).
5. May VPN goes down.
6. Ping probe stops responding.
7. The On-Fabric Detection Rule result is False, and the Off-Fabric Profile is enabled in FortiClient.
8. User reconnects to the VPN and so on.

If the On-Fabric detection Rule is based on a ping to an internal server, and if, when connecting a VPN, the ping begins to respond, the test result will be On-Fabric.

It is important to define whether the FortiClient VPN connection will be valid On-Fabric or if it will remain Off-Fabric.
