Troubleshooting Tip: GTP Error: response-hteid-doesnt-match-request

  • October 1, 2024
  • 0 replies
  • 442 views
Description

This article describes how to troubleshoot the error shown in GTP logs.

Scope FortiOS with FortiCarrier.
Solution
  • The error 'response-hteid-doesn’t-match-request' means the Tunnel Endpoint Identifier in the create session respond packet does not match the TEID key in the previous create session request packet.
  • This information can be checked by capturing the GTP packet going through FortiGate.

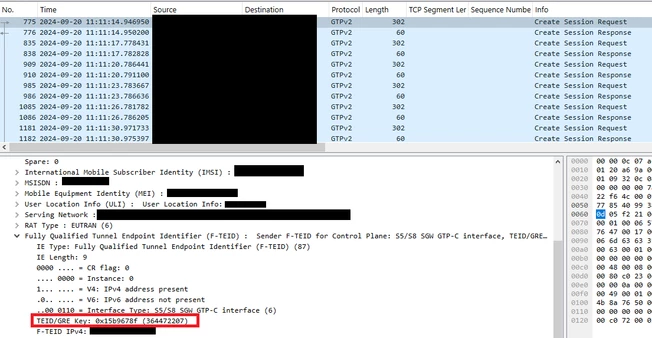

  • For example, below is the Create Session Request packet in Wireshark:

request packet.PNG



  • The TEID information can be found under the F-TEID field under the GPRS Tunneling Protocol header.
  • Here the TEID key value is 364472207.

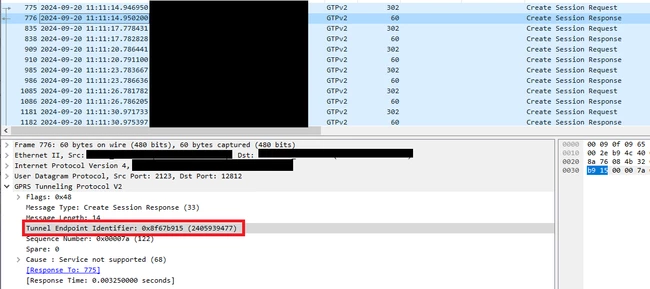

  • The example below shows the response packet:

respond packet.PNG



  • On the response packet, look for the value for the Tunnel Endpoint Identifier, which is 2405939477.
  • Hence, it does not match the value of the TEID key in the request packet and the error below will show in the GTP log:

    " dtlexp="response-hteid-doesnt-match-request"

  • To resolve this error, the endpoint device that sent the response needs to be checked and ensure the Tunnel Endpoint Identifier value matches the TEID key in the request packet.
