Technical Tip: How to regenerate the Fortinet_CA_SSLProxy CA certificate used for SSL inspection

Description

Solution

As of FortiCache v3.0.4, a new CLI command to regenerate the default SSL inspection CA certificate has been introduced. The following command must be executed to guarantee the uniqueness of the Fortinet_CA_SSLProxy CA certificate:

FortiCache # exec vpn certificate local generate default-ssl-ca

Once completed, it can be observed using the following commands that the default CA certificate has been regenerated:

FortiCache # config vpn certificate local

FortiCache (local) # edit Fortinet_CA_SSLProxy

FortiCache (Fortinet_CA_SSLProxy) # get

name                : Fortinet_CA_SSLProxy
password            : *
private-key         : *
certificate         :
    Subject:     C = U S, ST = California, L = Sunnyvale, O = Fortinet, OU = Certificate Authority, CN = FortiGate CA, emailAddress = support@fortinet.com
    Issuer:      C = US, ST = California, L = Sunnyvale, O = Fortinet, OU = Certificate Authority, CN = FortiGate CA, emailAddress = support@fortinet.com
    Valid from:  2015-06-16 12:26:20  GMT
    Valid to:    2025-06-16 12:26:20  GMT
    Fingerprint: 32:AC:D7:E2:9E:66:A4:A6:BE:85:0C:20:D0:A9:1E:EB
    Root CA:     Yes
    Version:     3
    Serial Num:
        3c:53:66:6f:87:4e:8f:76
    Extensions:
        Name:     X509v3 Basic Constraints
        Critical: no
        Content:
        CA:TRUE

Another solution is to configure FortiCache to import and use the customer's own CA certificate for SSL inspection. The configuration steps to import a CA certificate are available in the FortiCache administration guide in the Fortinet Document Library:

• FortiCache 3.0 Administration Guide



The selection of the appropriate CA certificate can be performed via GUI or using the following CLI commands:

Note: Multiple CA certificates can be configured - one per deep inspection profile:

config firewall deep-inspection-options

    edit "web"

        set caname

    next

end

The Fortinet_CA_SSLProxy certificate could be deployed in browsers to be detected as a trusted certificate authority.  It is exportable to a remote TFTP server using the following CLI command:

exec vpn certificate local export tftp Fortinet_CA_SSLProxy Fortinet_CA_SSLProxy.cer 192.168.1.1

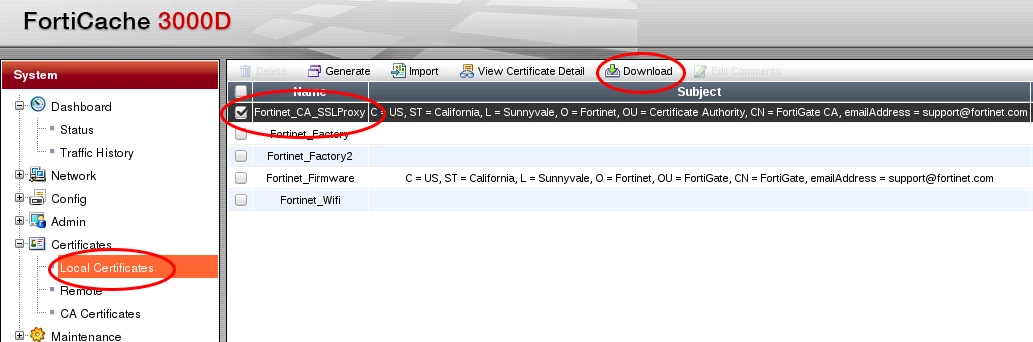

It is also exportable from the local certificates GUI menu:

The FortiCache CA certificate used for SSL inspection can be imported into any browser using the Fortinet_CA_SSLProxy.cer file. Upload instructions should be available in the browser help documentation.

Starting from FortiOS 5.4, the certificate 'Fortinet_CA_SSLProxy' was replaced with 'Fortinet_CA_SSL'.
