Troubleshooting Tip: FortiAuthenticator is not sending the 'Fortinet-Group-Name' AVP in the Radius Access-Accept message

Description

This article explains why FortiAuthenticator is not sending the 'Fortinet-Group-Name' AVP in the Radius Access-Accept message.

Scope

FortiAuthenticator v6.6.1.

Solution

 AVP.null

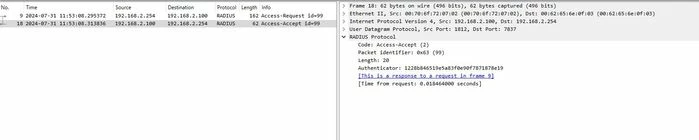

When capturing the Radius traffic between FortiAuthenticator and FortiGate, shown in the screenshot, FortiAuthenticator does not send 'Fortinet-Group-Name' AVP.

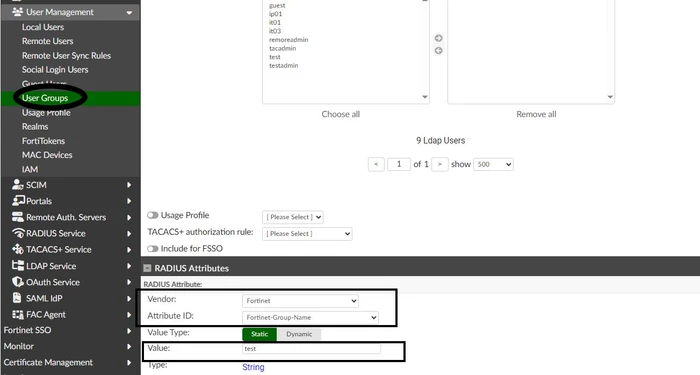

Radius attributes and user group settings are configured further on the FortiAuthenticator:

AVP.test

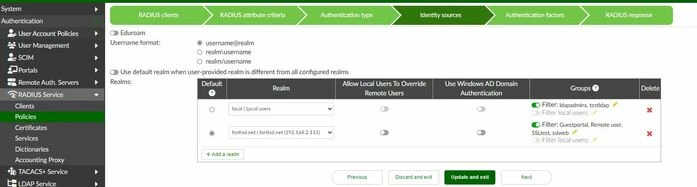

FortiGate as a Radius client is configured. In the Radius policy, the 'Identity source' LDAP server is defined. Additionally, enable 'Filter' and select a user group that was configured. For example: sslweb.

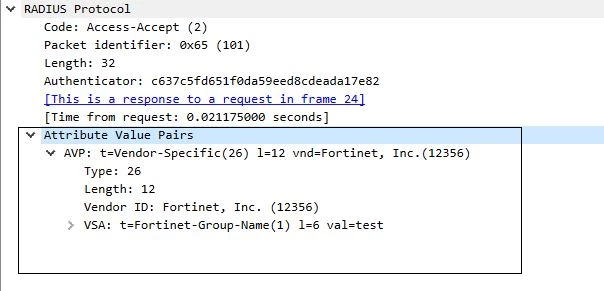

Now, in packet capture, 'Fortinet-Group-Name' AVP can be seen.

Related article:

Technical Tip: Radius authentication with FortiAuthenticator
