Troubleshooting Tip: FortiAuthenticator 802.1x EAP-TLS error 'certificate verify failed' due to empty subject
Description
This article describes steps to troubleshoot 802.1x, EAP-TLS certificate error caused by empty subject when FortiAuthenticator is used as the Radius Server.
Scope
FortiAuthenticator 6.6,8.0
Solution
Step 1:
- Navigate to https://FAC_IP/debug/ and to RADIUS Authentication -> Enter Debug Mode -> Enter detailed debug mode.
- Make a note of the exact username and timestamp of the issue.
Step 2:
- Download the logs to verify the results.
- The logs show up as below:
2026-02-10T15:19:45.950564+01:00 FAC01 radiusd[10665]: rlm_eap_tls: Certificate passed CRL check.
2026-02-10T15:19:45.950684+01:00 FAC01 radiusd[10665]: (1042) eap_tls: (TLS) Creating attributes from client certificate
2026-02-10T15:19:45.950702+01:00 FAC01 radiusd[10665]: (1042) eap_tls: TLS-Client-Cert-Serial := "000000000000"
[...]
2026-02-10T15:19:45.950746+01:00 FAC01 radiusd[10665]: (1042) eap_tls: TLS-Client-Cert-Subject-Alt-Name-Dns := "CLT.fortinet.training.lab"
2026-02-10T15:19:45.950778+01:00 FAC01 radiusd[10665]: (1042) eap_tls: TLS-Client-Cert-X509v3-Extended-Key-Usage += "TLS Web Server Authentication, 1.3.6.1.4.1.311.21.8.781199.15483521.279691.6037140.10025820.148.1072425.821865, TLS Web Client Authentication"
[...]
2026-02-10T15:19:45.950873+01:00 FAC01 radiusd[10665]: (1042) eap_tls: TLS-Client-Cert-X509v3-Extended-Key-Usage-OID += "1.2.4.5.6.7.8.9.1"
2026-02-10T15:19:45.950879+01:00 FAC01 radiusd[10665]: Certificate chain - 1 cert(s) untrusted
2026-02-10T15:19:45.950886+01:00 FAC01 radiusd[10665]: (TLS) untrusted certificate with depth [0] subject name
2026-02-10T15:19:45.950958+01:00 FAC01 radiusd[10665]: (1042) eap_tls: (TLS) send TLS 1.3 Alert, fatal internal_error
2026-02-10T15:19:45.950966+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: (TLS) Alert write:fatal:internal error
2026-02-10T15:19:45.950976+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: (TLS) Server : Error in error
2026-02-10T15:19:45.950994+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: (TLS) Failed reading from OpenSSL: error:0A000086:SSL routines::certificate verify failed
2026-02-10T15:19:45.951002+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: (TLS) System call (I/O) error (-1)
2026-02-10T15:19:45.951010+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: (TLS) EAP Receive handshake failed during operation
2026-02-10T15:19:45.951019+01:00 FAC01 radiusd[10665]: (1042) eap_tls: ERROR: [eaptls process] = fail
2026-02-10T15:19:45.951028+01:00 FAC01 radiusd[10665]: (1042) eap: ERROR: Failed continuing EAP TLS

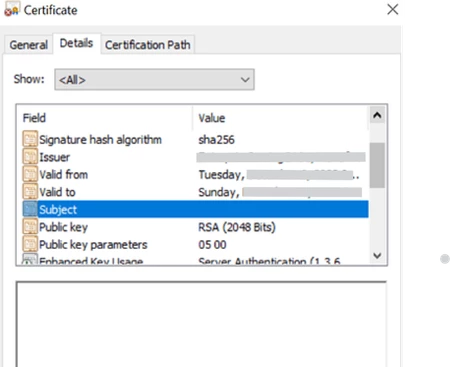

The above error suggests that the subject name is missing in the certificate, in particular no subject name is printed in this line: '(TLS) untrusted certificate with depth [0] subject name'.
Step 3:
- Verify the Client certificate.
- Check that SAN (Subject Alternative Name) and subject both have the proper values set in the client certificate.
- If the client certificate is missing either, a new client certificate with the fields set correctly must be issued and used instead.
- When using Microsoft AD CS or other Certificate Authorities, ensure the certificate template is configured to build the Subject Name from Active Directory information (specifically the Common Name).
