Technical Tip: Remote admin login with RADIUS selecting admin access account profile

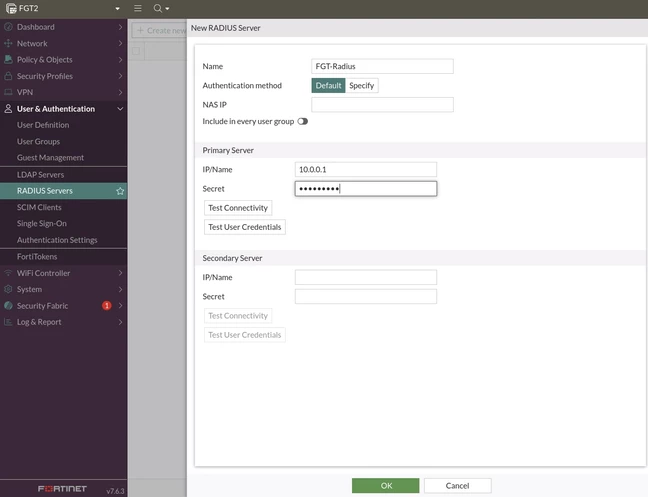

1. Configure the FortiGate with the RADIUS server.


Go to User & Authentication -> Radius Server.

Name: 'FGT-Radius'.
Primary Server IP/Name: 10.10.10.10.
Primary Server Secret: radius_secret.

Or run the equivalent in the CLI:

config user radius
    edit "FGT-Radius"
        set server 10.10.10.10
        set secret radius_secret
    next
end

Note:

The source IP address can optionally be set for the FortiGate to use when contacting the RADIUS server by using the following commands:

config user radius
    edit "FGT-Radius"
        set source-ip 192.168.1.99
    next
end

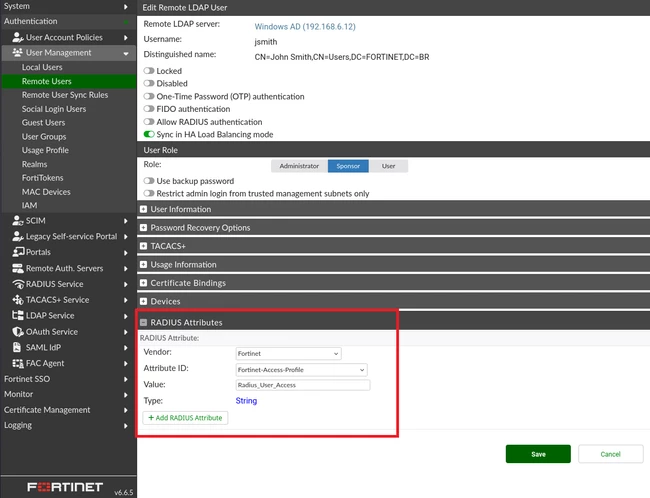

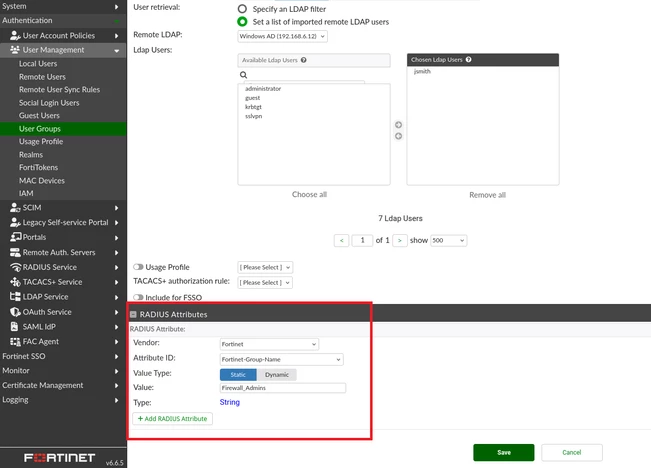

2. Configure the RADIUS server to send the appropriate vendor-specific attributes (VSAs).

In order to send an appropriate group membership and access profile, the following attributes will need to be set.

• Vendor: Fortinet.

• Attribute ID: Fortinet-Access-Profile.
• Attribute ID: Fortinet-Group-Name.

A list of all of Fortinet's VSA is available: Technical Tip: Fortinet's RADIUS Dictionary and VSAs (latest).

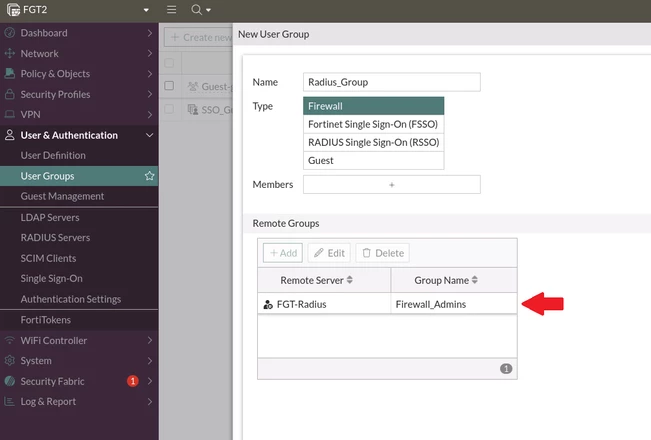

3. Create a user group on FortiGate.

Go to User & Authentication -> User Groups and create a Firewall group.

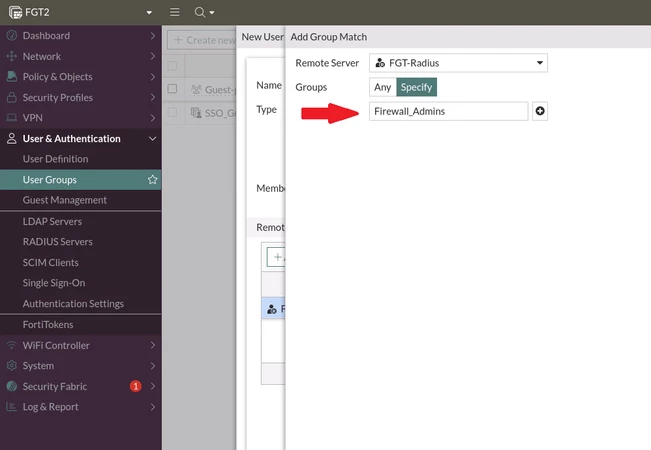

Create a New Remote Server and add the RADIUS server.

In the group's field, include the string 'Firewall_Admins'.

• Name: Radius_group.
• Remote Server: FGT-Radius.
• Groups: Firewall_Admins.

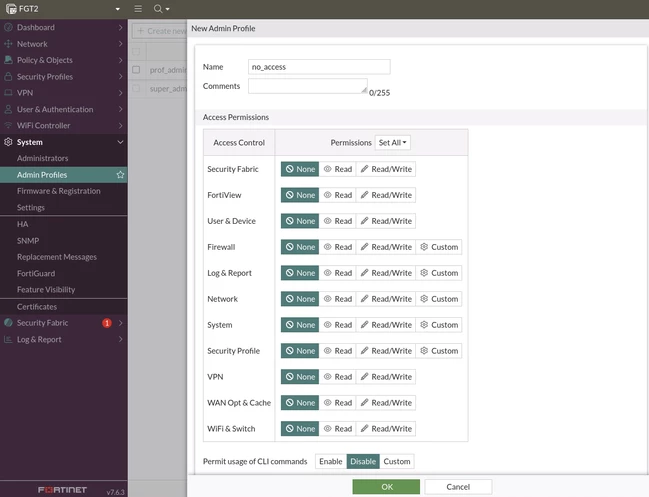

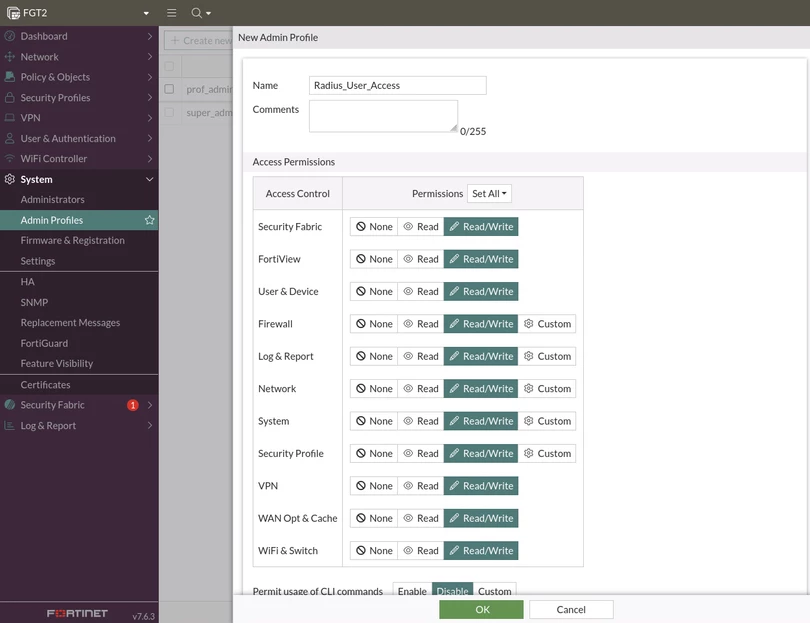

4. Create two admin profiles.

Go to System -> Admin Profiles and create 2 profiles:

First profile:

• Profile Name: no_access.
• Access Control: None.

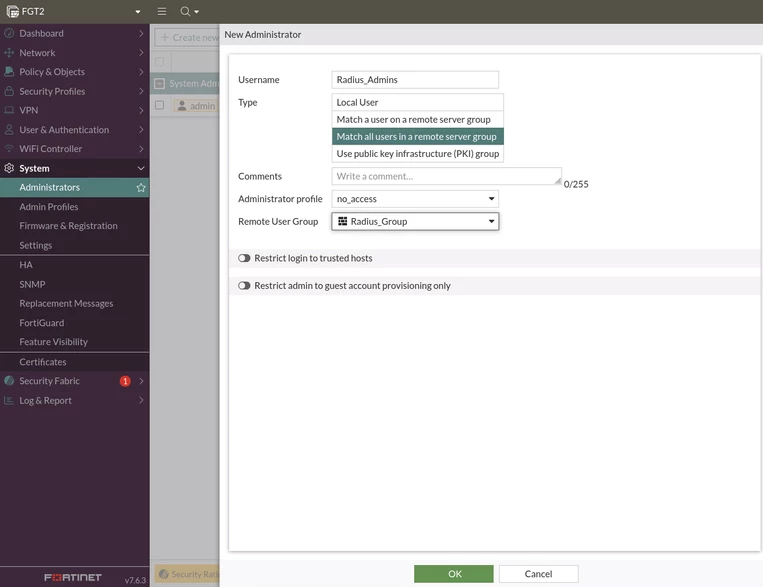

5. Create an admin user.

• Go to System -> Administrators.
• Create a new admin with the type 'Match all users in a remote server group'.
• Select the Remote User Group.
• Select the 'no_access' profile.

Then, run the following command in the CLI to allow the profile passed down by the RADIUS server to override the current 'no_access' profile:

config system admin
    edit "Radius_Admins"
        set remote-auth enable
        set accprofile "no_access"
        set vdom "root"
        set wildcard enable
        set remote-group "Radius_Group"
        set accprofile-override enable
    next
end

6. Log in to FortiGate using the new RADIUS user.











7. Troubleshooting steps if this does not work as expected:

If appropriate permissions are not received, run the following commands in the CLI:

diagnose debug app fnbamd -1
diagnose debug app radiusd -1
diagnose debug enable
diagnose test authserver radius <server_name> <chap | pap | mschap | mschap2> <username> <password>

A successful output will appear as follows:

[1932] handle_req-Rcvd auth req 7658224 for radius_admins in Radius_group opt=00014001 prot=11
[424] __compose_group_list_from_req-Group 'Radius_group', type 1
[617] fnbamd_pop3_start-radius_admins
[336] fnbamd_create_radius_socket-Opened radius socket 16
[336] fnbamd_create_radius_socket-Opened radius socket 17
[1372] fnbamd_radius_auth_send-Compose RADIUS request
[1332] fnbamd_rad_dns_cb-10.0.0.1->10.0.0.1
[1310] __fnbamd_rad_send-Sent radius req to server 'FGT-Radius': fd=16, IP=10.0.0.1(10.0.0.1:1812) code=1 id=113 len=125 user="radius_admins" using PAP
[313] radius_server_auth-Timer of rad 'FGT-Radius' is added
[743] auth_tac_plus_start-Didn't find tac_plus servers (0)
[481] ldap_start-Didn't find ldap servers
[591] create_auth_session-Total 1 server(s) to try
[1381] fnbamd_auth_handle_radius_result-Timer of rad 'FGT-Radius' is deleted
[1772] fnbamd_radius_auth_validate_pkt-RADIUS resp code 2
[354] extract_success_vsas-FORTINET attr, type 6, val Radius_User_Access
[320] extract_success_vsas-FORTINET attr, type 1, val Firewall_Admins
[1407] fnbamd_auth_handle_radius_result-->Result for radius svr 'FGT-Radius' 10.0.0.1(1) is 0
[1331] fnbamd_radius_group_match-Passed group matching
[1059] find_matched_usr_grps-Group 'Radius_group' passed group matching
[1060] find_matched_usr_grps-Add matched group 'Radius_group'(10)
[217] fnbamd_comm_send_result-Sending result 0 (nid 0) for req 7658224, len=2061
[747] destroy_auth_session-delete session 7658224
[2446] handle_req-Rcvd 7 req
[308] fnbamd_acct_start_START-Error getting radius server
[1469] create_acct_session-Error start acct type 7
[2460] handle_req-Error creating acct session 7

diagnose test authserver radius FGT-Radius pap radius_admins P@ssword123

authenticate 'radius_admins' against 'pap' succeeded, server=primary assigned_rad_session_id=7658226 assigned_admin_profile=Radius_User_Access session_timeout=0 secs idle_timeout=0 secs!
Group membership(s) - Firewall_Admins

Note: Use the below sniffer to verify Radius traffic is using the correct interface for the flow, if the RADIUS connection is down:

 diagnose sniffer packet any ' port 1812 or port 1813 ' 4 0 l
