Technical Tip: How to resolve the 'EAP authentication failed due to missing token' error when using EAP-TTLS /PAP + 2FA Authentication

Description

This article describes how to resolve the EAP authentication failed due to missing token error while using EAP-TTLS/PAP with two-factor authentication in FortiAuthenticator.

Scope

FortiAuthenticator v6.6.3+, FortiGate, FortiClient.

Solution

FortiClient added support for EAP-TTLS in IPsec VPN starting with version 7.4.3. FortiAuthenticator, as a RADIUS server, supports EAP-TTLS with PAP when using an IPsec IKEv2 tunnel.



  1. Enabling EAP-TTLS (EMS-Managed FortiClients).

The FortiClient documentation provides instructions on enabling EAP-TTLS support for EMS-managed FortiClients: EAP-TTLS support for IPsec VPN.



  1. Enabling EAP-TTLS (Unlicensed FortiClients).

For unlicensed (VPN-only) FortiClients, EAP-TTLS can be enabled by manually editing the configuration file.

Technical Tip: How to enable EAP-TTLS for IPSec IKEv2 tunnels in VPN-only (unlicensed) FortiClient.



Note that EAP-TTLS MFA support for LDAP users requires the following minimum firmware versions:

  • FortiOS v7.4.9, v7.6.1.

  • FortiClient Windows v7.4.4. Note that the VPN-only free version of FortiClient Windows does not have a v7.4.4 release. See Special notices.


  1. FortiAuthenticator configuration.

On FortiAuthenticator, allowed EAP types are configured under:

Authentication -> RADIUS Service -> Policies.



For more details, refer to:

RADIUS Policies



Important:

When using FortiAuthenticator as a RADIUS server, the EAP-TTLS authentication tunnel from FortiClient terminates on FortiAuthenticator, not on FortiOS.



For additional technical details, see: Technical Tip: FortiOS IKEv2 EAP user authentication operation.



However, when using EAP-TTLS/PAP with two-factor authentication and FortiAuthenticator as the RADIUS server, the error EAP authentication failed due to missing token may appear in the FortiAuthenticator RADIUS logs.
For example:



(23) facauth: wad authenticate binding successful
(23) facauth: Remote LDAP user password authenticated
(23) facauth: Updated auth log 'abc@support' for attempt from 10.10.10.10~11.11.11.100: Remote LDAP administrator authentication partially done, expecting FortiToken
(23) facauth: EAP authentication failed due to missing token.
(23) # Executing group from file /usr/etc/raddb/sites-enabled/inner-tunnel
(23) } # server inner-tunnel
(23) Virtual server sending reply
(23) Message-Authenticator := 0x00
(23) eap_ttls: Got tunneled Access-Reject
(23) # Executing group from file /usr/etc/raddb/sites-enabled/default
(23) facauth: Updated auth log 'abc@support' for attempt from 10.10.10.10: 802.1x authentication failed


The two lines of interest in the output are:

(23) facauth: Updated auth log 'abc@support' for attempt from 10.10.10.10~11.11.11.100: Remote LDAP administrator authentication partially done, expecting FortiToken (23) facauth: EAP authentication failed due to missing token.

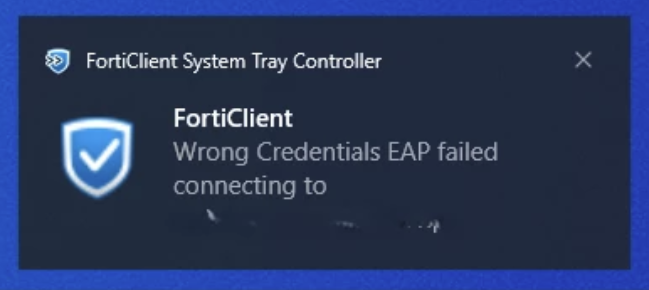

Additionally, no token prompt is displayed in FortiClient during the authentication process, and the authentication attempt fails with the following error message:




As of November 2025, no version of FortiAuthenticator supports challenge-based EAP-TTLS two-factor authentication (2FA).



As a workaround, users must use a concatenation token for EAP-TTLS 2FA, which combines the password and token. For example: p@ssw0rd345678.


Note: From FortiAuthenticator version 8.0.4, this behavior should not be followed, and using a token in the same field as the password is no longer necessary.


In summary, if an LDAP user has 2FA enabled on FortiAuthenticator and is connecting to an IKEv2 VPN, they must:

  • Enter the username in the Username field.

  • Enter the password + token in the Password field (from version 8.0.4, this is not necessary).



Note: Since an email or SMS token can only be received after entering the username and password, token concatenation for EAP-TTLS does not work with SMS or Email as a two-factor method. This also applies to FortiIdentity Cloud (formerly FortiTokenCloud) if it uses SMS or Email for 2FA.
