Technical Tip: FortiAuthenticator swap memory in use, symptoms and solutions

If these symptoms are experienced, run the following CLI command to check memory usage:

get hard mem

Look for this section in the output:

...

### Memory info
MemTotal: 2029704 kB
MemFree: 246556 kB
MemAvailable: 618012 kB
...
Mlocked: 0 kB
SwapTotal: 1048572 kB
SwapFree: 948572 kB
Dirty: 16 kB
...

If SwapFree ≠ SwapTotal, swap memory is in use.

If SwapFree = SwapTotal, the issue may not be memory-related.

The following steps help identify the cause and resolve the issue.

1. FortiAuthenticator does not have enough memory.

Version 6.4 requires at least 2 GB RAM for 1–500 users.

Versions 6.5 and 6.6 require at least 4 GB RAM for 1–500 users.

Higher license tiers require more memory. Check the FortiAuthenticator-VM sizing guide.

Allocating the correct resources should resolve the issue.

2. Memory Leak. If the system meets the required specs but still experiences issues, check the kernel log:

https://<FortiAuthenticatorIp>/debug/kernlog

Look for messages indicating memory-related crashes, such as:

Example 1: Segmentation Fault (Segfault):

2025-03-24T21:34:15.249194+01:00 fortiauth kernel: [28995.800096] wmid[28977]: segfault at 0 ip 00007f7eec3c2618 sp 00007ffd57fe6988 error 4 in libc.so.6[7f7eec281000+155000]

Example 2: Out of Memory ( oom-kill or oom_kill ) :

2024-10-17T15:05:59.739590+02:00 FortiAuthenticator kernel: [15576.788064] Out of memory: Killed process 6063 (httpd) total-vm:2042176kB, anon-rss:945536kB, file-rss:0kB, shmem-rss:0kB, UID:33 tables:3608kB oom_score_adj:0

If a memory leak is detected:

Rebooting will temporarily restore functionality, but the issue will return.

Check FortiAuthenticator OS release notes for known/fixed memory issues.

Upgrade the FortiAuthenticator OS if a fix is available.

If the issue persists after upgrading, open a TAC case with:

• The output of 'get hard mem'.
• Kernlog output.

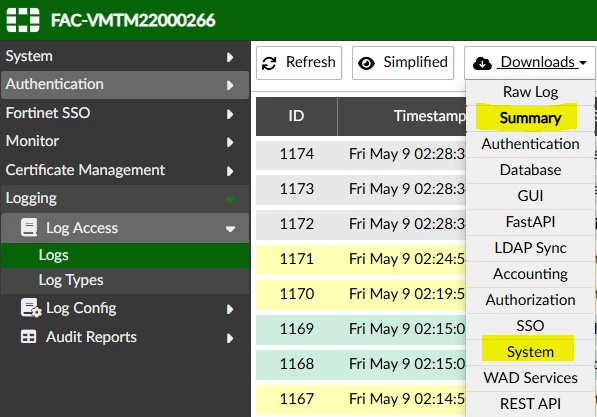

• Debug reports: GUI -> Logging -> Log Access -> Logs -> Downloads -> Summary or System.

3. High Load from Unusual Activity or Brute Force Attacks.

If there are no indications of a memory leak, check raw logs for unusual authentication attempts: go to GUI -> Log Access -> Logs.

Run a quick search for:

'Authentication' -> Lists successful and failed attempts.

'Invalid' -> Shows failed login attempts with invalid usernames.

If login attempts are unexpectedly high, a brute force attack might exhaust memory.

Some quick-to-employ measures are:

• FortiGate automation stitches.
• Login-block policies.
• Geofencing.
