Technical Tip: FortiAuthenticator realm based authentication

Description

This article describes how users can authenticate with 'user@domain-name' as the username on a FortiAuthenticator.

Scope

Any supported version of FortiAuthenticator.

Solution

The objective in this example is to authenticate user 'administrator' against the domain 'forti.lab'.

The username is 'administrator@forti.lab'.

1. Create a realm. The realm should match the exact name of the domain. Select the LDAP server as the source. In this case, 'forti.lab' is used.

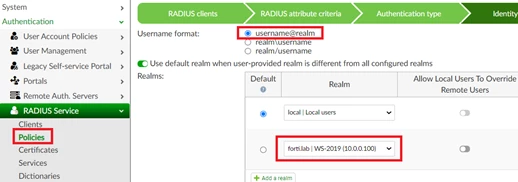

1. Create a RADIUS client here, FortiGate/NAS is used as a radius client on FortiAuthenticator, and the realm is selected as the option for the authentication source.

   Note: The default is still left with FortiAuthenticator local DB.

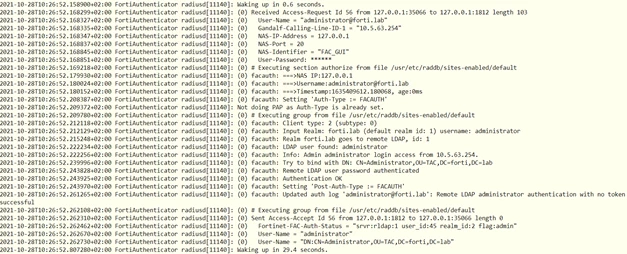

Using RADIUS debugging, it is possible to verify the authentication.
