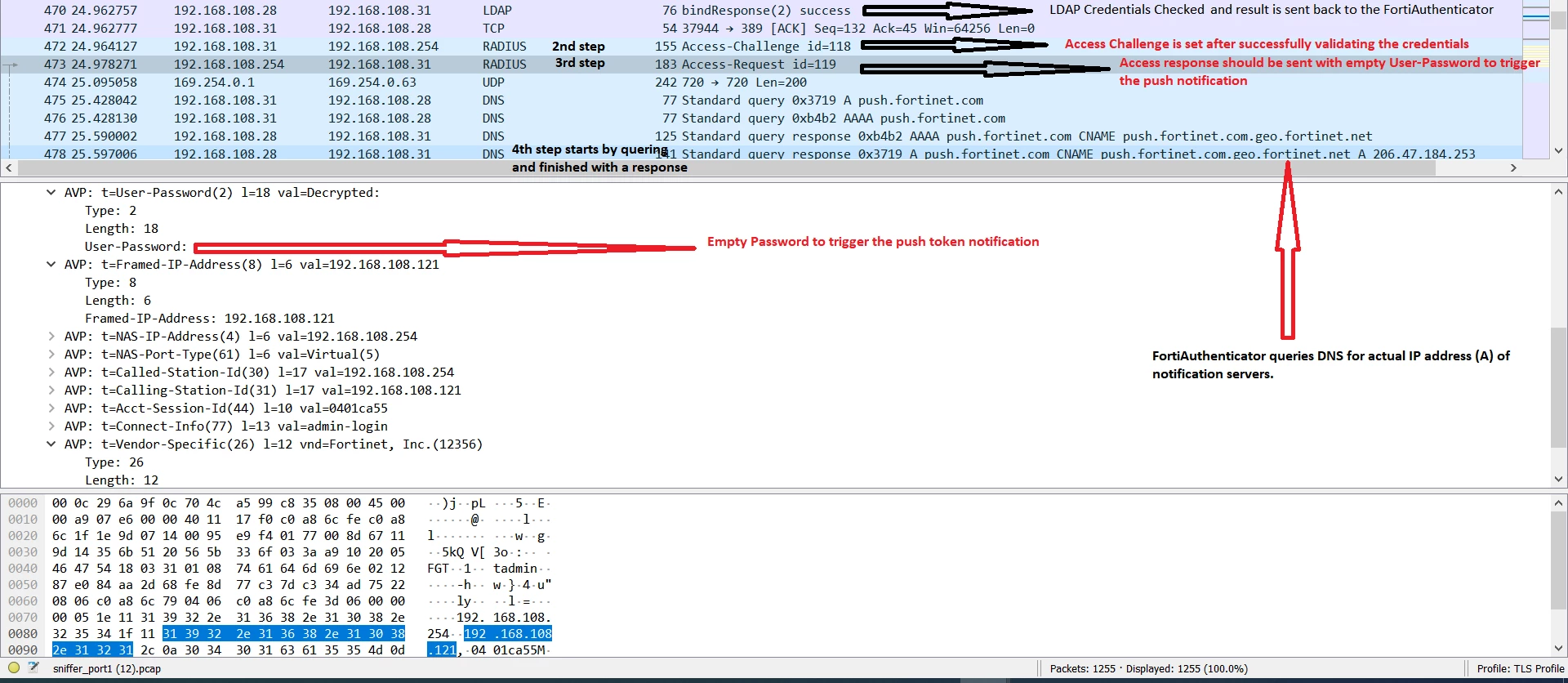

FortiGate first forwards the user credentials in the Access-Request packet to the FortiAuthenticator server. FortiAuthenticator server responds with Access-Challenge and a Reply-Message = 'Enter token code or no code to send a notification to your FortiToken Mobile'. Â FortiGate responds with an Access-Request, but with an empty password and no token.

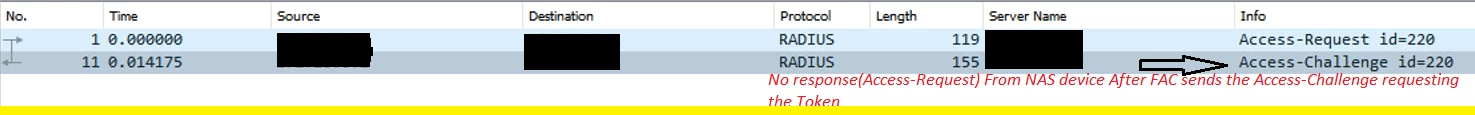

 Important note: If the 'NAS' device (Router/Firewall…) does not respond to this Access-Challenge sent by FortiAuthenticator, that indicates that the device does not support 2FA push notification (if it is a 3rd party device, then you need to consult it with the other vendor).  Example below for illustration:
 Â FortiAuthenticator sends DNS queries to 'push.fortinet.com'Â to look up the actual IP address (A) of notification servers (for illustration, check the screenshot below).
 Â FortiAuthenticator then contacts the first IP on the list and starts a TLS handshake with the selected server. An encrypted communication, signed by certificates, is then established between them. Notification data is sent to the respective Apple/Android notification server, containing details about the recipient (particular mobile device), timestamp, session_id, etc.
This is trackable in FortiAuthenticator -> debug -> push-service-worker -> debug output.  2021-07-22T13:41:28.628819+02:00 FAC pushd[1267]: MAIN: #012Stats:#011 workers=1#011 quest=0#012#011Worker[139952154474240] worked on last quest at 2021-07-22 11:03:16.308986
2021-07-22T13:48:27.753136+02:00 FAC pushd[1267]: MAIN: Accepted client connection from [('127.0.0.1', 36090)]
2021-07-22T13:48:27.761856+02:00 FAC pushd[1267]: Broker: Deliver push task to job queue. At position[1]
2021-07-22T13:48:28.198554+02:00 FAC pushd[1267]: Worker[139952154474240]: This registration ID has been found locally [4c20b0d03e50edc]
2021-07-22T13:48:29.467578+02:00 FAC pushd[1267]: Worker[139952154474240]: Sending push message[9e270504412d414fa47c1dfaeea0c052] to User[tokenuser1] with FTM2[FTKMOB*********] with device token[4c20bccf751d4c]...
2021-07-22T13:48:29.470556+02:00 FAC pushd[1267]: Worker[139952154474240]: Pushed 9e27050- tadmin to remote server.
2021-07-22T13:48:31.177488+02:00 FAC pushd[1267]: MAIN: Accepted client connection from [('127.0.0.1', 36100)]
2021-07-22T13:48:31.178063+02:00 FAC pushd[1267]: Broker: Valid login attempt[b'9e2d414fac].
 As mentioned, this data is TLS-encrypted, signed, and sent to the Apple/Android notification service, which then, in return, sends a notification message to the specified mobile device.  The mobile phone is an Apple device in this case, which is why the DNS query toward push-apple.com is seen; it is wanted to capture the WAN traffic on FortiGate.    The FortiToken Mobile app is then used to process notifications and shows a pop-up with login details. Then, the OTP token or the Approve/Deny response is sent securely in the background from the mobile app to FortiAuthenticator. When a response from the FortiToken Mobile app is received, RADIUS Access-Accept (Approve) or Access-Reject (Deny) is sent from FortiAuthenticator to the RADIUS Client.
 For 3rd party integrations, there is the possibility of triggering push without RADIUS challenge: Policies. It may be visible in debug output that the challenge response is sent, but no response is received. This is because the 3rd party devices might not respond to RADIUS challenge requests.
2026-07-23T14:10:36.305142+00:00 FortiAuthenticator radiusd[23221]: (1) Sent Access-Challenge Id 71 from 10.10.10.1:1812 to 10.10.10.2:12565 length 92
2026-07-23T14:10:36.305148+00:00 FortiAuthenticator radiusd[23221]: (1) Message-Authenticator := 0x00
2026-07-23T14:10:36.305152+00:00 FortiAuthenticator radiusd[23221]: (1) Reply-Message = "-Please enter your token code"
2026-07-23T14:10:36.305158+00:00 FortiAuthenticator radiusd[23221]: (1) Fortinet-FAC-Challenge-Code = "001"
2026-07-23T14:10:36.305162+00:00 FortiAuthenticator radiusd[23221]: (1) State = 0x30303030303030303031

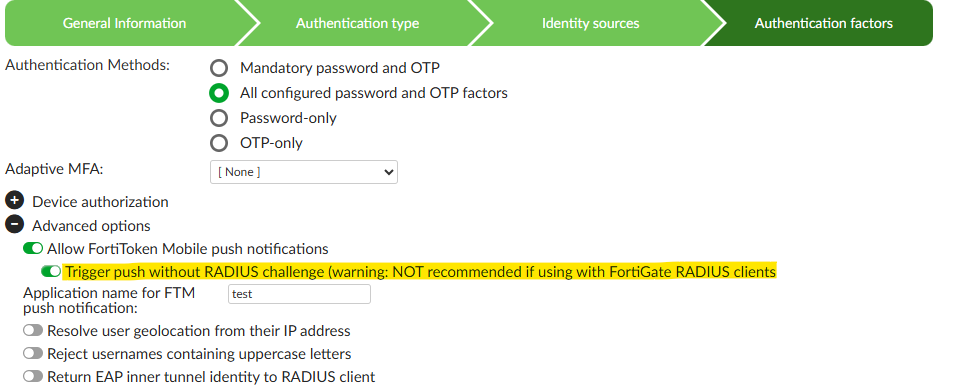

The highlighted setting can be enabled in the RADIUS policy if the FortiAuthenticator version is before v6.x.
From v8.x, the same setting is found in Radius Service -> Auth Profiles.
 Â Notes: 'Trigger push without RADIUS challenge' is not recommended if using FortiGate Radius client. push-service-worker -> Debug output logs regarding push notifications for mobile FortiToken and push services were removed from the 6.5.x version.
