Technical Tip: FortiAuthenticator does not sync the LDAP Tree in Load Balancing mode
| Description | This article describes why the LDAP Tree does not sync between the FortiAuthenticator nodes configured in Load Balancing mode. |
| Scope | FortiAuthenticator. |
| Solution | FortiAuthenticator can be configured in two different clustering modes:
The images below show the results of the FortiAuthenticator configured in Load-Balancing mode, and the LDAP Tree not syncing between them.

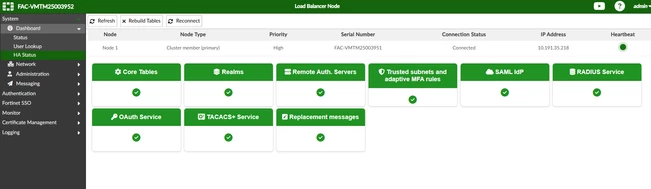

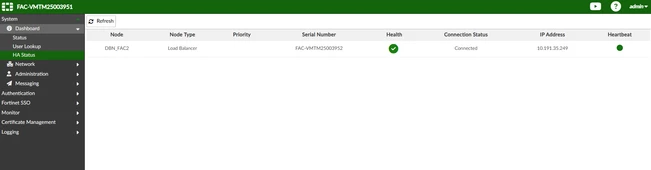

Status of HA:

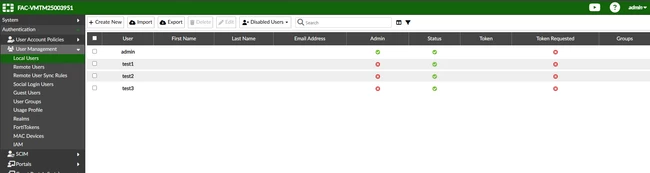

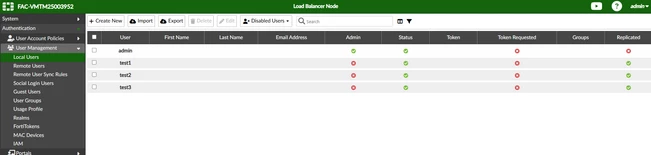

User info synced between the devices.

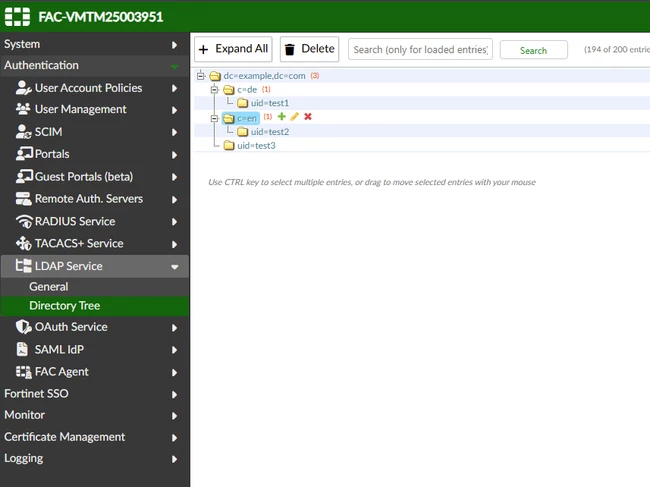

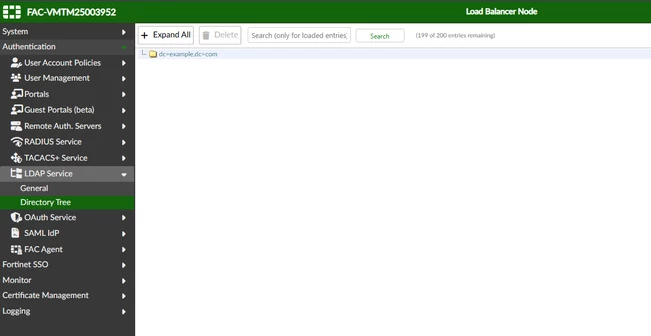

The LDAP tree shows only on the (standalone) primary device, not on the load-balancing node:
This is an expected behavior since the LDAP Tree and related settings are not synced in a load-balancing setup. |
