Technical Tip: cURL syntax on FortiAuthenticator API

Description

Scope

Solution

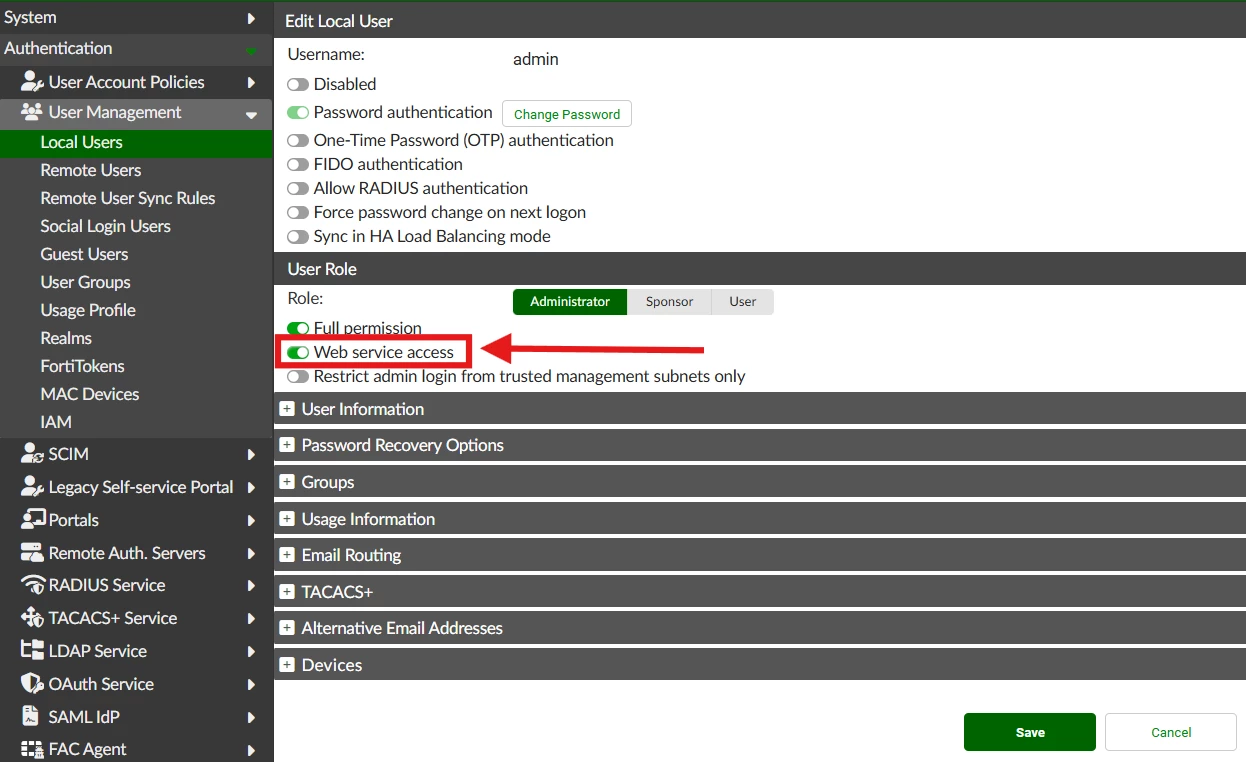

To use the API, an admin user must be created with web service access enabled, as shown in the following screenshot. A valid email address must be provided under the User Information section as it will receive the secret key needed to be used in the cURL server connection.

 

The cURL program for the appropriate platform can be downloaded from http://curl.haxx.se/download.html

The cURL syntax is as follows:

1. List the existing LDAP user information.

curl -k -v -u "szadmin:ytYq8QwNPhpNlPJqAPIeGVBB0xQsFkaau80WW4Xy" https://10.129.0.60/api/v1/localusers/?username=<ldapusername>

The following output will be displayed:

< HTTP/1.1 200 OK
< Date: Sun, 13 Dec 2015 09:28:58 GMT
< Server: Apache
< Vary: Accept,Accept-Language,Cookie
< X-Frame-Options: SAMEORIGIN
< Content-Language: en
< Cache-Control: no-cache
< Transfer-Encoding: chunked
< Content-Type: application/json
<
{"meta": {"limit": 20, "next": null, "offset": 0, "previous": null, "total_count": 1}, "objects": [{"active": true, "dn": "CN=stan,CN=Users,DC=sz,DC=com,DC=local", "email": "", "first_name": "stan", "ftm_act_method": "email", "id": 3, "last_name": "", "mobile_number": "", "resource_uri": "/api/v1/ldapusers/3/", "server_address": "10.129.0.50", "server_name": "SZ_AD","token_auth": false, "token_serial": "", "token_type": "", "username": "stan"}

2. Run the following command to assign an available Token to user ID = 3, together with the email address. An email address is needed when assigning Token, as it will send the information required to register the mobile token:

curl -k -v -u "szadmin:ytYq8QwNPhpNlPJqAPIeGVBB0xQsFkaau80WW4Xy" -X PATCH -d {\"token_auth\":\"true\",\"token_type\":\"ftm\",\"email\":\"test@abc.com\"} -H "Content-Type: application/json" https://10.129.0.60/api/v1/ldapusers/3/

Note:

Replace the ID '3”' without the bracket, with the correct ID from the user listing.  For example: https://10.129.0.60/api/v1/ldapusers/<3>/
